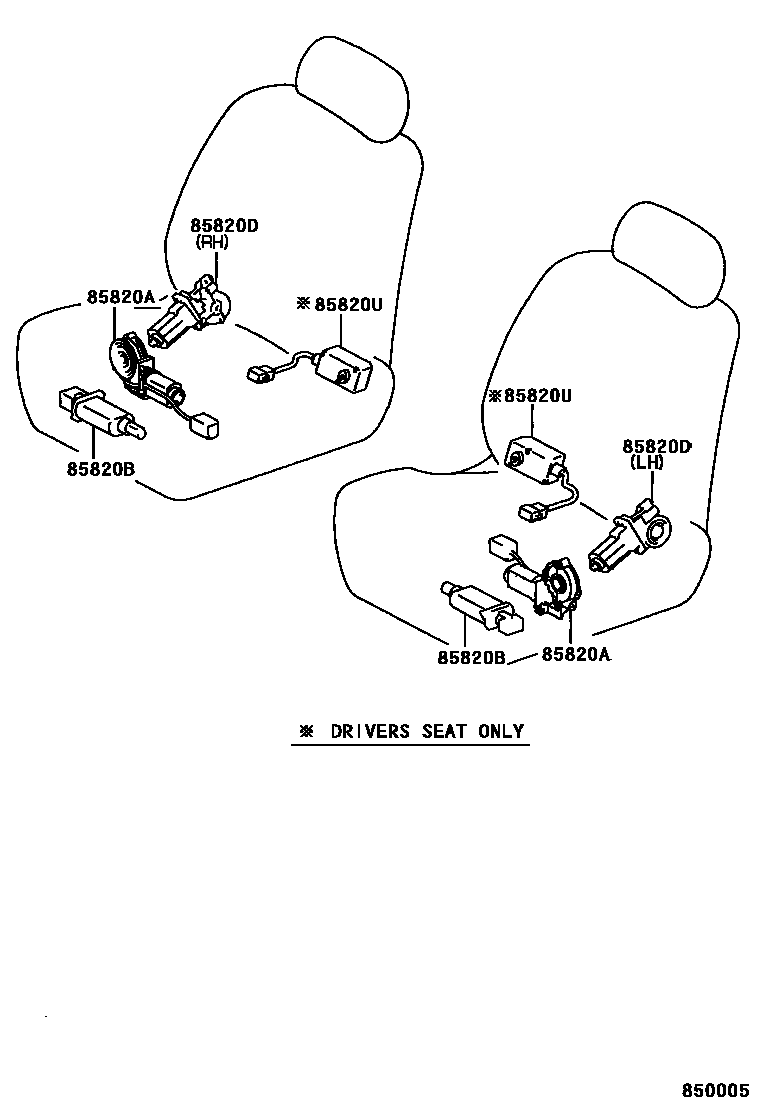

SEAT MOTOR & SEAT HEATER

85820AMOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)

main85820-60070iKZJ95,VZJ95..RHD199604-199906

main85820-60080iKZJ95,VZJ95..LHD199604-199906

85820BMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)

main85820-35020iKZJ95,VZJ95199604-199906

85820DMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING)

main85820-60090iKZJ95,VZJ95199604-199906

RH

main85820-60100iKDJ95,KZJ95,VZJ95199906-200209

LH

85820UMOTOR ASSY, POWER SEAT(FOR LUMBAR SUPPORT)

main85820-60110iKDJ95,KZJ95,VZJ95199906-200209

4 parts on this diagram · 1 diagram in section
