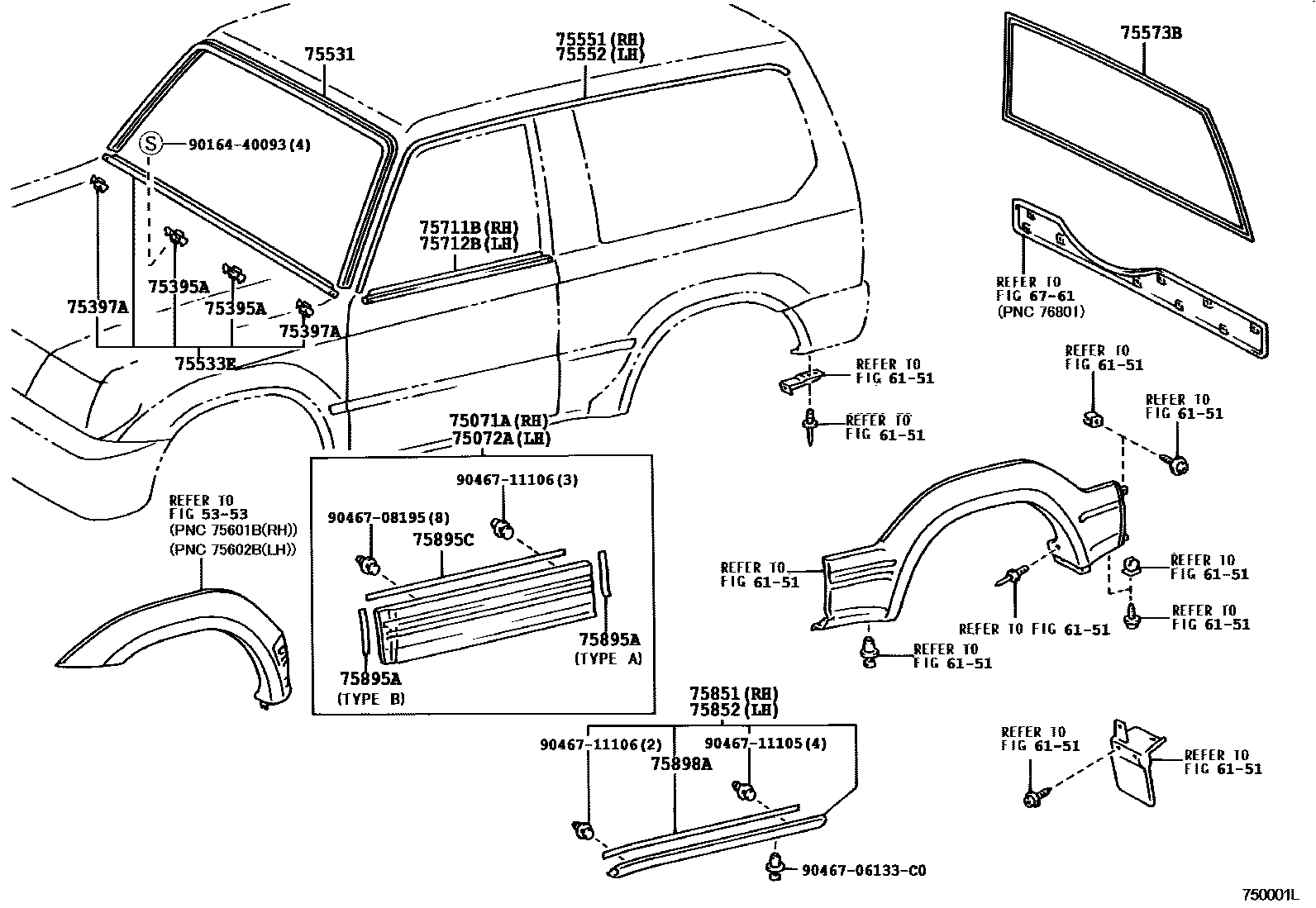

MOULDING

0001 1 0002 1

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

6151SIDE MEMBER

→ Go to FIG 61-51

6761BACK DOOR PANEL & GLASS

→ Go to FIG 67-61

75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH

main75071-60010-A0iKZJ9#,VZJ9#199604-199801

SILVER ME.,K01 ,K10

main75071-60010-B0iKZJ9#,VZJ9#199906-199911

GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9

main75071-60010-B1iKDJ9#,KZJ9#,VZJ9#199906-200209

SILVER ME.,K72 ,K73

main75071-60010-B2iKDJ9#,KZJ9#,VZJ9#200008-200112

GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8

main75071-60010-E0iKZJ9#,VZJ9#199808-199906

LT. GRAYISH BEIGE ME,K75 ,K78

main75071-60010-E1iKDJ9#,KZJ9#,VZJ9#199911-200209

LT.GRAYISH BEIGE ME.,K75 ,K78

main75071-60010-G0iKZJ9#,VZJ9#199801-199906

DK. GREEN MC.,K79

75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH

main75072-60010-A0iKZJ9#,VZJ9#199604-199801

SILVER ME.,K01 ,K10

main75072-60010-B0iKZJ9#,VZJ9#199604-199801

GRAY ME.,K03 ,K04 ,K06 ,K08 ,K12 ,K14

main75072-60010-B1iKDJ9#,KZJ9#,VZJ9#199906-200209

SILVER ME.,K72 ,K73

main75072-60010-B2iKDJ9#,KZJ9#,VZJ9#200008-200112

GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8

main75072-60010-E0iKZJ9#,VZJ9#199906-199911

LT. GRAYISH BEIGE ME,K75 ,K78

main75072-60010-E1iKDJ9#,KZJ9#,VZJ9#199911-200209

LT.GRAYISH BEIGE ME.,K75 ,K78

main75072-60010-G0iKDJ9#,KZJ9#,VZJ9#199906-200209

DK. GREEN MC.,K79

75395ACLIP, OUTSIDE MOULDING, NO.1

main75395-60020iKZJ9#,VZJ9#199604-199906

LH

main75396-60020iKZJ9#,VZJ9#199604-199906

RH

75397ACLIP, OUTSIDE MOULDING, NO.3

main75397-60020iKZJ9#,VZJ9#199604-199906

LH

main75398-60010iKZJ9#,VZJ9#199604-199906

RH

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-60010iKDJ9#,KZJ9#,VZJ9#199906-200209

75533EMOULDING, WINDSHIELD, OUTSIDE

main75533-60020iKZJ9#,VZJ9#199604-199906

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-60040iKDJ95,KZJ95,VZJ95199906-200209

main75551-60050iKDJ90,KZJ90,VZJ90199906-200209

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-60040iKDJ95,KZJ95,VZJ95199906-200209

main75552-60050iKZJ90,VZJ90199604-199906

75573BMOULDING, BACK WINDOW, OUTSIDE

main75573-60010iKZJ9#,VZJ9#199604-199801

main75573-60040iKZJ9#,VZJ9#199906-199909

main75573-60041iKDJ9#,KZJ9#,VZJ9#199909-200209

75711BMOULDING, FRONT DOOR BELT, RH

main75711-60030iKZJ9#,VZJ9#199604-199906

75712BMOULDING, FRONT DOOR BELT, LH

main75712-60030iKZJ9#,VZJ9#199604-199906

75851MOULDING, ROCKER PANEL, RH

main75805-60010-A0iKZJ95,VZJ95199604-199801

SILVER ME.,K01 ,K10

main75805-60010-B0iKZJ95,VZJ95199604-199801

GRAY ME.,K03 ,K04 ,K06 ,K08 ,K12 ,K14

main75805-60010-B1iKDJ95,KZJ95,VZJ95199906-200209

SILVER ME.,K72 ,K73

main75805-60010-B2iKZJ95,VZJ95199911-200008

GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9

main75805-60010-E0iKZJ95,VZJ95199801-199808

LT. GRAYISH BEIGE ME,K75

main75805-60010-E1iKDJ95,KZJ95,VZJ95199911-200209

LT.GRAYISH BEIGE ME.,K75 ,K78

main75805-60010-G0iKDJ95,KZJ95,VZJ95199906-200209

DK. GREEN MC.,K79

main75805-60020-A0iKZJ90,VZJ90199604-199801

SILVER ME.,K01 ,K10

main75805-60020-B0iKZJ90,VZJ90199801-199906

GRAY ME.,K04 ,K08 ,K14 ,K74 ,K76 ,K80

main75805-60020-B1iKZJ90,VZJ90199801-199906

SILVER ME.,K72 ,K73 ,K81

main75805-60020-B2iKZJ90,VZJ90200002-200008

GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9

main75805-60020-E0iKZJ90,VZJ90199801-199808

LT. GRAYISH BEIGE ME,K75

main75805-60020-E1iKDJ90,KZJ90,VZJ90200002-200209

LT.GRAYISH BEIGE ME.,K75 ,K78

main75805-60020-G0iKDJ90,KZJ90,VZJ90199906-200209

DK. GREEN MC.,K79

75852MOULDING, ROCKER PANEL, LH

main75806-60010-A0iKZJ95,VZJ95199604-199801

SILVER ME.,K01 ,K10

main75806-60010-B0iKZJ95,VZJ95199604-199801

GRAY ME.,K03 ,K04 ,K06 ,K08 ,K12 ,K14

main75806-60010-B1iKDJ95,KZJ95,VZJ95199906-200209

SILVER ME.,K72 ,K73

main75806-60010-B2iKZJ95,VZJ95199911-200008

GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9

main75806-60010-E0iKZJ95,VZJ95199808-199906

LT. GRAYISH BEIGE ME,K75 ,K78

main75806-60010-E1iKDJ95,KZJ95,VZJ95199911-200209

LT.GRAYISH BEIGE ME.,K75 ,K78

main75806-60010-G0iKDJ95,KZJ95,VZJ95199906-200209

DK. GREEN MC.,K79

main75806-60020-A0iKZJ90,VZJ90199604-199801

SILVER ME.,K01 ,K10

main75806-60020-B0iKZJ90,VZJ90199604-199801

GRAY ME.,K03 ,K04 ,K06 ,K08 ,K12 ,K14

main75806-60020-B1iKZJ90,VZJ90199801-199906

SILVER ME.,K72 ,K73 ,K81

main75806-60020-B2iKZJ90,VZJ90200002-200008

GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9

main75806-60020-E0iKZJ90,VZJ90199906-200002

LT. GRAYISH BEIGE ME,K75 ,K78

main75806-60020-E1iKDJ90,KZJ90,VZJ90200002-200209

LT.GRAYISH BEIGE ME.,K75 ,K78

main75806-60020-G0iKDJ90,KZJ90,VZJ90199906-200209

DK. GREEN MC.,K79

75895ATAPE, MOULDING, NO.1

main75885-60010×2iKZJ9#,VZJ9#199804-199906

TYPE A

main75885-60030×2iKDJ9#,KZJ9#,VZJ9#200110-200209

TYPE A

main75895-60010×4iKZJ90,VZJ90; KZJ95,VZJ95199804-199906

TYPE B

75895CTAPE, MOULDING, NO.3

main75895-60030×2iKZJ9#,VZJ9#199604-199906

75898ATAPE, MOULDING, NO.4

main75897-60030×2iKZJ90,VZJ90199604-199906

9016440093

main90164-40093

9046706133C0

main90467-06133C0

9046708195

main90467-08195

9046711105

main90467-11105

9046711106

main90467-11106

24 parts on this diagram · 2 diagrams in section
