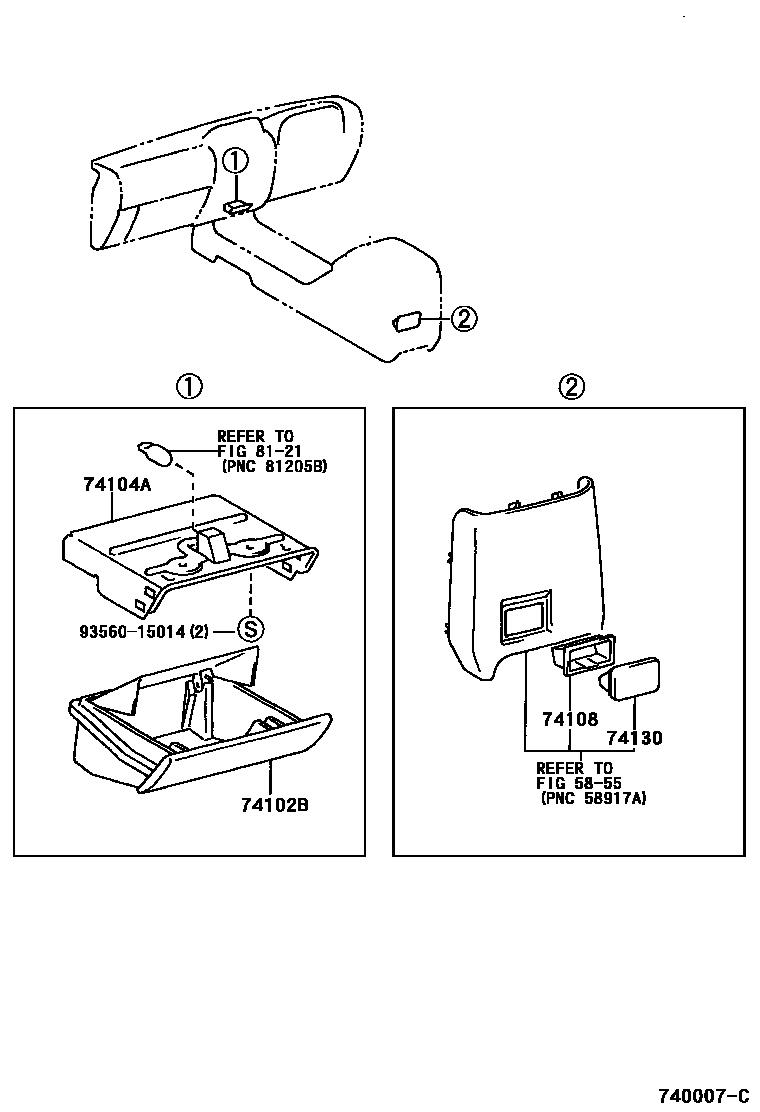

ASH RECEPTACLE

5855CONSOLE BOX & BRACKET

→ Go to FIG 58-55

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-35010iKZJ9#,VZJ9#199604-199906

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-89108iKZJ9#,VZJ9#199604-199906

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-20090iKZJ9#,VZJ9#199604-199906

74130RECEPTACLE ASSY, REAR ASH

main74109-20080-B1iKZJ9#,VZJ9#199604-199906

MD.MOON MIST,TRIM1#

main74109-20080-E1iKDJ9#,VZJ9#200008-200108

OAK,TRIM40,41

8121INTERIOR LAMP

→ Go to FIG 81-21

9356015014

main93560-15014

7 parts on this diagram · 1 diagram in section
