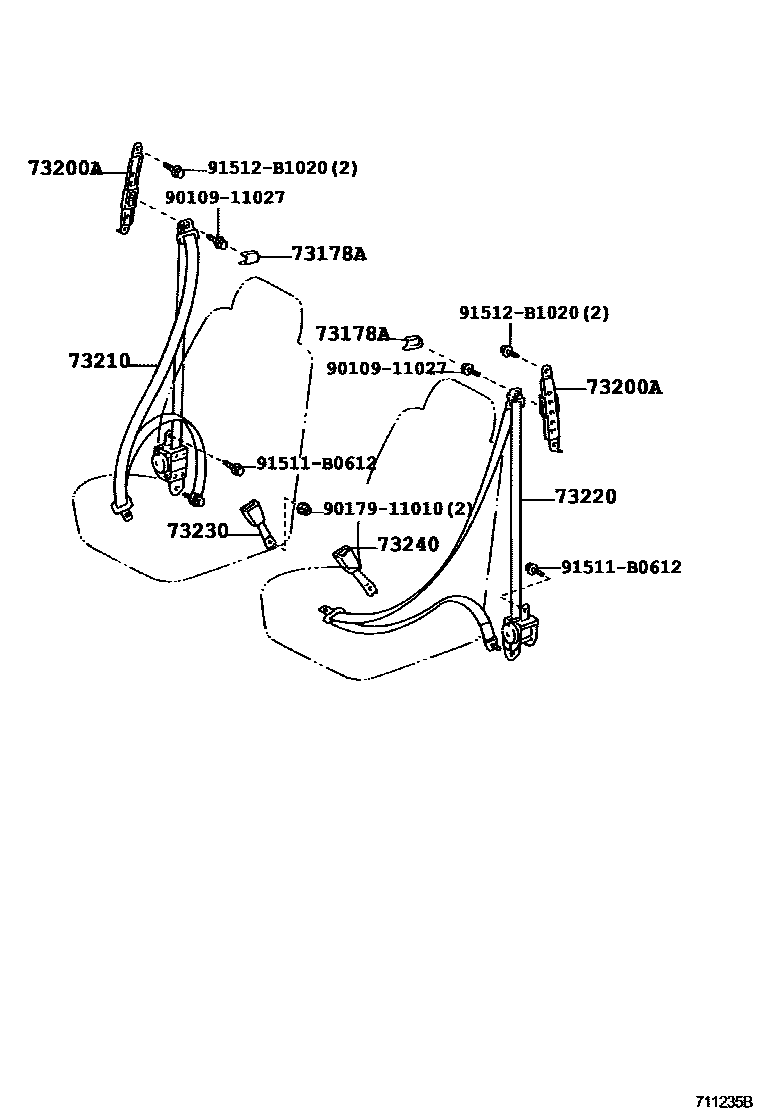

SEAT BELT

0001 1FRONT SEAT 0002 1REAR SEAT 0003 1REAR SEAT

73178ACAP, SEAT BELT ANCHOR COVER

main73178-12040-B3×2iKZJ9#,VZJ9#199604-199906

MOON MIST,TRIM1#

main73178-12040-B8×2iKDJ9#,KZJ9#,VZJ9#199906-200209

MD.MOON MIST,TRIM1#

main73178-12040-E1×2iKDJ9#,VZJ9#200008-200108

MD.OAK,TRIM40,41

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-34030×2iKZJ9#,VZJ9#199803-199906

main73200-35010×2iKZJ9#,VZJ9#199604-199803

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-60360-B0iVZJ95..RHD199604-199710

W(SEAT BELT WARNING),BLUISH GRAY,TRIM1#

main73210-60361-B0iVZJ95..RHD199710-199801

W(SEAT BELT WARNING),BLUISH GRAY,TRIM1#

main73210-60370-B0iKZJ9#,VZJ9#199604-199801

BLUISH GRAY,TRIM1#

main73210-60371-B0iKZJ90..MTM;KZJ95..LHD..MTM199801-199804

W/O(*80),BLUISH GRAY,TRIM1#

main73210-60372-B0iKZJ90..MTM;KZJ95..LHD..MTM199804-199906

W/O(*80),BLUISH GRAY,TRIM1#

main73210-60373-B1iKDJ90..RHD;KZJ90..MTM;KZJ95..LHD199906-200209

W/O(*80),BLUISH GRAY,TRIM1#

main73210-60373-E0iKDJ90..RHD;KZJ90..MTM;KZJ95..LHD199906-200209

W/O(*80),OAK,TRIM4#

main73210-60460-B0iKZJ9#,VZJ9#199801-199906

BLUISH GRAY,TRIM1#

main73210-60461-B1iKDJ9#,KZJ9#,VZJ9#199906-200108

BLUISH GRAY,TRIM1#

main73210-60461-E0iKZJ9#199906-200108

OAK,TRIM4#

main73210-60462-B1iKDJ9#,KZJ9#,VZJ9#200108-200209

BLUISH GRAY,TRIM1#

main73210-60462-E0iKDJ9#,KZJ9#,VZJ9#200108-200209

OAK,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-60280-B0iVZJ95..RHD199604-199801

W(SEAT BELT WARNING),BLUISH GRAY,TRIM1#

main73220-60290-B0iKZJ9#,VZJ9#199604-199801

BLUISH GRAY,TRIM1#

main73220-60291-B0iKZJ90..MTM;KZJ95..LHD..MTM199801-199804

W/O(*80),BLUISH GRAY,TRIM1#

main73220-60292-B0iKZJ90..MTM;KZJ95..LHD..MTM199804-199906

W/O(*80),BLUISH GRAY,TRIM1#

main73220-60293-B1iKDJ90..RHD;KZJ90..MTM;KZJ95..LHD199906-200209

W/O(*80),BLUISH GRAY,TRIM1#

main73220-60293-E0iKDJ90..RHD;KZJ90..MTM;KZJ95..LHD199906-200209

W/O(*80),OAK,TRIM4#

main73220-60370-B0iKZJ9#,VZJ9#199801-199906

BLUISH GRAY,TRIM1#

main73220-60371-B1iKDJ9#,KZJ9#,VZJ9#199906-200108

BLUISH GRAY,TRIM1#

main73220-60371-E0iVZJ9#199906-200008

OAK,TRIM4#

main73220-60372-B1iKDJ9#,KZJ9#,VZJ9#200108-200209

BLUISH GRAY,TRIM1#

main73220-60372-E0iKDJ9#,KZJ9#,VZJ9#200108-200209

OAK,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-16410-B1iKDJ9#,KZJ9#,VZJ9#199906-200209

MD.MOON MIST,TRIM1#

main73230-16410-E0iKDJ9#,VZJ9#200008-200108

OAK,TRIM40,41

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-16410-B1iKDJ9#,KZJ9#,VZJ9#199906-200209

MD.MOON MIST,TRIM1#

main73230-16410-E0iKZJ9#199906-200209

OAK,TRIM4#

9010911027

main90109-11027

9017911010

main90179-11010

91511B0612

main91511-B0612

91512B1020

main91512-B1020

10 parts on this diagram · 3 diagrams in section
