INSIDE TRIM BOARD

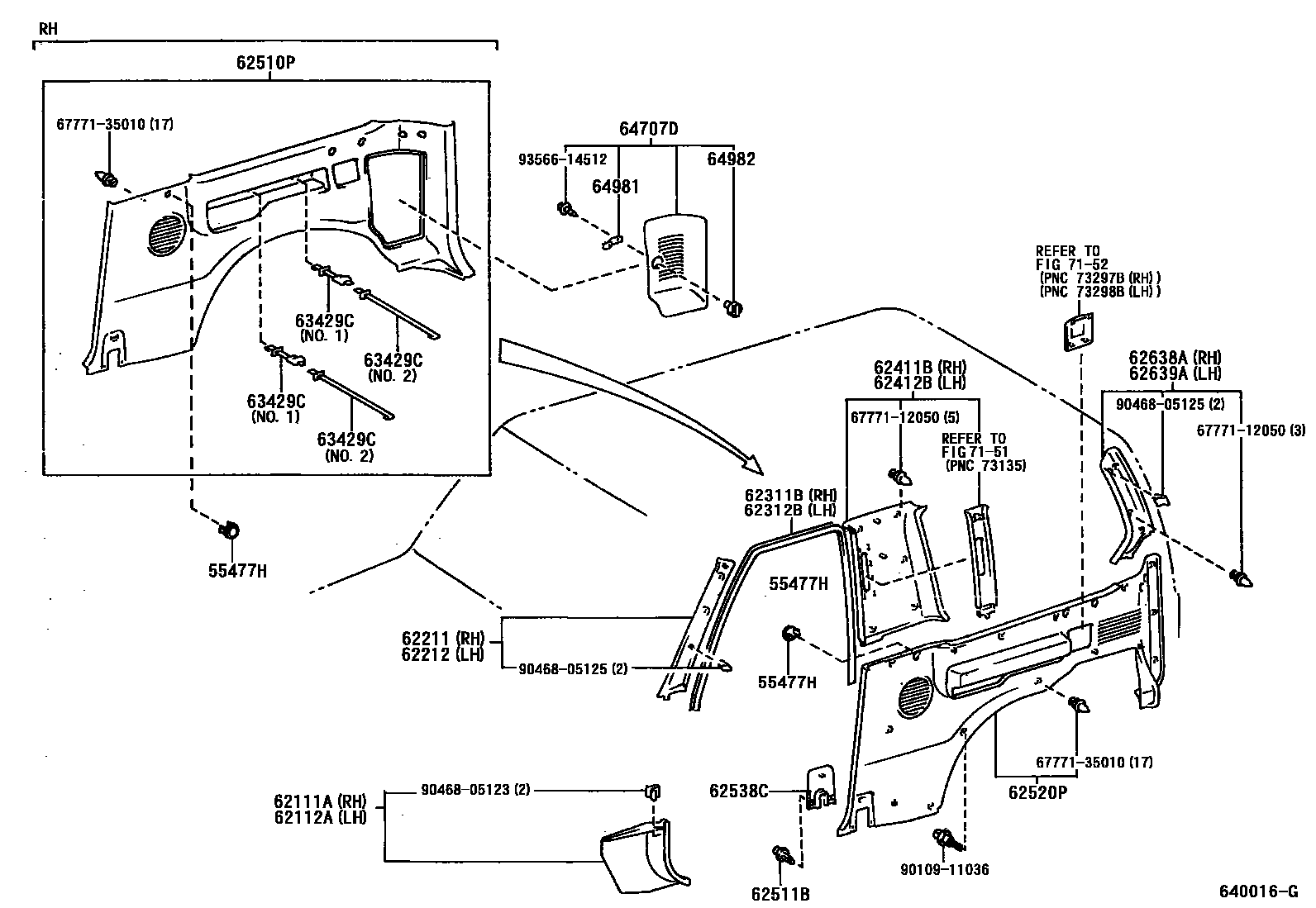

Parts diagram
55477HCOVER, REAR SEAT LEG STOPPER
main55477-10010-B1i199604-200209
MD.MOON MIST,TRIM1#
sub55477-10010
main55477-10010-E0i199906-200209
OAK,TRIM4#
sub55477-10010
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-60070-B0i199604-200209
MD.MOON MIST,TRIM1#
sub62101-60070
main62101-60070-E0i199906-200209
OAK,TRIM4#
sub62101-60070
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-60110-B0i199604-200209
MD.MOON MIST,TRIM1#
sub62102-60120
main62102-60110-E0i199906-200209
OAK,TRIM4#
sub62102-60120
62211GARNISH, FRONT PILLAR, RH
main62211-60070-B0i199604-199906
MD.MOON MIST,TRIM1#
sub62211-60070
main62211-60070-B1i199906-200209
MOON MIST,TRIM1#
sub62211-60070
main62211-60070-E0i199906-200209
MD.OAK,TRIM4#
sub62211-60070
62212GARNISH, FRONT PILLAR, LH
main62212-60070-B0i199604-199906
MD.MOON MIST,TRIM1#
sub62212-60070
main62212-60070-B1i199906-200209
MOON MIST,TRIM1#
sub62212-60070
main62212-60070-E0i199906-200209
MD.OAK,TRIM4#
sub62212-60070
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-60050-B0i199604-199906
MD.MOON MIST,TRIM1#
sub62311-60050
main62311-60050-B1i199906-200209
MOON MIST,TRIM1#
sub62311-60050
main62311-60050-E0i199906-200209
MD.OAK,TRIM4#
sub62311-60050
main62311-60050-E0i200008-200108
MD.OAK,TRIM40,41
sub62311-60050
main62311-60060-B0i199604-199906
MD.MOON MIST,TRIM1#
sub62311-60060
main62311-60060-B1i199906-200209
MOON MIST,TRIM1#
sub62311-60060
main62311-60060-E0i199906-200209
MD.OAK,TRIM4#
sub62311-60060
main62311-60060-E0i200008-200108
MD.OAK,TRIM40,41
sub62311-60060
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-60050-B0i199604-199906
MD.MOON MIST,TRIM1#
sub62312-60050
main62312-60050-B1i199906-200209
MOON MIST,TRIM1#
sub62312-60050
main62312-60050-E0i199906-200209
MD.OAK,TRIM4#
sub62312-60050
main62312-60050-E0i200008-200108
MD.OAK,TRIM40,41
sub62312-60050
main62312-60060-B0i199604-199906
MD.MOON MIST,TRIM1#
sub62312-60060
main62312-60060-B1i199906-200209
MOON MIST,TRIM1#
sub62312-60060
main62312-60060-E0i199906-200209
MD.OAK,TRIM4#
sub62312-60060
main62312-60060-E0i200008-200108
MD.OAK,TRIM40,41
sub62312-60060
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-60060-B0i199604-199906
MOON MIST,TRIM1#
sub62411-60060
main62411-60060-B1i199906-200209
MOON MIST,TRIM1#
sub62411-60060
main62411-60060-E1i199906-200209
MD.OAK,TRIM4#
sub62411-60060
main62411-60070-B0i199604-199906
MOON MIST,TRIM1#
sub62411-60070
main62411-60070-B1i199906-200209
MOON MIST,TRIM1#
sub62411-60070
main62411-60070-E1i199906-200209
MD.OAK,TRIM4#
sub62411-60070
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-60060-B0i199604-199906
MOON MIST,TRIM1#
sub62412-60060
main62412-60060-B1i199906-200209
MOON MIST,TRIM1#
sub62412-60060
main62412-60060-E1i199906-200209
MD.OAK,TRIM4#
sub62412-60060
main62412-60070-B0i199604-199906
MOON MIST,TRIM1#
sub62412-60070
main62412-60070-B1i199906-200209
MOON MIST,TRIM1#
sub62412-60070
main62412-60070-E1i199906-200209
MD.OAK,TRIM4#
sub62412-60070
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
main62510-60690-B0i199604-200209
MD.MOON MIST,TRIM1#
main62510-60690-E0i199906-200209
OAK,TRIM4#
main62510-60690-E0i200008-200108
OAK,TRIM40,41
main62510-60700-B0i199604-200209
MD.MOON MIST,TRIM1#
main62510-60700-E0i199906-200209
OAK,TRIM4#
main62510-60730-B0i199604-200209
W(TONNEAU COVER),MD.MOON MIST,TRIM1#
main62510-60730-E0i199906-200209
W(TONNEAU COVER),OAK,TRIM4#
main62510-60730-E0i200008-200108
W(TONNEAU COVER),OAK,TRIM40,41
main62510-60750-B0i199604-200209
W(PACKAGE TRAY),MD.MOON MIST,TRIM1#
main62510-60750-E0i199906-200209
W(PACKAGE TRAY),OAK,TRIM4#
main62510-60750-E0i200008-200108
W(PACKAGE TRAY),OAK,TRIM40,41
main62510-60760-B0i199604-199906
W(OPPOSING TYPE SEAT),MD.MOON MIST,TRIM1#
main62510-60820-B0i199604-200209
W(TONNEAU COVER & REAR NO.2 SEATBELT),MD.MOON MIST,TRIM1#
main62510-60820-E0i199906-200209
W(TONNEAU COVER & REAR NO.2 SEATBELT),OAK,TRIM4#
main62510-60820-E0i200008-200108
W(TONNEAU COVER & REAR NO.2 SEATBELT),OAK,TRIM40,41
main62510-60830-B0i199906-200209
W(DUAL AIR CONDITIONER & REAR NO.2 SEATBELT),MD.MOON MIST,TRIM1#
main62510-60830-E0i199906-200209
W(DUAL AIR CONDITIONER & TONNEAU COVER & REAR NO.2 SEATBELT),OAK,TRIM4#
main62510-60830-E0i200008-200108
W(DUAL AIR CONDITIONER & TONNEAU COVER & REAR NO.2 SEATBELT),OAK,TRIM40,41
main62510-60870-B0i199801-200209
W(DETACHABLE REAR NO.2 SEAT),MD.MOON MIST,TRIM1#
main62510-60870-E0i200008-200108
W(DETACHABLE REAR NO.2 SEAT),OAK,TRIM40,41
main62510-60870-E0i199906-200209
W(DETACHABLE REAR NO.2 SEAT),OAK,TRIM4#
main62510-60880-B0i199906-200209
W(DUAL AIR CONDITIONER & DETACHABLE REAR NO.2 SEAT),MD.MOON MIST,TRIM1#
main62510-60880-E0i199906-200209
W(DUAL AIR CONDITIONER & DETACHABLE REAR NO.2 SEAT),OAK,TRIM4#
main62510-60880-E0i200008-200108
W(DUAL AIR CONDITIONER & DETACHABLE REAR NO.2 SEAT),OAK,TRIM40,41
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-06133-C0i199906-200209
BLACK,TRIM1#,4#
sub90467-06133
main90467-06133-C0i199604-199801
BLACK,TRIM1#&K01 ,K03 ,K04 ,K06 ,K08 ,K10 ,K12 ,K14 ,056 ,1A5 ,202 ,3L3 ,3L5 ,6P3,6P4 ,8L7
sub90467-06133
main90467-06133-C0i199801-199906
BLACK,TRIM1#&K04 ,K08 ,K14 ,K72 ,K73 ,K74 ,K75 ,K76 ,K79 ,K80 ,K81 ,056 ,1C0 ,1C1,202 ,3K4 ,3L5 ,6P4 ,6Q7
sub90467-06133
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
main62520-60270-B0i199604-200209
MD.MOON MIST,TRIM1#
main62520-60270-E0i199906-200209
OAK,TRIM4#
main62520-60270-E0i200008-200108
OAK,TRIM40,41
main62520-60320-B0i199604-200008
MD.MOON MIST,TRIM1#
main62520-60320-B0i199906-200209
W/O(REAR SEAT),MD.MOON MIST,TRIM1#
main62520-60320-E0i199906-200209
W/O(REAR SEAT),OAK,TRIM4#
main62520-60320-E0i199906-200008
OAK,TRIM4#
main62520-60330-B0i199604-200209
W(TONNEAU COVER),MD.MOON MIST,TRIM1#
main62520-60330-E0i199906-200209
W(TONNEAU COVER),OAK,TRIM4#
main62520-60330-E0i200008-200108
W(TONNEAU COVER),OAK,TRIM40,41
main62520-60350-B0i199604-200008
W(PACKAGE TRAY),MD.MOON MIST,TRIM1#
sub62520-60351
main62520-60350-E0i199906-200008
W(PACKAGE TRAY),OAK,TRIM4#
sub62520-60351
main62520-60351-B0i200008-200209
W(PACKAGE TRAY),MD.MOON MIST,TRIM1#
main62520-60351-E0i200008-200209
W(PACKAGE TRAY),OAK,TRIM4#
main62520-60351-E0i200008-200108
W(PACKAGE TRAY),OAK,TRIM40,41
main62520-60360-B0i199604-199906
W(OPPOSING TYPE SEAT),MD.MOON MIST,TRIM1#
main62520-60410-B0i199604-199801
W(TONNEAU COVER & REAR NO.2 SEATBELT),MD.MOON MIST,TRIM1#
main62520-60411-B0i199801-200008
W(TONNEAU COVER & REAR NO.2 SEATBELT),MD.MOON MIST,TRIM1#
sub62520-60412
main62520-60411-E0i199906-200008
W(TONNEAU COVER & REAR NO.2 SEATBELT),OAK,TRIM4#
sub62520-60412
main62520-60412-B0i200008-200209
W(TONNEAU COVER & REAR NO.2 SEATBELT),MD.MOON MIST,TRIM1#
main62520-60412-E0i200008-200108
W(TONNEAU COVER & REAR NO.2 SEATBELT),OAK,TRIM40,41
main62520-60412-E0i200008-200209
W(TONNEAU COVER & REAR NO.2 SEATBELT),OAK,TRIM4#
main62520-60570-B0i199801-200008
W(DETACHABLE REAR NO.2 SEAT),MD.MOON MIST,TRIM1#
sub62520-60571
main62520-60570-E0i199906-200008
W(DETACHABLE REAR NO.2 SEAT),OAK,TRIM4#
sub62520-60571
main62520-60571-B0i200008-200209
W(DETACHABLE REAR NO.2 SEAT),MD.MOON MIST,TRIM1#
main62520-60571-E0i200008-200209
W(DETACHABLE REAR NO.2 SEAT),OAK,TRIM4#
main62520-60571-E0i200008-200108
W(DETACHABLE REAR NO.2 SEAT),OAK,TRIM40,41
main62520-60610-B0i200008-200209
MD.MOON MIST,TRIM1#
main62520-60610-E0i200008-200209
OAK,TRIM4#
62538CCOVER, QUARTER TRIM, HOLE
main62538-60030-B0i199604-200209
MD.MOON MIST,TRIM1#
sub62538-60030
main62538-60030-E0i200008-200108
OAK,TRIM40,41
sub62538-60030
main62538-60030-E0i199906-200209
OAK,TRIM4#
sub62538-60030
main62538-60040-B0i199604-199801
MD.MOON MIST,TRIM1#,RH
main62539-60040-B0i199604-199801
MD.MOON MIST,TRIM1#,LH
62638AGARNISH, QUARTER PILLAR, RH
main62638-60060-B0i199604-200209
MOON MIST,TRIM1#
main62638-60060-E0i199906-200209
MD.OAK,TRIM4#
main62638-60060-E0i200008-200108
MD.OAK,TRIM40,41
main62638-60090-B0i199604-200209
MOON MIST,TRIM1#
sub62638-60090
main62638-60090-E0i200008-200108
MD.OAK,TRIM40,41
sub62638-60090
main62638-60090-E0i199906-200209
MD.OAK,TRIM4#
sub62638-60090
main62638-60100-B0i199906-200209
W(DUAL AIR CONDITIONER),MOON MIST,TRIM1#
sub62638-60100
main62638-60100-E0i199906-200209
W(DUAL AIR CONDITIONER),MD.OAK,TRIM4#
sub62638-60100
main62638-60100-E0i200008-200108
W(DUAL AIR CONDITIONER),MD.OAK,TRIM40,41
sub62638-60100
62639AGARNISH, QUARTER PILLAR, LH
main62639-60050-B0i199604-200209
MOON MIST,TRIM1#
sub62639-60050
main62639-60050-E0i199906-200209
MD.OAK,TRIM4#
sub62639-60050
main62639-60050-E0i200008-200108
MD.OAK,TRIM40,41
sub62639-60050
main62639-60070-B0i199604-200209
MOON MIST,TRIM1#
sub62639-60070
main62639-60070-E0i200008-200108
MD.OAK,TRIM40,41
sub62639-60070
main62639-60070-E0i199906-200209
MD.OAK,TRIM4#
sub62639-60070
63429CBAND, ROOM RACK
main63429-60010-B0i199604-200209
MD.MOON MIST,TRIM1#,NO.1
sub63429-60010
main63429-60010-E0i200008-200108
OAK,TRIM40,41,NO.1
sub63429-60010
main63429-60010-E0i199906-200209
OAK,TRIM4#,NO.1
sub63429-60010
main63429-60020-B0i199604-200209
MD.MOON MIST,TRIM1#,NO.2
sub63429-60020
main63429-60020-E0i199906-200209
OAK,TRIM4#,NO.2
sub63429-60020
main63429-60020-E0i200008-200108
OAK,TRIM40,41,NO.2
sub63429-60020
64707DCOVER SUB-ASSY, QUARTER TRIM JACK
main64707-60040-B0i199604-200209
MD.MOON MIST,TRIM1#
main64707-60040-E0i199906-200209
OAK,TRIM4#
main64707-60050-B0i199604-200209
MD.MOON MIST,TRIM1#
main64707-60050-E0i199906-200209
OAK,TRIM4#
64981STOPPER, WASHER TANK COVER
main64981-16021i199604-200209
64982KNOB, COVER
main64982-16020-B2i199604-200209
MD.MOON MIST,TRIM1#
sub64982-16020
main64982-16020-E4i199906-200209
OAK,TRIM4#
sub64982-16020
7151
7152
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
6777135010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-35010
9010911036
main90109-11036
9046805123
main90468-05123
9046805125
main90468-05125
9356614512
main93566-14512

27 parts on this diagram · 2 diagrams in section
