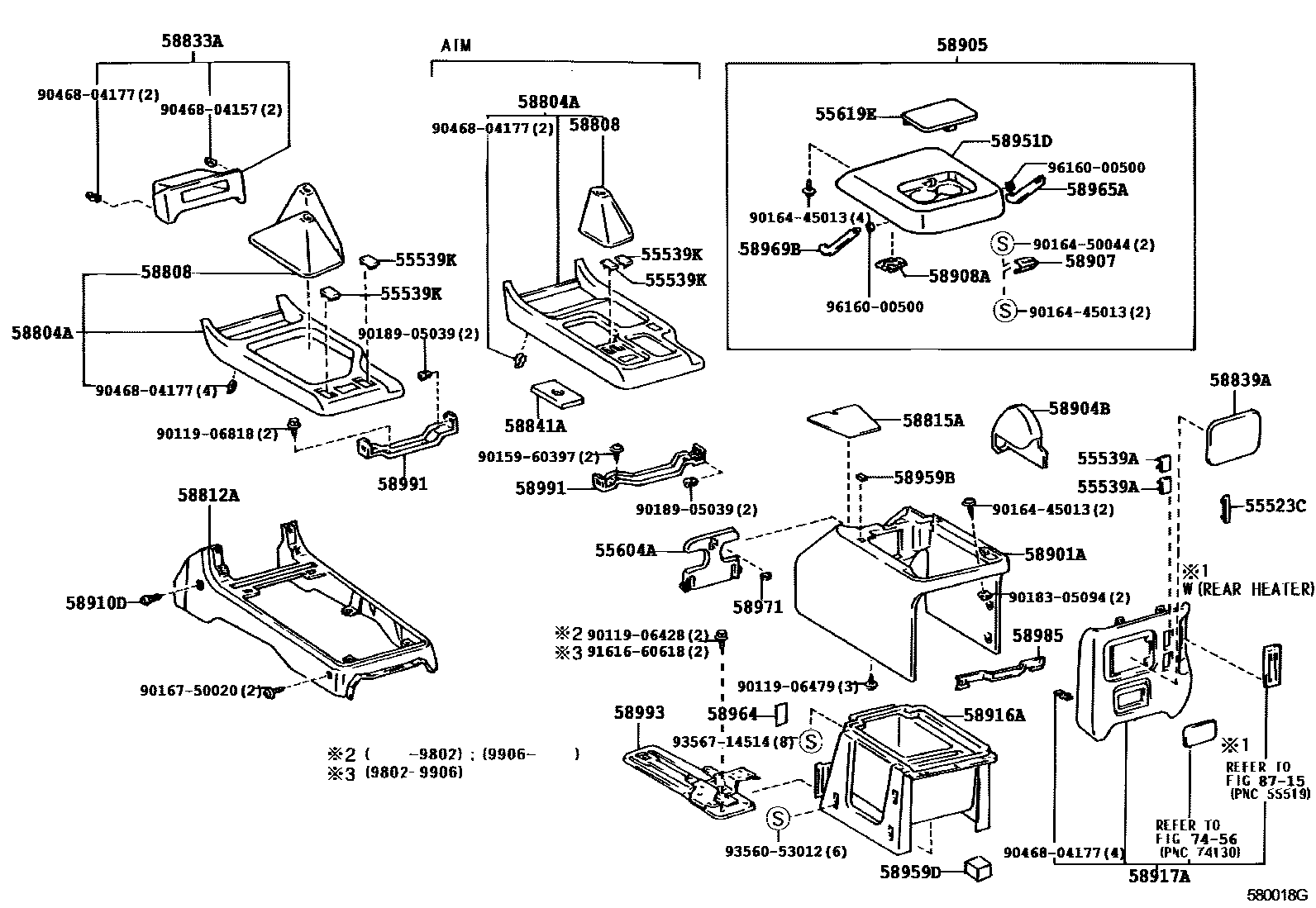

CONSOLE BOX & BRACKET

0001 1 0002 1

55523CCOVER, HEATER CONTROL OPENING

main55523-60010-B0iKDJ95,KZJ95,VZJ95199906-200209

MD.MOON MIST,TRIM1#

sub55523-60010

main55523-60010-E0iKDJ95,VZJ95200008-200108

OAK,TRIM40,41

sub55523-60010

main55523-60010-E0iKZJ95199906-200209

OAK,TRIM4#

sub55523-60010

55539ACOVER, SPARE SWITCH HOLE

main55539-20080-B2iKDJ95,KZJ95,VZJ95199906-200209

MD.MOON MIST,TRIM1#

sub55539-20080

sub55539-12130

sub55539-32010

main55539-20080-E0iKDJ95,VZJ95199906-200209

OAK,TRIM4#

sub55539-20080

sub55539-12130

sub55539-32010

main55539-20080-E0iKZJ95200008-200108

OAK,TRIM40,41

sub55539-20080

sub55539-12130

sub55539-32010

55539KCOVER, SPARE SWITCH HOLE

main55539-20020-C0iKZJ9#,VZJ9#199604-199906

BLACK,TRIM1#

sub55539-20020

main55539-20020-C0iKZJ9#,VZJ9#199906-200209

BLACK,TRIM1#,4#

sub55539-20020

main55539-20020-C0iKDJ90,KZJ9#,VZJ90200008-200108

BLACK,TRIM1#,40,41

sub55539-20020

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-60010-B0iKZJ9#,VZJ9#199604-200008

MD.MOON MIST,TRIM1#

main55604-60010-E0iKZJ9#,VZJ9#..LHD199906-200008

OAK,TRIM4#

main55604-60020-B0iKDJ9#,KZJ9#,VZJ9#199906-200209

MD.MOON MIST,TRIM1#

sub55604-60020

main55604-60020-E0iKZJ9#200008-200108

OAK,TRIM40,41

sub55604-60020

main55604-60020-E0iKZJ9#199906-200209

OAK,TRIM4#

sub55604-60020

55619ECOVER, CUP HOLDER HOLE

main55619-60020-B0iKDJ9#,KZJ9#,VZJ9#199604-200209

MD.MOON MIST,TRIM1#

sub55619-60020

main55619-60020-E0iKDJ9#,VZJ9#199906-200209

OAK,TRIM4#

sub55619-60020

main55619-60020-E0iKZJ9#200008-200108

OAK,TRIM40,41

sub55619-60020

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-60040-C0iKZJ95,VZJ95..RHD..ATM199604-199906

BLACK,TRIM1#

main58804-60040-C0iKDJ95,VZJ95..RHD..ATM200008-200108

BLACK,TRIM1#,40,41

main58804-60040-C0iKZJ95..RHD..ATM199906-200209

BLACK,TRIM1#,4#

main58804-60050-C0iKZJ9#..RHD..MTM199604-199906

BLACK,TRIM1#

main58804-60050-C0iKDJ9#..RHD..MTM200008-200108

BLACK,TRIM1#,40,41

main58804-60050-C0iKDJ9#,KZJ95..RHD..MTM199906-200209

BLACK,TRIM1#,4#

main58804-60060-C0iKZJ9#,VZJ9#..LHD..ATM199604-199906

BLACK,TRIM1#

main58804-60060-C0iKZJ9#,VZJ9#..LHD..ATM199906-200209

BLACK,TRIM1#,4#

main58804-60060-C0iKZJ95..LHD..ATM200008-200108

BLACK,TRIM1#,40,41

main58804-60070-C0iKZJ9#..LHD..MTM200008-200108

BLACK,TRIM1#,40,41

main58804-60070-C0iKDJ9#,VZJ9#..LHD..MTM199906-200209

BLACK,TRIM1#,4#

main58804-60070-C0iKZJ9#,VZJ9#..LHD..MTM199604-199906

BLACK,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-60080-C0iKZJ95,VZJ95..RHD..ATM199604-199906

BLACK,TRIM1#

main58808-60080-C0iKZJ95,VZJ95..RHD..ATM199906-200209

BLACK,TRIM1#,4#

main58808-60080-C0iKZJ95..RHD..ATM200008-200108

BLACK,TRIM1#,40,41

main58808-60090-C0iKZJ9#..RHD..MTM199906-200209

BLACK,TRIM1#,4#

main58808-60090-C0iKDJ9#..RHD..MTM200008-200108

BLACK,TRIM1#,40,41

main58808-60090-C0iKZJ9#..RHD..MTM199604-199906

BLACK,TRIM1#

main58808-60100-C0iKZJ9#,VZJ9#..LHD..ATM199604-199906

BLACK,TRIM1#

main58808-60100-C0iKDJ9#,VZJ9#..LHD..ATM199906-200209

BLACK,TRIM1#,4#

main58808-60100-C0iKDJ9#,VZJ9#..LHD..ATM200008-200108

BLACK,TRIM1#,40,41

main58808-60110-C0iKDJ9#,VZJ9#..LHD..MTM200008-200108

BLACK,TRIM1#,40,41

main58808-60110-C0iKZJ9#,VZJ9#..LHD..MTM199604-199906

BLACK,TRIM1#

main58808-60110-C0iKZJ9#,VZJ9#..LHD..MTM199906-200209

BLACK,TRIM1#,4#

58812ABOX, CONSOLE, LOWER

main58812-60020-B0iKDJ9#,KZJ9#,VZJ9#199604-200209

MD.MOON MIST,TRIM1#

sub58812-60020

main58812-60020-E0iKZJ9#199906-200209

OAK,TRIM4#

sub58812-60020

main58812-60020-E0iKZJ9#200008-200108

OAK,TRIM40,41

sub58812-60020

58815ACARPET, CONSOLE BOX

main58815-60010iKZJ9#,VZJ9#199807-199906

main58815-60010-B0iKZJ9#,VZJ9#199604-199807

MD.MOON MIST,TRIM1#

sub58815-60010

main58815-60011iKZJ9#,VZJ9#..LHD199906-200008

main58815-60070iKZJ9#,VZJ95..RHD199906-200209

58833ACOVER, CONSOLE, UPPER

main58833-60010-C0iKZJ9#,VZJ9#199604-199906

BLACK,TRIM1#

main58833-60010-C0iKZJ9#,VZJ9#199906-200209

BLACK,TRIM1#,4#

main58833-60010-C0iKZJ9#200008-200108

BLACK,TRIM1#,40,41

58839ACOVER, CONSOLE BOX HOLE

main55549-60020-B0iKZJ9#,VZJ9#199604-200209

MD.MOON MIST,TRIM1#

sub55549-60020

main55549-60020-E0iKZJ9#,VZJ9#199906-200209

OAK,TRIM4#

sub55549-60020

main55549-60020-E0iKZJ9#200008-200108

OAK,TRIM40,41

sub55549-60020

58841ACOVER, SHIFTING HOLE

main58841-35010iKDJ9#,KZJ9#,VZJ9#..ATM199604-200209

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-60060-B0iKZJ9#,VZJ95..RHD199604-199906

MD.MOON MIST,TRIM1#

main58911-60070-B0iKZJ9#,VZJ9#..LHD199604-200008

MD.MOON MIST,TRIM1#

main58911-60070-E0iKZJ9#,VZJ9#..LHD199906-200008

OAK,TRIM4#

main58911-60120-B0iKDJ9#,KZJ9#,VZJ95..RHD199906-200209

MD.MOON MIST,TRIM1#

main58911-60120-E0iKDJ9#,VZJ95..RHD199906-200209

OAK,TRIM4#

main58911-60120-E0iKDJ9#,VZJ95..RHD200008-200108

OAK,TRIM40,41

main58911-60130-B0iKDJ9#,KZJ9#,VZJ9#..LHD200008-200209

MD.MOON MIST,TRIM1#

main58911-60130-E0iKDJ9#,VZJ9#..LHD200008-200108

OAK,TRIM40,41

main58911-60130-E0iKZJ9#..LHD200008-200209

OAK,TRIM4#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-60010iKZJ9#,VZJ95..RHD199604-200209

main58904-60020iKZJ9#,VZJ9#..LHD199604-200209

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-60040-B0iKDJ9#,KZJ9#,VZJ9#199604-200209

MD.MOON MIST,TRIM1#

sub58905-60040

main58905-60040-E0iKDJ9#,KZJ9#,VZJ9#199906-200209

OAK,TRIM4#

sub58905-60040

main58905-60040-E0iKZJ9#200008-200108

OAK,TRIM40,41

sub58905-60040

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-60030iKDJ9#,KZJ9#,VZJ9#199604-200209

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32040iKZJ9#,VZJ9#199604-200209

main58908-32040iKZJ9#,VZJ9#199702-199906

W(REAR HEATER)

58910DCLIP(FOR CONSOLE BOX)

main90467-07041-B5iKZJ9#,VZJ9#199604-200209

MD.MOON MIST,TRIM1#

sub90467-07041

main90467-07041-E0iKDJ9#,VZJ9#200008-200108

OAK,TRIM40,41

sub90467-07041

main90467-07041-E0iKZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#199906-200209

OAK,TRIM4#

sub90467-07041

58916AINSERT, CONSOLE BOX, REAR

main58916-60040-B0iKDJ9#,KZJ9#,VZJ9#199604-200209

MD.MOON MIST,TRIM1#

main58916-60040-E0iKZJ9#,VZJ9#199906-200209

OAK,TRIM4#

main58916-60040-E0iKZJ9#200008-200108

OAK,TRIM40,41

main58916-60050-B0iKDJ9#,KZJ9#,VZJ9#199604-200209

W(DUAL AIR CONDITIONER),MD.MOON MIST,TRIM1#

main58916-60050-E0iKZJ9#,VZJ9#199906-200209

W(DUAL AIR CONDITIONER),OAK,TRIM4#

main58916-60050-E0iKZJ9#200008-200108

W(DUAL AIR CONDITIONER),OAK,TRIM40,41

58917ACOVER, CONSOLE BOX, REAR

main58917-60020-B0iKZJ9#,VZJ9#199604-200209

MD.MOON MIST,TRIM1#

main58917-60020-E0iKZJ9#200008-200108

OAK,TRIM40,41

main58917-60020-E0iKDJ9#,VZJ9#199906-200209

OAK,TRIM4#

main58917-60030-B0iKDJ95,KZJ95,VZJ95199906-200209

W(DUAL AIR CONDITIONER),MD.MOON MIST,TRIM1#

main58917-60030-E0iKZJ95200008-200108

W(DUAL AIR CONDITIONER),OAK,TRIM40,41

main58917-60030-E0iKZJ95,VZJ95199906-200209

W(DUAL AIR CONDITIONER),OAK,TRIM4#

main58917-60040-B0iKDJ9#,KZJ9#,VZJ9#199604-200209

W(REAR HEATER),MD.MOON MIST,TRIM1#

sub58917-60030

sub55519-60250

main58917-60040-E0iKZJ9#199906-200209

W(REAR HEATER),OAK,TRIM4#

sub58917-60030

sub55519-60250

main58917-60040-E0iKZJ9#200008-200108

W(REAR HEATER),OAK,TRIM40,41

sub58917-60030

sub55519-60250

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-60040-B0iKDJ9#,KZJ9#,VZJ9#199604-200209

MD.MOON MIST,TRIM1#

sub58951-60040

main58951-60040-E0iKDJ9#,KZJ9#,VZJ9#199906-200209

OAK,TRIM4#

sub58951-60040

main58951-60040-E0iKZJ9#200008-200108

OAK,TRIM40,41

sub58951-60040

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60030iKZJ9#,VZJ9#199604-200209

58959DCUSHION, REAR CONSOLE BOX

main58959-60010iKZJ9#,VZJ9#199608-200209

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-60010iKZJ9#,VZJ9#199608-200209

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-60010iKZJ9#,VZJ9#199604-199608

main58965-60030iKZJ9#,VZJ9#199608-200209

58969BSTOPPER, CONSOLE COMPARTMENT DOOR, NO.3

main58969-60010iKZJ9#,VZJ9#199604-199608

main58969-60030iKZJ9#,VZJ9#199608-200209

58971LOCK, CONSOLE COMPARTMENT DOOR

main58971-26010iKZJ9#,VZJ9#199604-199608

main58971-60010iKZJ9#,VZJ9#199608-200209

58985RETAINER, CONSOLE BOX

main58985-60050iKZJ9#,VZJ9#199604-200209

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-60040iKZJ9#,VZJ9#..MTM199604-200209

main58991-60050iKZJ9#,VZJ9#..ATM199604-200209

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58902-60010iKZJ9#,VZJ9#199604-200008

main58902-60040iKDJ9#,KZJ9#,VZJ9#..LHD200008-200209

main58902-60060iKZJ9#,VZJ95..RHD199906-200008

sub58902-60061

main58902-60061iKDJ9#,KZJ95,VZJ95..RHD200008-200209

7456

8715

9011906428

main90119-06428

9011906479

main90119-06479

9011906818

main90119-06818

9015960397

main90159-60397

9016445013

main90164-45013

9016450044

main90164-50044

9016750020

main90167-50020

9018305094

main90183-05094

9018905039

main90189-05039

9046804157

main90468-04157

9046804177

main90468-04177

9161660618

main91616-60618

9356053012

main93560-53012

9356714514

main93567-14514

9616000500

main96160-00500

47 parts on this diagram · 2 diagrams in section
