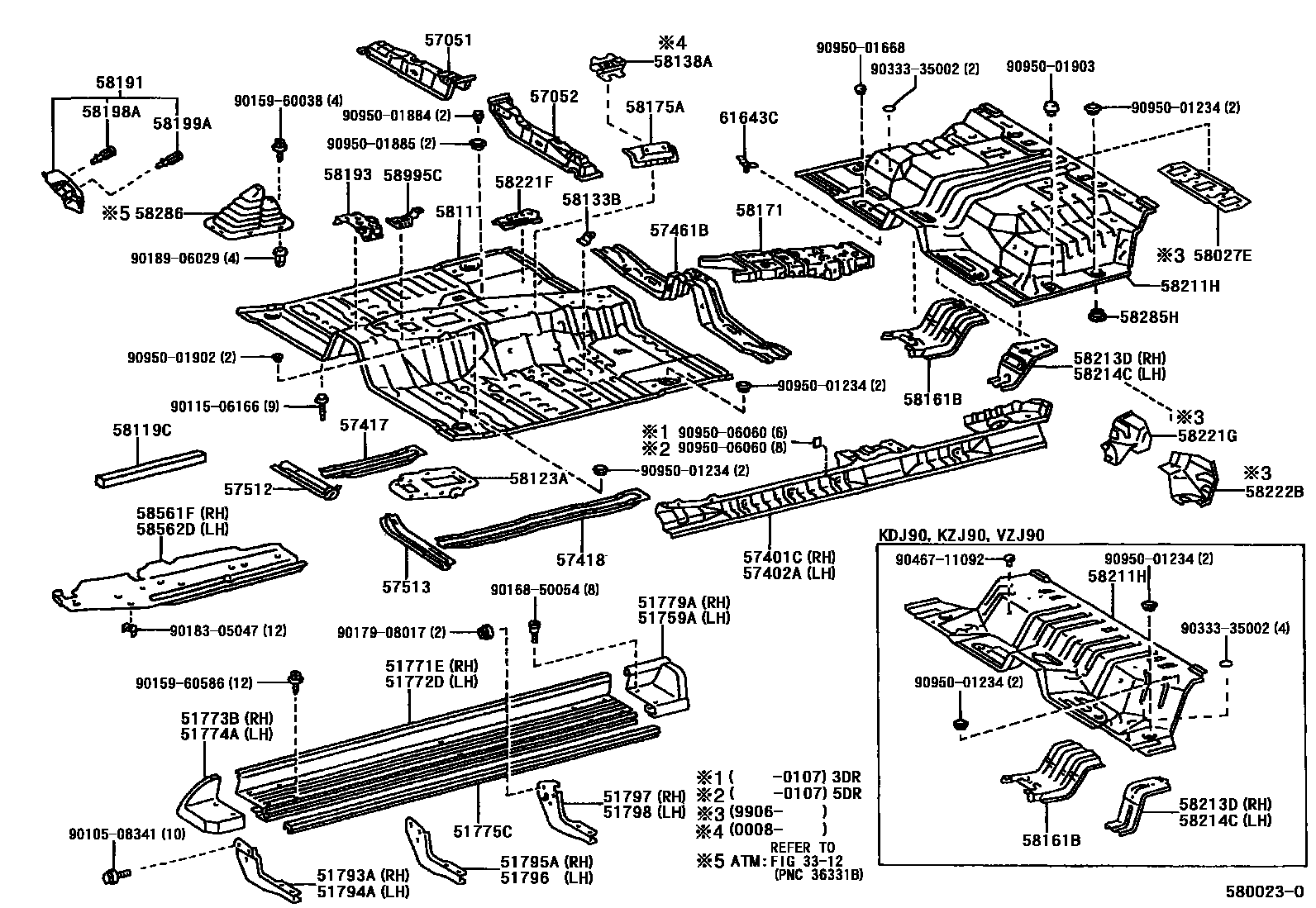

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

51759ACOVER, SIDE DOOR STEP PLATE, REAR LH

main51759-60060iKZJ9#,VZJ9#199604-200209

51771EPLATE, STEP, RH

main51771-6A010iKZJ90,VZJ90199604-199707

main51771-6A020iKZJ95,VZJ95199604-199707

main51771-6A030iKZJ90,VZJ90199707-199810

main51771-6A031iKDJ90,KZJ90,VZJ90199810-200209

main51771-6A040iKZJ95,VZJ95199707-199810

main51771-6A041iKZJ95,VZJ95199810-200209

51772DPLATE, STEP, LH

main51772-60030iKZJ90,VZJ90199604-199707

main51772-60040iKZJ95,VZJ95199604-199707

main51772-60050iKZJ90,VZJ90199707-199810

main51772-60051iKDJ90,KZJ90,VZJ90199810-200209

main51772-60060iKZJ95,VZJ95199707-199810

main51772-60061iKZJ95,VZJ95199810-200209

51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH

main51773-60060iKZJ9#,VZJ9#199604-200209

51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH

main51774-60060iKZJ9#,VZJ9#199604-200209

51775CMOULDING, SIDE DOOR STEP PLATE, NO.1

main51775-60020iKZJ95,VZJ95199604-199810

main51775-60021iKDJ95,KZJ95,VZJ95199810-200209

main51775-60030iKZJ90,VZJ90199604-199810

main51775-60031iKDJ90,KZJ90,VZJ90199810-200209

51779ACOVER, SIDE DOOR STEP PLATE, REAR RH

main51779-60060iKZJ9#,VZJ9#199604-200209

51793ABRACKET, SIDE STEP, NO.1 RH

main51793-60070iKZJ9#,VZJ9#199604-200209

W(FRONT FENDER MOULDING)

main51793-60080iKZJ9#,VZJ9#199604-200209

51794ABRACKET, SIDE STEP, NO.1 LH

main51794-60030iKZJ9#,VZJ9#199604-200209

W(FRONT FENDER MOULDING)

main51794-60040iKZJ9#,VZJ9#199604-200209

51795ABRACKET, SIDE STEP, NO.2 RH

main51795-60020iKZJ9#,VZJ9#199604-200209

W(FRONT FENDER MOULDING)

main51795-60030iKZJ9#,VZJ9#199604-200209

51796BRACKET, SIDE STEP, NO.2 LH

main51796-60010iKZJ9#,VZJ9#199604-200209

W(FRONT FENDER MOULDING)

main51796-60020iKZJ9#,VZJ9#199604-200209

51797BRACKET, SIDE STEP, NO.3 RH

main51797-60040iKZJ9#,VZJ9#199604-200209

W(FRONT FENDER MOULDING)

main51797-60050iKDJ9#,KZJ9#,VZJ9#199604-200209

51798BRACKET, SIDE STEP, NO.3 LH

main51798-60010iKZJ9#,VZJ9#199604-200209

W(FRONT FENDER MOULDING)

main51798-60020iKDJ9#,KZJ9#,VZJ9#199604-200209

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60030iKZJ9#,VZJ9#199604-200209

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60030iKDJ9#,KZJ9#,VZJ9#199604-200209

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-60060iKDJ95,KZJ95,VZJ95199604-200209

main57401-60070iKZJ90,VZJ90199604-200209

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-60070iKDJ95,KZJ95,VZJ95199604-200209

main57402-60080iKZJ90,VZJ90199604-200209

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-60030iKZJ9#,VZJ9#199604-200209

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-60030iKDJ9#,KZJ9#,VZJ9#199604-200209

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-60020iKZJ9#,VZJ9#199604-200209

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-60040iKZJ9#,VZJ9#199604-200209

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-60030iKZJ9#,VZJ9#199604-200209

58027EREINFORCE SUB-ASSY, SEAT BELT ANCHOR ,RH

main58027-60060iKDJ95,KZJ95,VZJ95199906-200209

58111PAN, FRONT FLOOR

main58111-60620iVZJ9#..MTM199604-200209

main58111-60630iVZJ9#..MTM199604-200209

W(REAR HEATER)

main58111-60660iKZJ9#..MTM199604-200209

main58111-60670iKZJ9#..MTM199604-200209

W(REAR HEATER)

main58111-60700iKDJ9#,KZJ9#,VZJ9#..ATM199604-200209

main58111-60750iKZJ9#,VZJ9#..ATM199604-200209

W(REAR HEATER)

58119CCUSHION, FRONT FLOOR

main58119-60030iKZJ9#,VZJ9#..MTM199604-200008

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-60030iKZJ9#,VZJ9#..ATM199604-200209

main58123-60040iKDJ9#,KZJ9#,VZJ9#..MTM199801-200209

58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3

main58133-60020iKZJ9#,VZJ9#199604-200209

58138ABRACKET, FRONT FLOOR HOUSING, REAR RH

main58138-60010iKDJ95..RHD..ATM200008-200209

main58148-60010iKDJ9#..LHD..ATM200008-200209

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-60010iKZJ9#,VZJ9#199604-199906

main58161-60011iKDJ9#,KZJ9#,VZJ9#199906-200209

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-60040iKDJ9#,KZJ9#,VZJ9#199604-200209

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-60010iKDJ9#,KZJ9#,VZJ95..RHD199604-200209

main58175-60020iKZJ9#,VZJ9#..LHD199604-200209

58191FOOTREST, FRONT FLOOR

main58190-60020iKDJ9#,KZJ9#,VZJ9#..LHD199604-200209

main58190-60030iKZJ9#,VZJ95..RHD199604-200209

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58109-60010iKZJ9#,VZJ9#199801-200209

main58193-35030iKZJ9#,VZJ9#199604-199801

58198ACLIP, FOOTREST, NO.1

main58198-60010iKZJ9#,VZJ9#..LHD199604-200209

main58198-60030iKDJ9#,KZJ9#,VZJ95..RHD199604-200209

58199ACLIP, FOOTREST, NO.2

main58198-60020iKDJ9#,KZJ9#,VZJ9#..LHD199604-200209

main58198-60030iKDJ9#,KZJ9#,VZJ95..RHD199604-200209

58211HPAN, CENTER FLOOR

main58211-60030iKZJ95,VZJ95199604-199701

W(WALK-IN SEAT)

main58211-60031iKZJ95,VZJ95199701-199906

W(WALK-IN SEAT)

main58211-60032iKDJ95,KZJ95,VZJ95199906-200209

W(WALK-IN SEAT)

main58211-60040iKZJ95,VZJ95199604-199701

main58211-60041iKZJ95,VZJ95199701-199906

main58211-60042iKDJ95,KZJ95,VZJ95199906-200209

main58211-60050iKZJ90,VZJ90199604-199906

main58211-60051iKDJ90,KZJ90,VZJ90199906-200209

main58211-60060iKZJ90..MTM199604-199906

W(OPPOSING TYPE SEAT)

main58211-60061iKDJ90,KZJ90..MTM199906-200209

W(OPPOSING TYPE SEAT)

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-60010iKZJ95,VZJ95199604-199701

main58213-60011iKZJ95,VZJ95199701-200209

main58213-60020iKDJ90,KZJ90,VZJ90199604-200209

58214CREINFORCEMENT, CENTER FLOOR PANEL, LH

main58213-60010iKZJ95,VZJ95199604-199701

main58213-60011iKDJ95,KZJ95,VZJ95199701-200209

main58213-60020iKDJ90,KZJ90,VZJ90199604-200209

58221FREINFORCEMENT, FLOOR PANEL, FRONT RH

main58221-35010iKZJ9#,VZJ9#199604-200209

58221GREINFORCEMENT, FLOOR PANEL, FRONT RH

main58221-60011iKDJ95,KZJ95,VZJ95199906-200209

58222BREINFORCEMENT, FLOOR PANEL, FRONT LH

main58222-60011iKDJ95,KZJ95,VZJ95199906-200209

58285HCOVER, CENTER FLOOR HOLE

main58285-60080iKZJ90,VZJ90199606-200209

main58285-60080iKDJ90200008-200209

W(ABS)

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-60080iVZJ9#..MTM199604-200209

main58280-60090iKDJ9#,KZJ9#..RHD..MTM199604-200209

main58280-60100iKDJ9#,KZJ9#..LHD..MTM199604-200209

58561FSILENCER, FRONT FLOOR, NO.1

main58561-60010iKZJ9#..MTM199604-199807

main58561-60011iKZJ9#..MTM199807-199906

main58561-60020iKZJ9#..MTM199604-199608

58562DSILENCER, FRONT FLOOR, NO.2

main58562-60010iKZJ9#..MTM199604-199807

main58562-60011iKZJ9#..MTM199807-199906

main58562-60020iKZJ9#..MTM199604-199608

58995CBRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-35020iKZJ9#,VZJ9#199604-200209

61643CPATCH, QUARTER WHEEL HOUSE, NO.1

main61643-24010iKZJ95,VZJ95199604-200209

9010508341

main90105-08341

9011506166

main90115-06166

9015960038

main90159-60038

9015960586

main90159-60586

9016850054

main90168-50054

9017908017

main90179-08017

9018305047

main90183-05047

9018906029

main90189-06029

9033335002

main90333-35002

9046711092

main90467-11092

9095001234

main90950-01234

9095001668

main90950-01668

9095001884

main90950-01884

9095001885

main90950-01885

9095001902

main90950-01902

9095001903

main90950-01903

9095006060

main90950-06060

65 parts on this diagram · 1 diagram in section
