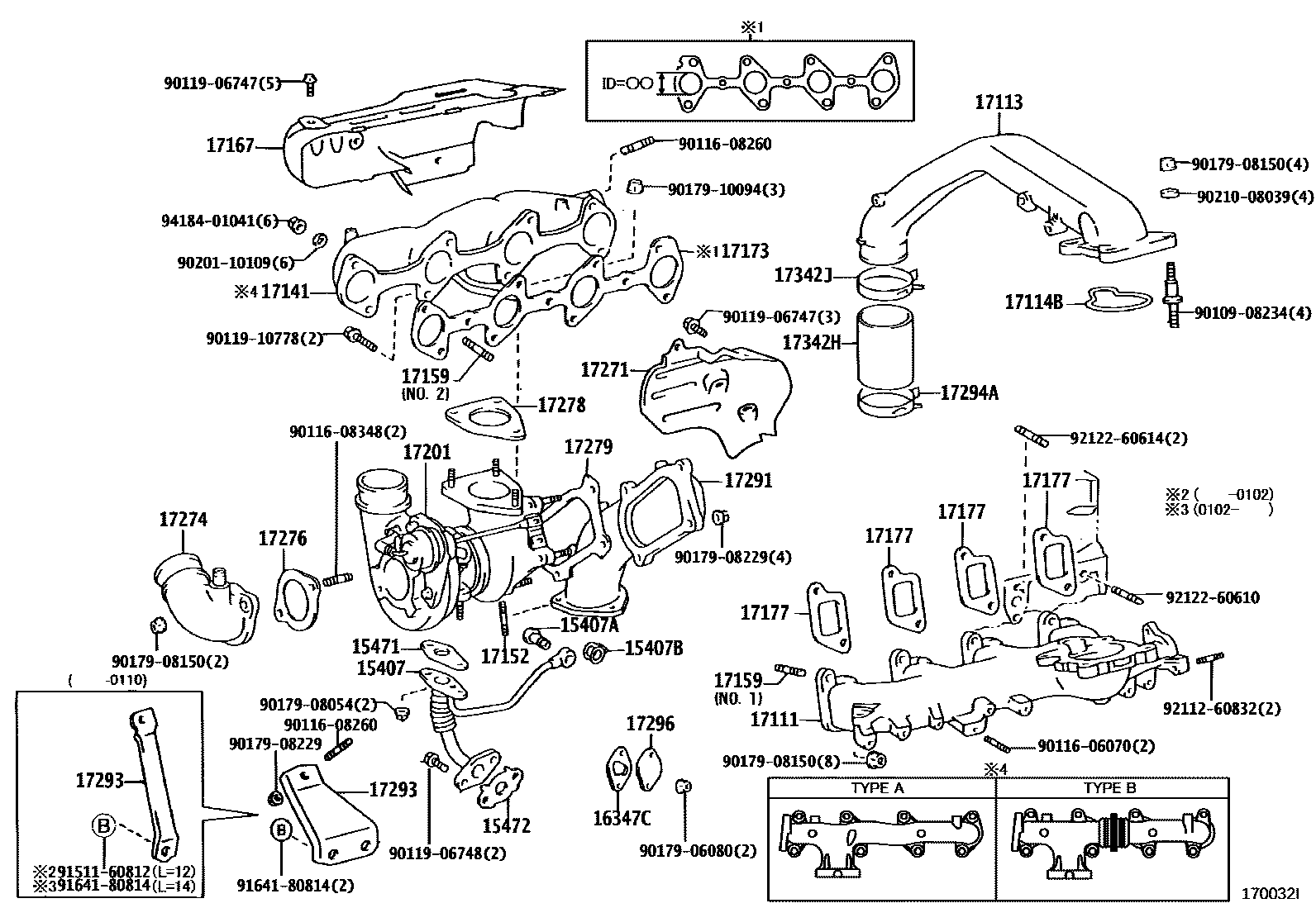

MANIFOLD
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
15407BGASKET(FOR TURBO OIL INLET PIPE)
15472GASKET, TURBO OIL OUTLET, NO.1
sub15472-30010
16347GASKET, WATER BY-PASS
16347CGASKET(FOR TURBO WATER PIPE)
17114BGASKET, INTAKE FLANGE
17141MANIFOLD, EXHAUST
RUSSIA & CIS SPEC
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
NO.2
NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
ID=37
ID=37
17201TURBOCHARGER SUB-ASSY
17274ELBOW, COMPRESSOR INLET
17276GASKET, COMPRESSOR INLET
17278GASKET, TURBO TO EXHAUST MANIFOLD
17291ELBOW, TURBINE OUTLET
17293STAY, TURBOCHARGER
17294HOSE, ACTUATOR
17294ACLIP(FOR ACTUATOR HOSE)
sub96132-51100
17296PLATE, BEARING HOUSING, SIDE
17342JCLIP, HOSE(FOR INTAKE PIPE)
9010908234
main90109-08234
9011606070
main90116-06070
9011608260
main90116-08260
9011608348
main90116-08348
9011906747
main90119-06747
9011906748
main90119-06748
9011910778
main90119-10778
9017906080
main90179-06080
9017908054
main90179-08054
9017908150
main90179-08150
9017908229
main90179-08229
9017910094
main90179-10094
9020110109
main90201-10109
9021008039
main90210-08039
9151160812
main91511-60812
9164180814
main91641-80814
9211260832
main92112-60832
9212260610
main92122-60610
9212260614
main92122-60614
9418401041
main94184-01041
49 parts on this diagram · 5 diagrams in section
