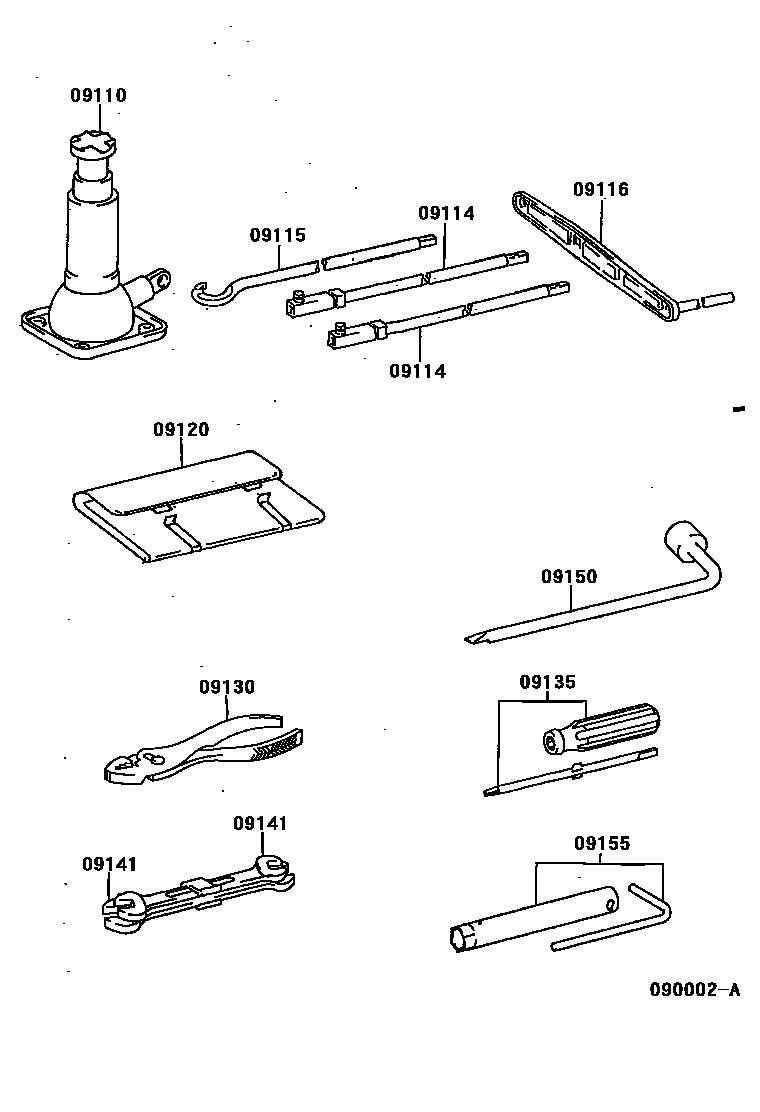

STANDARD TOOL

09110JACK ASSY

main09110-60090iKZJ9#,VZJ9#199604-199708

sub09111-60075

main09110-60120iKZJ9#,VZJ9#199708-199711

sub09111-60073

main09111-60073iKZJ9#,VZJ9#199711-199802

sub09111-60075

main09111-60074iKZJ9#,VZJ9#199802-199805

sub09111-60075

main09111-60075iKZJ9#,VZJ9#199805-200209

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60070iKZJ9#,VZJ9#199604-200209

09115ROD SUB-ASSY, JACK HANDLE

main09115-28030iKZJ9#,VZJ9#199604-200209

09116LEVER, JACK HANDLE

main09116-60010iKZJ9#,VZJ9#199604-200209

09120BAG, TOOL

main09120-60130iKDJ9#,KZJ9#,VZJ9#199604-200209

09130PLIERS

main99913-11500iKDJ9#,KZJ9#,VZJ9#199604-200209

09135DRIVER, SCREW

main99915-10700iKZJ9#,VZJ9#199604-200209

09141SPANNER

main99914-10810iKDJ9#,KZJ9#,VZJ9#199604-200209

8 X 10

main99914-11214iKZJ9#,VZJ9#199604-200209

12 X 14

09150WRENCH, HUB NUT BOX

main09150-35070iKZJ9#,VZJ9#199604-200209

09155WRENCH, SPARK PLUG

main09155-74010iVZJ9#199604-200209

10 parts on this diagram · 1 diagram in section
