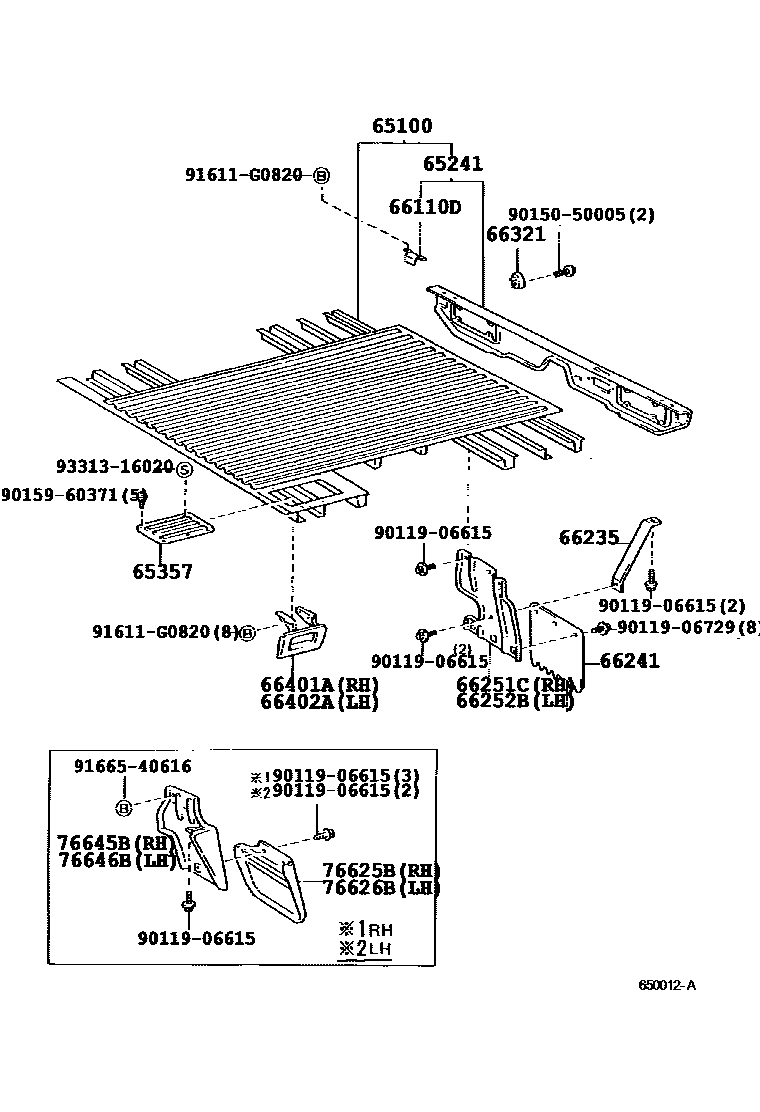

REAR BODY FLOOR & FENDER

65100FLOOR ASSY, REAR BODY

main65100-60160iHZJ79199908-200108

AUSTRIA OR NETHERLANDS OR FRANCE OR BELGIM SPEC

main65100-60170iHZJ79199908-200108

main65100-90K09iPZJ75..PIC199001-199006

BELGIM SPEC

main65100-90K12iHZJ75..PIC199305-199908

65241SILL, REAR CROSS

main65240-90K01iHZJ79199908-200108

AUSTRIA OR NETHERLANDS OR FRANCE OR BELGIM SPEC

main65240-90K02iHZJ75,79,PZJ75..PIC199001-200108

65357COVER, FRONT FLOOR CORNER

main65357-90K00×2iHZJ75,79,PZJ75..PIC199001-200108

66110DHINGE ASSY, TAIL GATE

main66110-95014×2iHZJ75..PIC199305-199908

66235STAY, REAR FENDER, NO.1

main66235-90K00×2iHZJ75,PZJ75..PIC199001-199305

66241MUDGUARD, REAR

main66241-60010×2iHZJ75,PZJ75..PIC199105-199305

main66241-90K00×2iPZJ75..PIC199001-199105

66251CSUPPORT, MUDGUARD REAR, RH

main66251-90K00iHZJ75,PZJ75..PIC199001-199305

66252BSUPPORT, MUDGUARD, REAR LH

main66252-90K00iHZJ75..PIC199305-199708

66321BUMPER, GATE RUBBER

main66321-90K00×4iHZJ75..PIC199305-199908

66401APANEL SUB-ASSY, DECK SIDE STEP, RH

main66401-60010×2iHZJ79199908-200108

main66401-90K00iHZJ75,PZJ75..PIC199001-199305

66402APANEL SUB-ASSY, DECK SIDE STEP, LH

main66402-90K00iHZJ75,PZJ75..PIC199001-199305

76625BMUDGUARD, REAR BODY, RH

main76625-60100iHZJ75..PIC199305-199908

main76625-90K02iHZJ75,PZJ75..PIC199001-199305

76626BMUDGUARD, REAR BODY, LH

main76626-60100iHZJ75..PIC199305-199908

main76626-90K02iHZJ75,PZJ75..PIC199001-199305

76645BBRACKET, REAR BODY MUDGUARD, RH

main76607-90K02iHZJ75..PIC199305-199908

76646BBRACKET, REAR BODY MUDGUARD, LH

main76608-90K02iHZJ75,79,PZJ75..PIC199001-200108

9011906615

main90119-06615

9011906729

main90119-06729

9015050005

main90150-50005

9015960371

main90159-60371

91611G0820

main91611-G0820

9166540616

main91665-40616

9331316020

main93313-16020

22 parts on this diagram · 1 diagram in section
