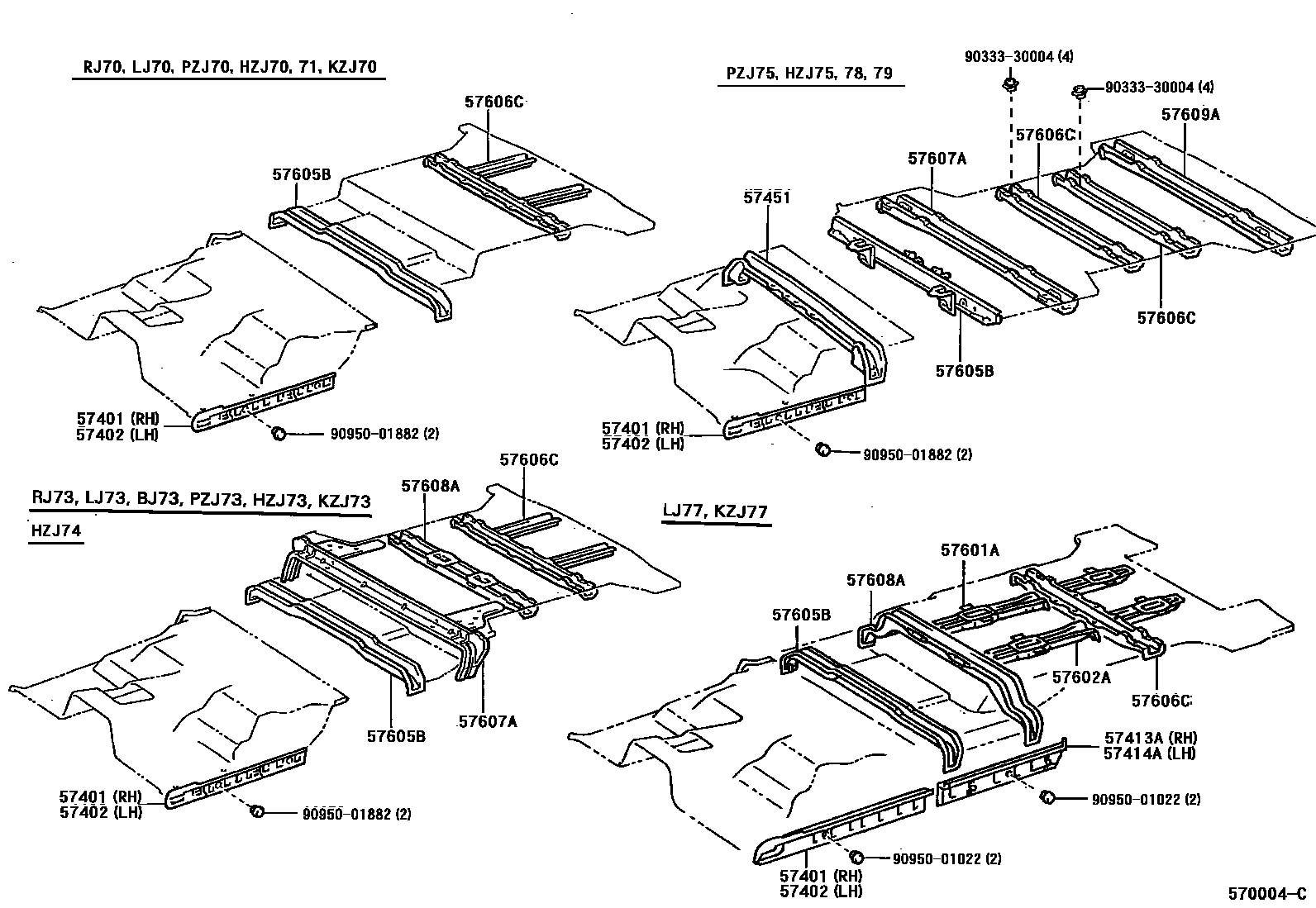

FLOOR MEMBER

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-60040iLJ77199004-199305

main57401-90K00iBJ73,HZJ7#,KZJ70,73,LJ7#,RJ7#199305-199908

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-60060iLJ77199004-199305

main57402-90K00iHZJ7#199908-200108

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57413-60020iLJ77199004-199305

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57414-60020iLJ77199004-199305

57451MEMBER, FRONT FLOOR CROSS

main57408-60050iHZJ78,79199908-200108

main57408-90K03iHZJ75,PZJ75199001-199305

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-60060iLJ77199004-199305

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-60030iKZJ77199305-199604

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-60070iHZJ70;LJ70..RHD..LX199004-199305

W/O REAR SEAT

main57605-90K09iHZJ75..HT199305-199908

main57605-90K17iHZJ70;LJ70..RHD..LX199001-199004

W/O REAR SEAT

main57605-90K19iHZJ70,LJ70,PZJ70,RJ70199001-199103

main57605-90K20iBJ73,HZJ70,73,KZJ7#,LJ7#,RJ7#199305-199908

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-60090iLJ77199004-199305

main57606-90K04iHZJ71200006-200108

main57606-90K05iBJ73,HZJ73,74,LJ73,PZJ73,RJ73; HZJ71,RJ70..DSL,EFI199001-200108

W/O REAR SEAT OR W(REAR PARALLEL SEAT)

main57606-90K10iHZJ75..HT199305-199908

FR

main57606-90K12iHZJ75..HT199305-199908

RR

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-90K00iBJ73,HZJ73,KZJ73,LJ73,RJ73199305-199908

main57607-90K03iHZJ73,LJ73,PZJ73; RJ73199005-199305

W/O REAR SEAT; W/O REAR SEAT OR W(PARALLEL SEAT)

main57607-90K08iHZJ78199908-200108

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-60030iLJ77199004-199305

main57608-90K09iBJ73,HZJ73,KZJ73,LJ73,RJ73199305-199908

main57655-90K03iHZJ73,LJ73,PZJ73; RJ73199005-199305

W/O REAR SEAT; W/O REAR SEAT OR W(PARALLEL SEAT)

57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-90K03iPZJ75..HT199001-199208

W(*FFRS & REAR HEDREST) OR W/O REAR SEAT

main57609-90K04iHZJ78199908-200108

9033330004

main90333-30004

9095001022

main90950-01022

9095001882

main90950-01882

15 parts on this diagram · 1 diagram in section
