EPC Data

INSTRUMENT PANEL & GLOVE COMPARTMENT

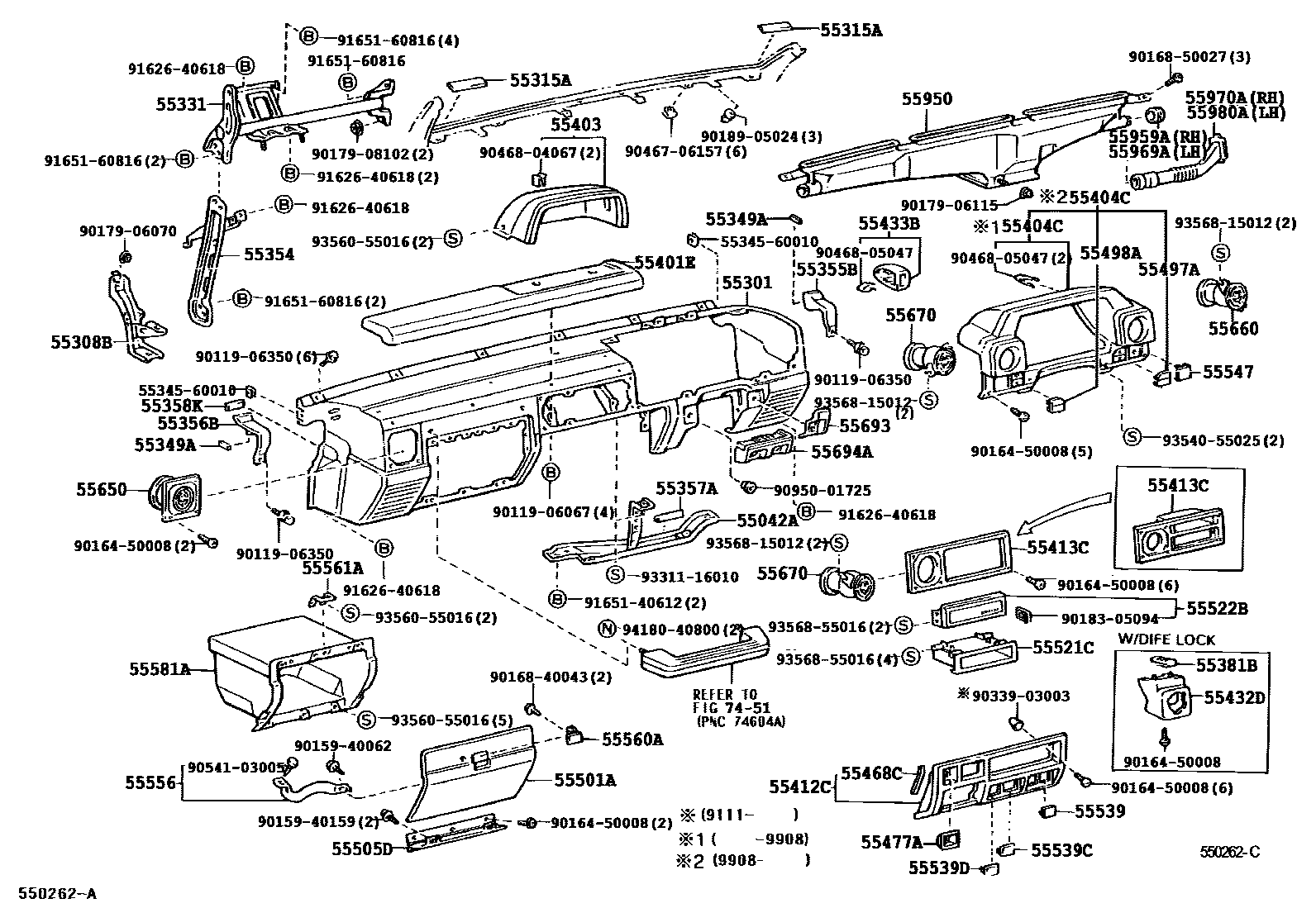

Parts diagram
55042AREINFORCEMENT SUB-ASSY, CLUSTER FINISH PANEL
main55042-90K00-06i199305-199501
LIGHT SABLE,TRIM4#
main55042-90K00-13i199001-199305
LIGHT GRAY,TRIM1#
main55042-90K00-E0i199501-199604
LT.OAK,TRIM4#
main55042-90K01-06i199001-199305
LIGHT SABLE,TRIM4#
main55042-90K01-10i199908-200108
SLATE GRAY,TRIM1#
main55042-90K01-13i199305-199908
LIGHT GRAY,TRIM1#
main55042-90K01-E0i199501-199908
LT.OAK,TRIM4#
55301PANEL SUB-ASSY, INSTRUMENT
main55301-60140-03i199001-199208
W(DIFFERENTIAL LOCK),LIGHT GRAY,TRIM1#
main55301-60140-06i199001-199208
W(DIFFERENTIAL LOCK),LIGHT SABLE,TRIM4#
main55301-60141-B0i199208-199301
W(DIFFERENTIAL LOCK),LIGHT GRAY,TRIM1#
main55301-60141-E0i199208-199301
W(DIFFERENTIAL LOCK),LIGHT SABLE,TRIM4#
main55301-60142-B0i199301-199305
W(DIFFERENTIAL LOCK),LIGHT GRAY,TRIM1#
main55301-60142-E0i199301-199305
W(DIFFERENTIAL LOCK),LIGHT SABLE,TRIM4#
main55301-60142-E1i199501-199604
W(DIFFERENTIAL LOCK),LT.OAK,TRIM4#
main55301-60150-03i199108-199208
W(DIFFERENTIAL LOCK),LIGHT GRAY,TRIM1#
main55301-60150-06i199108-199208
W(DIFFERENTIAL LOCK),LIGHT SABLE,TRIM4#
main55301-60151-B0i199208-199301
W(DIFFERENTIAL LOCK),LIGHT GRAY,TRIM1#
main55301-60151-E0i199208-199301
W(DIFFERENTIAL LOCK),LIGHT SABLE,TRIM4#
main55301-60152-B0i199301-200108
W(DIFFERENTIAL LOCK),LIGHT GRAY,TRIM1#
main55301-60152-E0i199305-199501
W(DIFFERENTIAL LOCK),LIGHT SABLE,TRIM4#
main55301-60152-E1i199908-200108
W(DIFFERENTIAL LOCK),LT.OAK,TRIM4#
main55301-60160-03i199001-199208
*FRG,LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#
main55301-60160-06i199001-199208
*FRG,LIGHT SABLE,TRIM4#; LIGHT SABLE,TRIM4#
main55301-60161-B0i199208-199301
*FRG,LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#
main55301-60161-E0i199208-199301
*FRG,LIGHT SABLE,TRIM4#; LIGHT SABLE,TRIM4#
main55301-60162-B0i199501-199604
AUSTRIA OR ITALY OR HOLLAND SPEC,LIGHT GRAY,TRIM1#
main55301-60162-E0i199305-199501
GERMANY SPEC,LIGHT SABLE,TRIM4#
main55301-60162-E1i199501-199604
*FRG,LT.OAK,TRIM4#; AUSTRIA OR ITALY OR HOLLAND SPEC,LT.OAK,TRIM4#
main55301-60190-03i199001-199208
W(DIFFERENTIAL LOCK),LIGHT GRAY,TRIM1#
main55301-60190-06i199001-199208
W(DIFFERENTIAL LOCK),LIGHT SABLE,TRIM4#
main55301-60191-B0i199208-199301
W(DIFFERENTIAL LOCK),LIGHT GRAY,TRIM1#
main55301-60191-E0i199208-199301
W(DIFFERENTIAL LOCK),LIGHT SABLE,TRIM4#
main55301-60192-B0i199305-199604
W(DIFFERENTIAL LOCK),LIGHT GRAY,TRIM1#
main55301-60192-E0i199301-199305
W(DIFFERENTIAL LOCK),LIGHT SABLE,TRIM4#
main55301-60192-E1i199501-199604
W(DIFFERENTIAL LOCK),LT.OAK,TRIM4#
main55301-60210-03i199001-199208
W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60210-06i199001-199208
W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60211-B0i199208-199301
W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60211-E0i199208-199301
W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60212-B0i199301-199305
W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60212-E0i199305-199501
W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60212-E1i199501-199604
W(DIFFERENTIAL LOCK & ACCESSORY METER),LT.OAK,TRIM4#
main55301-60220-03i199108-199208
W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60220-06i199001-199108
W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60221-B0i199208-199301
W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60221-E0i199208-199301
W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60222-B0i199301-199305
W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60222-E0i199305-199501
W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60222-E1i199501-199908
W(DIFFERENTIAL LOCK & ACCESSORY METER),LT.OAK,TRIM4#
main55301-60230-03i199001-199208
*FRG & W(ACCESSORY METER),LIGHT GRAY,TRIM1#; W(ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60230-06i199001-199208
*FRG & W(ACCESSORY METER),LIGHT SABLE,TRIM4#; W(ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60231-B0i199208-199301
*FRG & W(ACCESSORY METER),LIGHT GRAY,TRIM1#; W(ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60231-E0i199208-199301
*FRG & W(ACCESSORY METER),LIGHT SABLE,TRIM4#; W(ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60232-B0i199305-199604
*FRG & W(ACCESSORY METER),LIGHT GRAY,TRIM1#; W(ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60232-E0i199305-199501
*FRG & W(ACCESSORY METER),LIGHT SABLE,TRIM4#; W(ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60232-E1i199501-199604
*FRG & W(ACCESSORY METER),LT.OAK,TRIM4#; W(ACCESSORY METER),LT.OAK,TRIM4#
main55301-60240-03i199001-199208
W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60240-06i199108-199208
*FRG & W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60241-B0i199208-199301
*FRG & W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT GRAY,TRIM1#; W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60241-E0i199208-199301
*FRG & W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT SABLE,TRIM4#; W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60242-B0i199305-199604
*FRG & W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT GRAY,TRIM1#; W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60242-E0i199305-199501
*FRG & W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT SABLE,TRIM4#; W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60242-E1i199501-199604
*FRG & W(DIFFERENTIAL LOCK & ACCESSORY METER),LT.OAK,TRIM4#; W(DIFFERENTIAL LOCK & ACCESSORY METER),LT.OAK,TRIM4#
main55301-60250-03i199001-199208
LIGHT GRAY,TRIM1#
main55301-60250-06i199001-199208
LIGHT SABLE,TRIM4#
main55301-60251-B0i199208-199301
LIGHT GRAY,TRIM1#
main55301-60251-E0i199208-199301
LIGHT SABLE,TRIM4#
main55301-60252-B0i199305-199604
LIGHT GRAY,TRIM1#
main55301-60252-E0i199305-199501
LIGHT SABLE,TRIM4#
main55301-60252-E1i199501-199604
LT.OAK,TRIM4#
main55301-60270-03i199001-199208
W(DIFFERENTIAL LOCK),LIGHT GRAY,TRIM1#
main55301-60270-06i199001-199208
W(DIFFERENTIAL LOCK),LIGHT SABLE,TRIM4#
main55301-60271-B0i199208-199301
*FRG & W(DIFFERENTIAL LOCK),LIGHT GRAY,TRIM1#; W(DIFFERENTIAL LOCK),LIGHT GRAY,TRIM1#
main55301-60271-E0i199208-199301
*FRG & W(DIFFERENTIAL LOCK),LIGHT SABLE,TRIM4#; W(DIFFERENTIAL LOCK),LIGHT SABLE,TRIM4#
main55301-60272-B0i199301-199305
*FRG & W(DIFFERENTIAL LOCK),LIGHT GRAY,TRIM1#; W(DIFFERENTIAL LOCK),LIGHT GRAY,TRIM1#
main55301-60272-E0i199301-199305
*FRG & W(DIFFERENTIAL LOCK),LIGHT SABLE,TRIM4#; W(DIFFERENTIAL LOCK),LIGHT SABLE,TRIM4#
main55301-60272-E1i199501-199604
*FRG & W(DIFFERENTIAL LOCK),LT.OAK,TRIM4#; W(DIFFERENTIAL LOCK),LT.OAK,TRIM4#
main55301-60280-B0i199208-199301
LIGHT GRAY,TRIM1#
main55301-60280-E0i199208-199301
LIGHT SABLE,TRIM4#
main55301-60281-B0i199305-199604
LIGHT GRAY,TRIM1#
main55301-60281-E0i199301-199305
LIGHT SABLE,TRIM4#
main55301-60281-E1i199501-199604
LT.OAK,TRIM4#
main55301-60290-B0i199208-199301
W(ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60290-E0i199208-199301
W(ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60291-B0i199301-199305
W(ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60291-E0i199305-199501
W(ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60291-E1i199501-199604
W(ACCESSORY METER),LT.OAK,TRIM4#
main55301-60300-B0i199208-199301
LIGHT GRAY,TRIM1#
main55301-60300-E0i199208-199301
LIGHT SABLE,TRIM4#
main55301-60301-B0i199908-200108
LIGHT GRAY,TRIM1#
main55301-60301-E0i199305-199501
LIGHT SABLE,TRIM4#
main55301-60301-E1i199501-199908
LT.OAK,TRIM4#
main55301-60310-B0i199208-199301
W(ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60310-E0i199208-199301
W(ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60311-B0i199301-199305
W(ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-60311-E0i199305-199501
W(ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-60311-E1i199501-199908
W(ACCESSORY METER),LT.OAK,TRIM4#
main55301-90K22-06i199001-199208
LIGHT SABLE,TRIM4#
main55301-90K22-13i199001-199208
LIGHT GRAY,TRIM1#
main55301-90K24-06i199001-199208
W(ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-90K24-13i199001-199208
W(ACCESSORY METER),LIGHT GRAY,TRIM1#
main55301-90K29-06i199001-199208
LIGHT SABLE,TRIM4#
main55301-90K29-13i199001-199208
LIGHT GRAY,TRIM1#
main55301-90K31-06i199001-199208
W(ACCESSORY METER),LIGHT SABLE,TRIM4#
main55301-90K31-13i199001-199208
W(ACCESSORY METER),LIGHT GRAY,TRIM1#
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
main55308-60010i199305-199908
main55308-60030i199908-200108
main55308-90K00-06i199001-199305
LIGHT SABLE,TRIM4#
main55308-90K00-13i199001-199305
LIGHT GRAY,TRIM1#
main55308-90K01i199507-199604
NORWAY SPEC
main55308-90K01-06i199001-199011
NORWAY SPEC OR ICELAND SPEC,LIGHT SABLE,TRIM4#; NORWAY SPEC,LIGHT SABLE,TRIM4#; SWEDEN SPEC,LIGHT SABLE,TRIM4#
main55308-90K01-13i199011-199108
ICELAND SPEC,LIGHT GRAY,TRIM1#; NORWAY SPEC OR DENMARK SPEC,LIGHT GRAY,TRIM1#; SWEDEN SPEC OR DENMARK SPEC,LIGHT GRAY,TRIM1#
main55308-90K01-E0i199501-199507
DENMARK SPEC,LT.OAK,TRIM4#; ICELAND,LT.OAK,TRIM4#; LT.OAK,TRIM4#; NORWAY SPEC,LT.OAK,TRIM4#
55315ASPACER, INSTRUMENT PANEL, NO.1
main55315-60050×2i199908-200108
55331REINFORCEMENT, INSTRUMENT PANEL
main55305-90K00i199001-200108
main55305-90K01i199305-199604
55349ACUSHION, INSTRUMENT PANEL
main55349-90K00×2i199001-199305
55354BRACE, INSTRUMENT PANEL TO FLOOR
main55309-60050i199908-200108
main55309-90K00-11i199305-199908
BLACK,TRIM1#,4#
main55309-90K01i199501-199604
main55309-90K01-11i199001-199305
BLACK,TRIM1#,4#
55355BPLATE, INSTRUMENT PANEL, RH
main55355-60110-B0i200003-200108
SLATE GRAY,TRIM1#
main55355-60110-E0i200003-200108
MD.OAK,TRIM4#
main55355-90K00-06i199001-199305
LIGHT SABLE,TRIM4#
main55355-90K00-13i199001-199305
LIGHT GRAY,TRIM1#
main55355-90K00-B0i199908-200003
SLATE GRAY,TRIM1#
main55355-90K00-E0i199501-199908
LT.OAK,TRIM4#
main55355-90K01-06i199305-199501
LIGHT SABLE,TRIM4#
main55355-90K01-13i199001-199305
LIGHT GRAY,TRIM1#
main55355-90K01-B0i199908-200108
SLATE GRAY,TRIM1#
main55355-90K01-E0i199501-199908
LT.OAK,TRIM4#
55356BPLATE, INSTRUMENT PANEL, LH
main55356-60100-B0i200003-200108
SLATE GRAY,TRIM1#
main55356-60100-E0i200003-200108
MD.OAK,TRIM4#
main55356-90K00-06i199001-199305
LIGHT SABLE,TRIM4#
main55356-90K00-13i199305-199908
LIGHT GRAY,TRIM1#
main55356-90K00-B0i199908-200003
SLATE GRAY,TRIM1#
main55356-90K00-E0i199501-199908
LT.OAK,TRIM4#
main55356-90K01-06i199001-199305
LIGHT SABLE,TRIM4#
main55356-90K01-13i199305-199908
LIGHT GRAY,TRIM1#
main55356-90K01-B0i199908-200108
SLATE GRAY,TRIM1#
main55356-90K01-E0i199501-199908
LT.OAK,TRIM4#
55357APROTECTOR, EDGE, NO.1
main55357-90A00i199908-200108
55358KCUSHION, INSTRUMENT PANEL, NO.4
main55358-60010×2i199306-199908
55381BBRACKET, FINISH PANEL MOUNTING, NO.1
main55381-60020i199108-200108
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
main55401-90K00-13i199001-199305
BLUISH GRAY,TRIM1#
main55401-90K00-16i199001-199305
SABLE,TRIM4#
main55401-90K00-E0i199501-199604
OAK,TRIM4#
main55401-90K01-13i199001-199305
BLUISH GRAY,TRIM1#
main55401-90K01-16i199305-199501
SABLE,TRIM4#
main55401-90K01-B0i199908-200108
BLUISH GRAY,TRIM1#
main55401-90K01-E0i199501-199908
OAK,TRIM4#
main55401-90K02-13i199001-199305
BLUISH GRAY,TRIM1#; W(ACCESSORY METER),BLUISH GRAY,TRIM1#
main55401-90K02-16i199305-199501
SABLE,TRIM4#; W(ACCESSORY METER),SABLE,TRIM4#
main55401-90K02-E0i199501-199604
OAK,TRIM4#; W(ACCESSORY METER),OAK,TRIM4#
main55401-90K03-13i199305-199908
W(ACCESSORY METER),BLUISH GRAY,TRIM1#
main55401-90K03-16i199305-199501
W(ACCESSORY METER),SABLE,TRIM4#
main55401-90K03-E0i199501-199908
W(ACCESSORY METER),OAK,TRIM4#
55403HOOD SUB-ASSY, METER
main55403-90K00-13i199001-199305
BLUISH GRAY,TRIM1#
main55403-90K00-16i199001-199305
SABLE,TRIM4#
main55403-90K00-E0i199501-199908
OAK,TRIM4#
55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
main55404-60050-B0i199208-199304
BLUISH GRAY,TRIM1#
main55404-60050-E0i199208-199304
SABLE,TRIM4#
main55404-60160-B0i199908-200108
BLUISH GRAY,TRIM1#
main55404-60160-E0i199908-200108
OAK,TRIM4#
main55404-90K01-13i199001-199208
BLUISH GRAY,TRIM1#
main55404-90K01-16i199304-199305
SABLE,TRIM4#
main55404-90K01-E1i199501-199908
OAK,TRIM4#
55412CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1
main55412-60070i199308-199604
main55412-60080i199908-200108
main55412-90K02-13i199001-199305
LIGHT GRAY,TRIM1#
main55412-90K02-16i199305-199308
LIGHT SABLE,TRIM4#
main55412-90K04-06i199001-199305
LIGHT SABLE,TRIM4#
main55412-90K04-13i199001-199305
LIGHT GRAY,TRIM1#
55413CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2
main55413-90K00i199908-200108
W/O(RADIO)
main55413-90K02i199908-200108
main55413-90K03i199305-199604
55432DPANEL, INSTRUMENT PANEL FINISH, LOWER NO.1
main55432-60090-03i199001-199108
LIGHT GRAY,TRIM1#
main55432-60090-06i199108-199305
LIGHT SABLE,TRIM4#
main55432-60090-E0i199501-199908
LT.OAK,TRIM4#
main55432-60090-S7i199908-200108
SLATE GRAY,TRIM1#
55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
main55433-60010-03i199708-199908
LIGHT GRAY,TRIM1#
main55433-60010-06i199305-199501
LIGHT SABLE,TRIM4#
main55433-60010-E0i199908-200108
MD.OAK,TRIM4#
main55433-60010-S7i199908-200108
SLATE GRAY,TRIM1#
55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1
main55468-90K00i199001-200108
55477ABEZEL, CIGARETTE LIGHTER HOLE
main55477-90K00-11i199001-199305
BLACK,TRIM1#,4#
main55477-90K01-11i199908-200108
BLACK,TRIM1#,4#
55497AREFLECTOR, WARNING LAMP, RH
main55497-60010i199305-199604
main55497-90K00i199001-199305
main55497-90K03i199001-200108
55498AREFLECTOR, WARNING LAMP, LH
main55498-60040i199208-199304
main55498-90K01i199001-199208
main55498-90K03i199708-199908
55501ADOOR SUB-ASSY, GLOVE COMPARTMENT
main55501-90K00-06i199001-199305
LIGHT SABLE,TRIM4#
main55501-90K00-13i199305-199908
LIGHT GRAY,TRIM1#
main55501-90K00-E0i199501-199908
LT.OAK,TRIM4#
main55501-90K01-06i199001-199305
LIGHT SABLE,TRIM4#; W(GLOVE BOX KEY),LIGHT SABLE,TRIM4#
main55501-90K01-13i199305-199908
W(GLOVE BOX KEY),LIGHT GRAY,TRIM1#
main55501-90K01-B0i199908-200108
SLATE GRAY,TRIM1#
main55501-90K01-E0i199908-200108
LT.OAK,TRIM4#
55505DHINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
main55505-60010i199908-200108
main55505-90K00i199001-199305
55521CCOVER, STEREO OPENING
main55521-16010i199001-200108
main55521-16030i199908-200108
55522BCOVER, RADIO TUNER OPENING
main55522-14070i199305-199908
main55522-32010i199001-200108
W/O(RADIO)
55539COVER, SPARE SWITCH HOLE
main55539-32010-11i199001-199305
BLACK,TRIM1#,4#
main55539-32010-C0i199708-199908
BLACK,TRIM1#,4#
55539CCOVER, SPARE SWITCH HOLE
main55539-32010-11i199305-199308
BLACK,TRIM1#,4#
main55539-32010-C0i199908-200108
BLACK,TRIM1#,4#
55539DCOVER, SPARE SWITCH HOLE
main55539-32010-11i199305-199308
BLACK,TRIM1#,4#
main55539-32010-C0i199308-199908
BLACK,TRIM1#,4#
55547COVER, REMOTE CONTROL MIRROR HOLE
main55547-90K00×2i199908-200108
W(ONE TOUCH 2-4 SELECTOR)
55556ARM, GLOVE COMPARTMENT DOOR CHECK
main55556-90K00i199001-199305
main55556-90K01i199305-199908
55560ALOCK ASSY, GLOVE COMPARTMENT DOOR
main55560-90K00-11i199305-199908
BLACK,TRIM1#,4#
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
main55561-90K00i199305-199908
55581ACOMPARTMENT, GLOVE
main55581-90K00i199908-200108
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-60040i199305-199908
main55650-90K00-11i199001-199305
BLACK,TRIM1#,4#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
main55660-60060i199908-200108
main55660-90K00-11i199001-199305
BLACK,TRIM1#,4#
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
main55660-60060×2i199305-199908
main55660-90K00-11×2i199001-199305
BLACK,TRIM1#,4#
55693PROTECTOR, CONTROL KNOB, NO.1
main55693-90K01-13i199001-199305
LIGHT GRAY,TRIM1#
main55693-90K01-16i199001-199305
LIGHT SABLE,TRIM4#
main55693-90K01-E0i199501-199604
LT.OAK,TRIM4#
55694APROTECTOR, CONTROL KNOB, NO.2
main55694-60010i199410-199501
*FRG; GERMANY SPEC OR ITALY SPEC; ITALY SPEC
main55694-60010-B0i199305-199410
*FRG,LIGHT GRAY,TRIM1#; GERMANY SPEC OR ITALY SPEC,LIGHT GRAY,TRIM1#; ITALY SPEC,LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#
main55694-60010-E0i199305-199410
*FRG,LIGHT SABLE,TRIM4#; GERMANY SPEC OR ITALY SPEC,LIGHT SABLE,TRIM4#; ITALY SPEC,LIGHT SABLE,TRIM4#; LIGHT SABLE,TRIM4#
main55694-60011i199501-199604
*FRG; GERMANY SPEC OR ITALY SPEC
main55694-60020i199305-199604
main55694-90K01i199001-199305
*FRG
main55694-90K02-13i199001-199305
LIGHT GRAY,TRIM1#
main55694-90K02-16i199001-199305
LIGHT SABLE,TRIM4#
55950NOZZLE ASSY, DEFROSTER
main55950-60030i199305-199604
main55950-90K01-11i199908-200108
BLACK,TRIM1#,4#
main55950-90K02i199001-199211
55959ACOVER, DEFROSTER NOZZLE OPENING, NO.1
main55959-14010i199908-200108
55969ACOVER, DEFROSTER NOZZLE OPENING, NO.2
main55959-14010i199001-200108
55970ADUCT ASSY, SIDE DEFROSTER, RH
main55970-90K00i199001-200108
55980ADUCT ASSY, SIDE DEFROSTER, LH
main55970-90K00i199001-200108
7451ARMREST & VISOR
→ Go to FIG 74-51
5534560010GARNISH, GLOVE COMPARTMENT, UPPER
main55345-60010
9011906067
main90119-06067
9011906350
main90119-06350
9015940062
main90159-40062
9015940159
main90159-40159
9016450008
main90164-50008
9016840043
main90168-40043
9016850027
main90168-50027
9017906070
main90179-06070
9017906115
main90179-06115
9017908102
main90179-08102
9018305094
main90183-05094
9018905024
main90189-05024
9033903003
main90339-03003
9046706157
main90467-06157
9046804067
main90468-04067
9046805047
main90468-05047
9054103005
main90541-03005
9095001725
main90950-01725
9162640618
main91626-40618
9165140612
main91651-40612
9165160816
main91651-60816
9331116010
main93311-16010
9354055025
main93540-55025
9356055016
main93560-55016
9356815012
main93568-15012
9356855016
main93568-55016
9418040800
main94180-40800

74 parts on this diagram · 2 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
