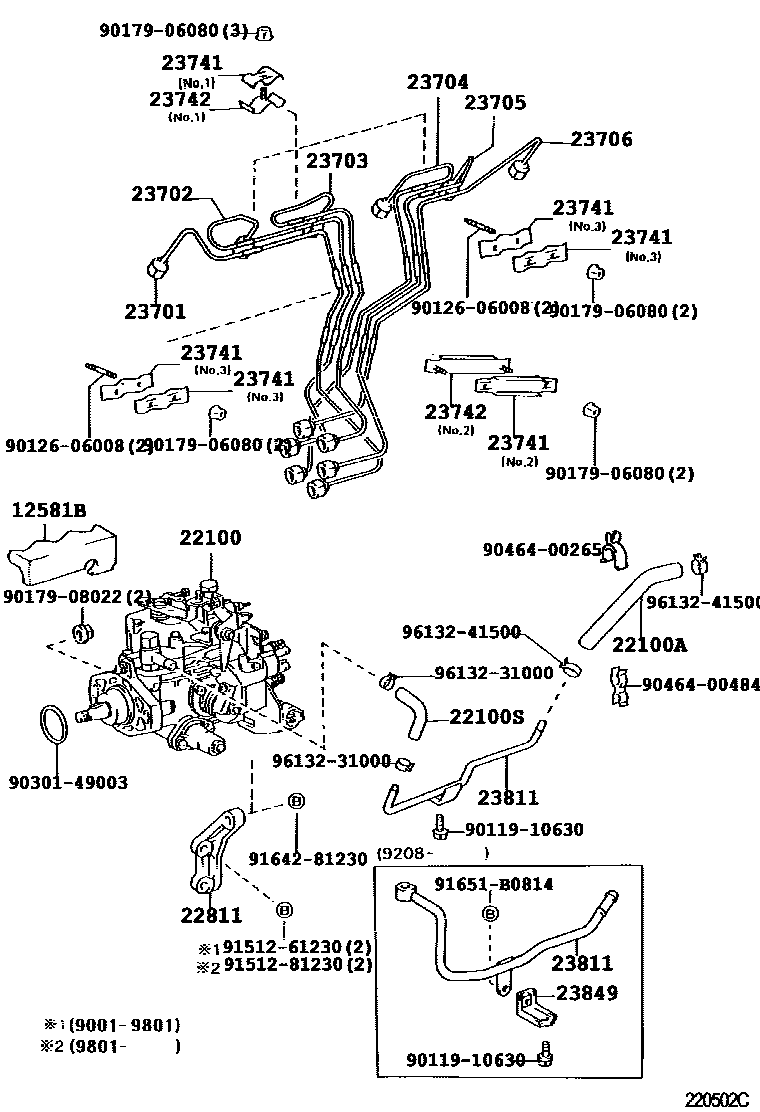

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1

12581BINSULATOR, CYLINDER BLOCK, NO.1

main12581-17010i1HZ..HZJ7#199001-199801

sub12581-17011

main12581-17011i1HZ..HZJ7#199801-200108

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-17100i1HZ..HZJ7#199001-199208

main22100-17110i1HZ..HZJ7#199001-199208

COLD SPEC

main22100-17630i1HZ..HZJ70,73199208-199401

main22100-17640i1HZ..HZJ70,73199208-199401

COLD SPEC

main22100-17650i1HZ..HZJ75199208-199401

sub22100-17651

main22100-17660i1HZ..HZJ75199208-199401

COLD SPEC

sub22100-17661

main22100-17810i1HZ..HZJ75199401-199805

sub22100-17820

main22100-17820i1HZ..HZJ70,73199401-199805

main22100-18010i1PZ..PZJ7#199001-199208

sub22100-18020

main22100-18030i1PZ..PZJ7#199001-199208

COLD SPEC

sub22100-18040

main22100-1C180i1HZ..HZJ7#199805-199908

main22100-1C350i1HZ..HZJ7#199908-200108

main22100-5B270i2LT..LJ7#199001-199501

main22100-5B280i2LT..LJ7#..LX199001-199501

AUSTRIA SPEC

main22100-67040i1KZT..KZJ7#199305-199604

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-17060i1PZ..PZJ7#199002-199208

*H,L=300

main23271-17150i1HZ..HZJ7#199908-200108

main23271-67010i1KZT..KZJ70..RHD199305-199604

L=500

main23271-67020i1KZT..KZJ7#..LHD199305-199604

L=580

main90447-14068i2LT..LJ70..RHD199001-199305

main90447-14069i2LT..LJ7#..LHD199001-199501

main95332-10030i1PZ..PZJ7#199001-199002

L=300

main95332-10040i1HZ..HZJ7#199208-199908

L=400(*H,L=340)

main95332-10040i1HZ..HZJ7#199001-199208

L=400(*H,L=320)

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23271-17050i1PZ..PZJ7#199001-199208

main90447-12004i1KZT..KZJ7#199305-199604

22811STAY, INJECTION PUMP, NO.1

main22811-17010i1PZ..PZJ7#199001-199505

sub22811-17011

main22811-17011i1HZ..HZJ7#199505-200108

main22811-54041i2LT..LJ7#199001-199501

sub22811-54042

main22811-67010i1KZT..KZJ7#199305-199604

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-17010i1HZ..HZJ7#199001-199401

main23701-17040i1HZ..HZJ7#199401-200108

main23701-18010i1PZ..PZJ7#199001-199208

main23701-54140i2LT..LJ7#199001-199501

main23701-67020i1KZT..KZJ7#199305-199507

sub23701-67021

main23701-67021i1KZT..KZJ7#199507-199604

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-17010i1HZ..HZJ7#199001-199401

main23702-17040i1HZ..HZJ7#199401-200108

main23702-18010i1PZ..PZJ7#199001-199208

main23702-54140i2LT..LJ7#199001-199501

main23702-67020i1KZT..KZJ7#199305-199604

sub23702-67021

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-17010i1HZ..HZJ7#199001-199401

main23703-17040i1HZ..HZJ7#199401-200108

main23703-18010i1PZ..PZJ7#199001-199208

main23703-54100i2LT..LJ7#199001-199501

main23703-67020i1KZT..KZJ7#199305-199507

sub23703-67021

main23703-67021i1KZT..KZJ7#199507-199604

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-17010i1HZ..HZJ7#199001-199401

main23704-17040i1HZ..HZJ7#199401-200108

main23704-18010i1PZ..PZJ7#199001-199208

main23704-54100i2LT..LJ7#199001-199501

main23704-67020i1KZT..KZJ7#199305-199604

23705PIPE SUB-ASSY, INJECTION, NO.5

main23705-17010i1HZ..HZJ7#199001-199401

main23705-17040i1HZ..HZJ7#199401-200108

main23705-18010i1PZ..PZJ7#199001-199208

23706PIPE SUB-ASSY, INJECTION, NO.6

main23706-17010i1HZ..HZJ7#199001-199401

main23706-17040i1HZ..HZJ7#199401-200108

23741CLAMP, INJECTION PIPE, NO.1

main23741-17010i1HZ..HZJ7#199001-200108

NO.1

main23741-17020i1HZ..HZJ7#199001-200108

NO.2

main23741-17030i1PZ..PZJ7#199001-200108

NO.3

main23741-54010i2LT..LJ7#199001-199501

NO.1

main23741-56010i2LT..LJ7#199001-199501

NO.2

main23741-64030i1KZT..KZJ7#199305-199604

23742CLAMP, INJECTION PIPE, NO.2

main23742-17010i1HZ..HZJ7#199001-200108

NO.1

main23742-17020i1HZ..HZJ7#199001-200108

NO.2

main23742-54010i2LT..LJ7#199001-199501

main23742-67010i1KZT..KZJ7#199305-199604

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-17010i1PZ..PZJ7#199001-199208

main23811-17020i1HZ..HZJ7#199208-200108

main23811-54150i2LT..LJ7#199001-199108

sub23811-54151

main23811-54151i2LT..LJ7#199108-199501

main23811-67020i1KZT..KZJ7#199305-199604

23849SUPPORT, FUEL

main23849-17010i1HZ..HZJ7#199208-200108

9011910630

main90119-10630

9012606008

main90126-06008

9017906080

main90179-06080

9017908022

main90179-08022

9030149003

main90301-49003

9046400265

main90464-00265

9046400484

main90464-00484

9151261230

main91512-61230

9151281230

main91512-81230

9164281230

main91642-81230

91651B0814

main91651-B0814

9613231000

main96132-31000

9613241500

main96132-41500

28 parts on this diagram · 4 diagrams in section
