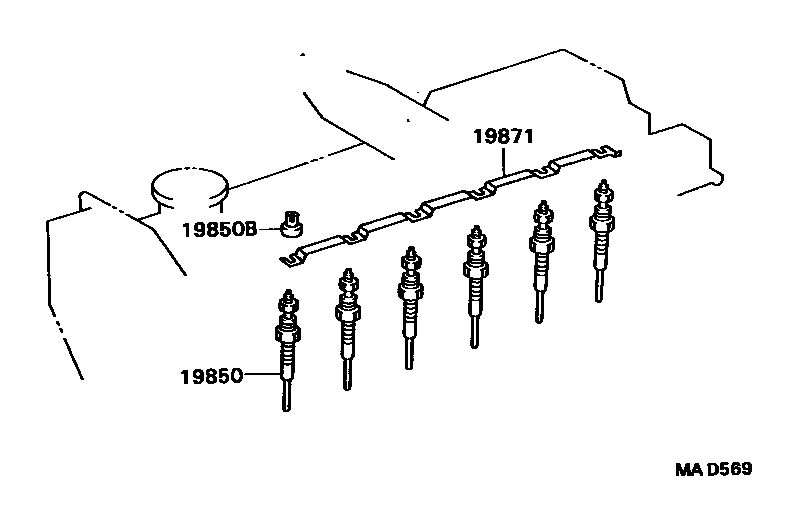

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1

19850PLUG ASSY, GLOW

main19850-17010i1HZ..HZJ7#199805-199908

*BV-GV=24V-23V

main19850-17020i1HZ..HZJ7#199908-200108

*BV-GV=12V-11V

main19850-54090i2LT..LJ7#199001-199501

*BV-GV=12V-11V

main19850-58010i1HZ..HZJ7#199001-199805

*BV-GV=24V-23V

main19850-67020i1KZT..KZJ7#199305-199604

*BV-GV=12V-11V

sub19850-67030

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i1KZT..KZJ7#199001-200108

19871CONNECTOR, GLOW PLUG NO.1

main19871-17010i1HZ..HZJ7#199001-200108

main19871-18010i1PZ..PZJ7#199001-199208

main19871-54020i2LT..LJ7#199001-199501

main19871-67020i1KZT..KZJ7#199305-199604

3 parts on this diagram · 5 diagrams in section
