AIR CLEANER

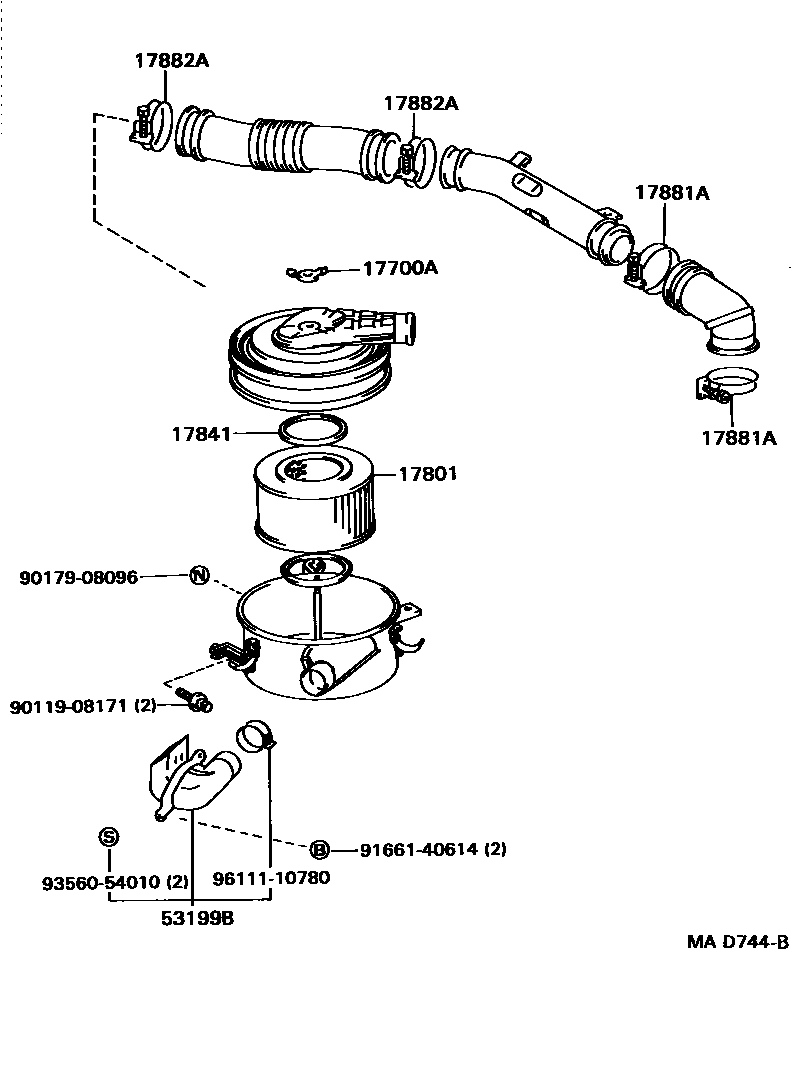

Parts diagram

17700CLEANER ASSY, AIR

main17700-17010i199001-199308

main17700-17011i199308-199501

main17700-17012i199501-200108

main17700-35180i199001-199305

main17700-35410i199001-199604

main17700-54640i199001-199501

main17700-67050i199305-199604

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i199001-199305

main90175-08008i199001-200108

main94271-00800i199001-199501

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-37010i199001-199305

main17801-54120i199001-199501

main17801-68020i199001-200108

main17801-68030i199305-199604

main17801-70020i199001-199604

17841GASKET, FILTER ELEMENT

main17841-41050i199001-199305

main17841-68010i199001-200108

17881HOSE, AIR CLEANER, NO.1

main17341-54010i199001-199501

main17881-17030i199001-200108

main17881-17040i199001-199208

main17881-35060i199003-199305

main17881-35110i199001-199604

main17881-37030i199001-199003

main17881-67020i199305-199604

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-70002i199007-199106

PIPE SIDE

main90460-70002i199305-199604

INLET ELBOW SIDE

main90460-75001i199007-199106

FLANGE SIDE

main90460-77002i199305-199604

AIR CLEANER SIDE

main90467-56001i199107-199501

PIPE SIDE

main90467-60001i199107-199501

FLANGE SIDE

main96111-10590i199001-199402

main96111-10800i199001-200108

17882HOSE, AIR CLEANER, NO.2

main17342-54010i199001-199101

main17342-54020i199101-199501

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-65004i199001-199008

main90460-65008i199008-199106

main90467-53002i199107-199501

main96111-10630i199001-199402

53199BDUCT SUB-ASSY, COOL AIR INTAKE

main53207-60050i199001-199305

main53207-60060i199001-199501

main53207-60070i199001-200108

main53207-60160i199305-199604

9011908171

main90119-08171

9017908096

main90179-08096

9166140614

main91661-40614

9356054010

main93560-54010

9611110780

main96111-10780

14 parts on this diagram · 8 diagrams in section
