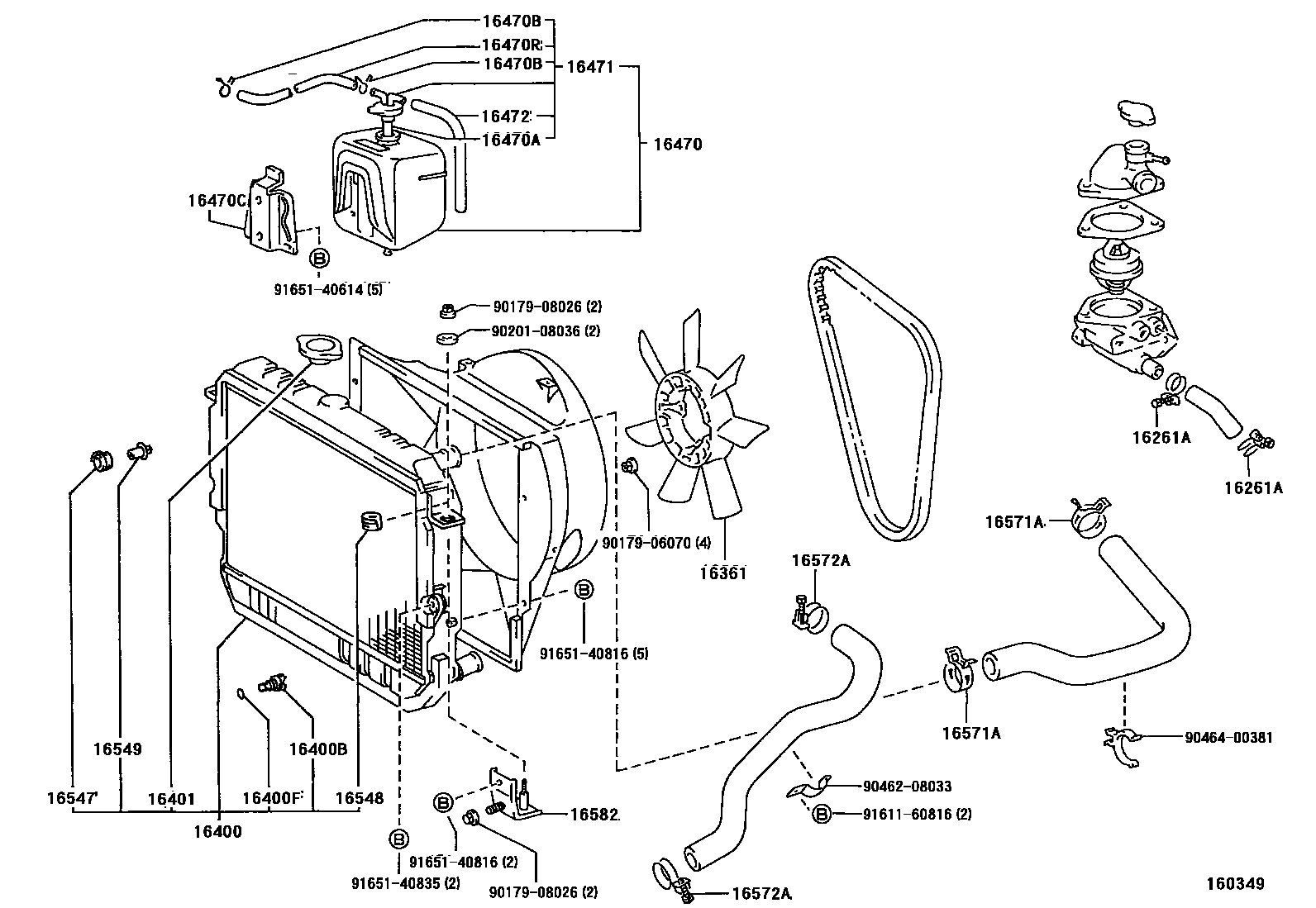

RADIATOR & WATER OUTLET
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51300
COLD SPEC
sub96134-41900
sub96132-51100
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO.1
L=600(*H,L=150)
L=600(*H,L=180),NO.2
L=600(*H,L=180),NO.1
L=315
L=600(*H,L=560),NO.1
L=600(*H,L=560),NO.1,NO.2
L=600(*H,L=580),NO.1
L=480,NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
*H,L=280
L=600
16472HOSE, BREATHER
16547BUSH, RADIATOR SUPPORT, NO.1
16548BUSH, RADIATOR SUPPORT, NO.2
16549COLLAR, RADIATOR SUPPORT, NO.2
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-37005
sub90466-41008
sub90467-41002
sub90467-41002
sub90467-41002
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-41002
sub90467-41002
ENGINE SIDE
RADIATOR SIDE
RADIATOR SIDE
ENGINE SIDE
ENGINE SIDE
WATER PUMP SIDE
16582BRACKET, RADIATOR, NO.1
9017906070
main90179-06070
9017908026
main90179-08026
9020108036
main90201-08036
9046208033
main90462-08033
9046400381
main90464-00381
9161160816
main91611-60816
9165140614
main91651-40614
9165140816
main91651-40816
9165140835
main91651-40835
31 parts on this diagram · 10 diagrams in section
