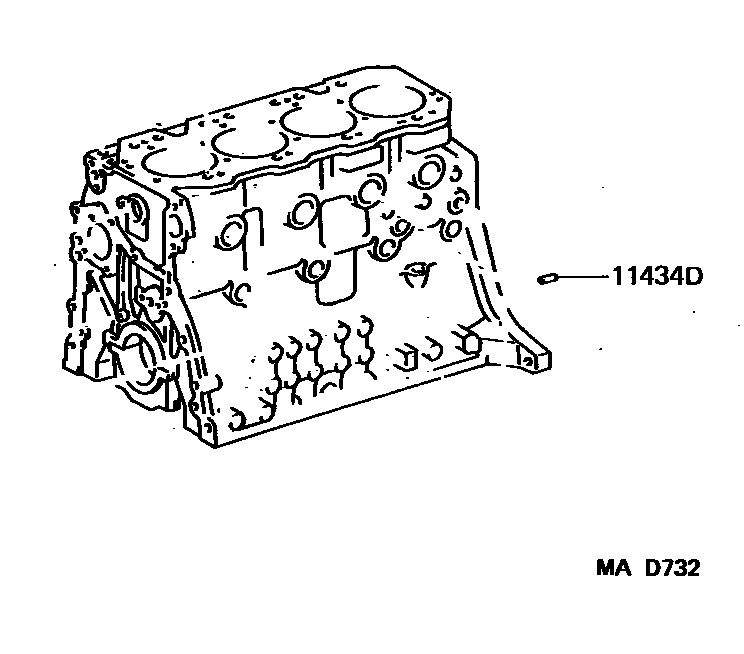

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068i1PZ..PZJ7#199001-200108

L=11,OD=6

main90250-08054i3B..BJ73199001-199402

L=23,OD=8

main90253-11001i2LT..LJ7#199001-199012

L=11,OD=11

main90253-11021i2LT..LJ7#199012-199501

L=8,OD=11

1 parts on this diagram · 7 diagrams in section
