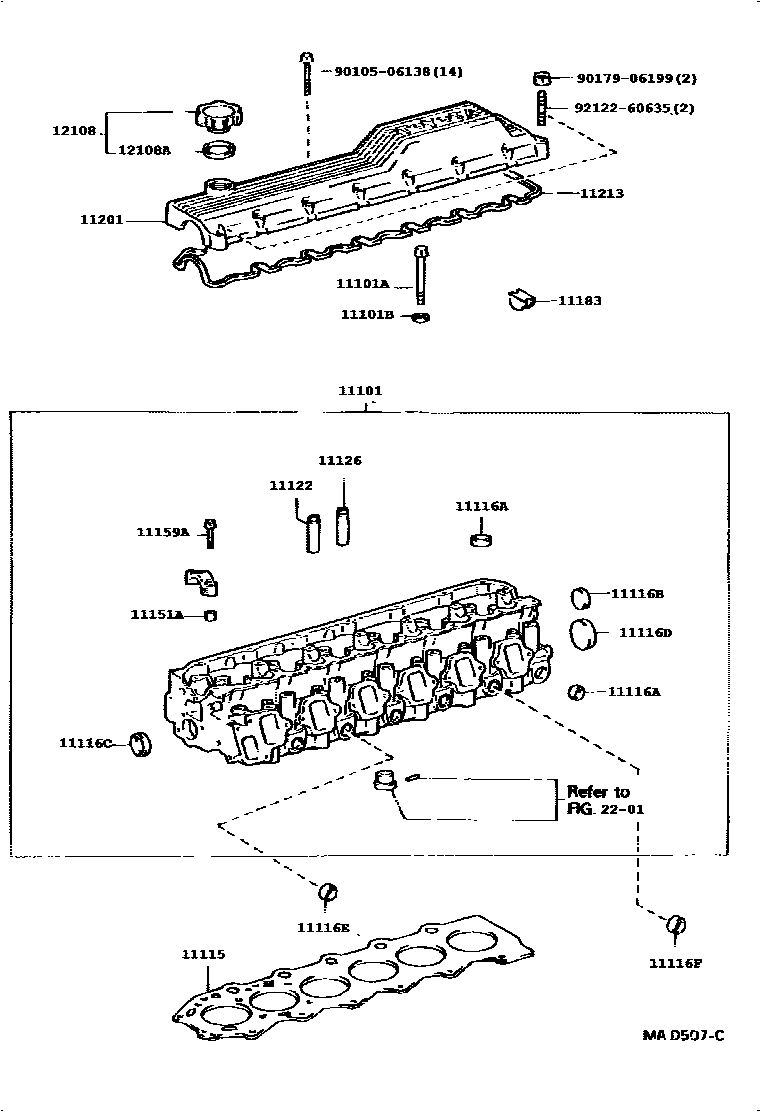

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1
NO.2
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11115GASKET, CYLINDER HEAD
MARK 1
MARK 3
MARK 5
MARK 1,MARK 1
MARK 3,MARK 3
MARK 5,MARK 5
MARK 1
MARK 3
MARK 5
MARK B
MARK D
MARK F
MARK B
MARK D
MARK F
MARK B
MARK D
MARK F
MARK 1
MARK 3
MARK 5
MARK 1
MARK 3
MARK 5
MARK 3
11116APLUG, TIGHT, NO.1
11116BPLUG, TIGHT, NO.2
11116CPLUG, TIGHT, NO.3
11116DPLUG, TIGHT, NO.4
11116EPLUG, TIGHT, NO.5
11116FPLUG, TIGHT, NO.6
11122BUSH, INTAKE VALVE GUIDE
STD
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
O/S 0.05
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11183PLUG, SEMICIRCULAR
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
2201INJECTION NOZZLE
9010506138
main90105-06138
9017906199
main90179-06199
9212260635
main92122-60635
23 parts on this diagram · 5 diagrams in section
