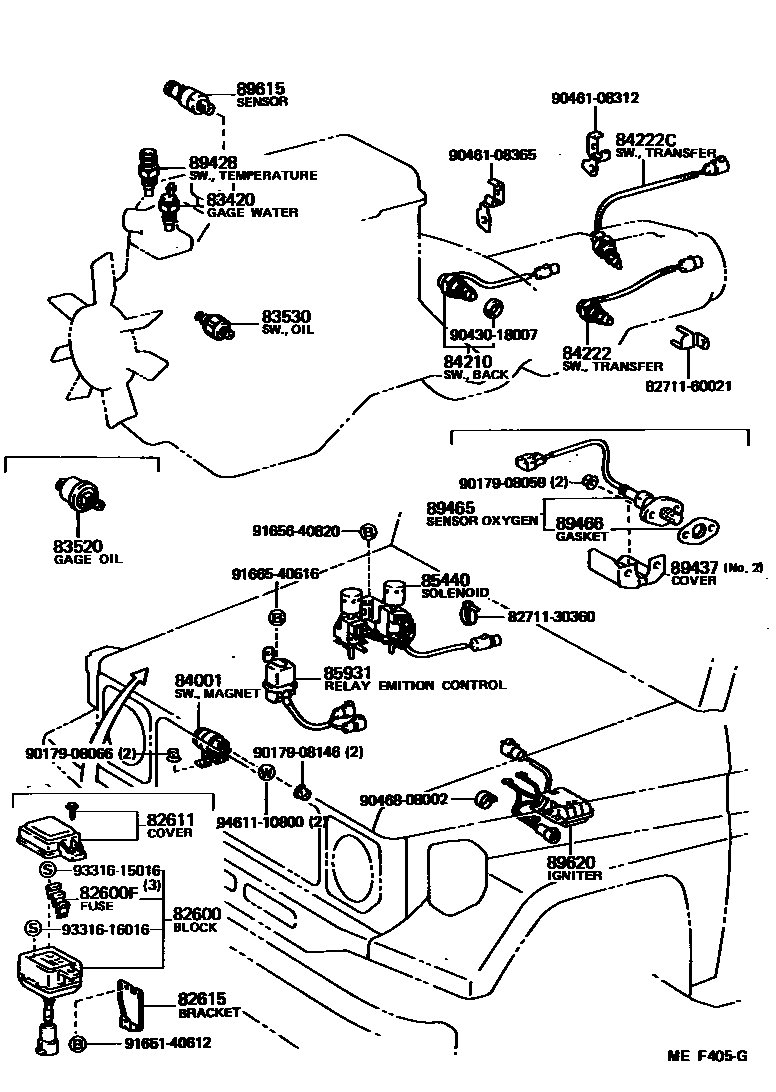

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

82600BLOCK ASSY, FUSE

main82610-90K02iLJ7#,RJ70198608-199001

PORTUGAL SPEC

main82610-90K03iBJ7#..LX,STD198608-199001

82600FFUSE, FUSE BLOCK

main90982-09002iBJ7#,LJ7#,RJ7#198411-199001

10A,10A

main90982-09003iBJ7#,LJ7#,RJ7#198411-199001

15A,15A

main90982-09004iBJ7#,LJ7#,RJ7#198411-199001

20A,YELLOW,20A

main90982-09005iBJ7#,LJ7#,RJ7#198411-199001

7.5A,7.5A

82611COVER, FUSE BLOCK

main82611-90K00iLJ7#,RJ70198608-199001

PORTUGAL SPEC

main82611-90K01iBJ7#..LX,STD198608-199001

82615BRACKET, FUSE

main82615-90K00iRJ7#..EFI198812-199001

main82615-90K01iBJ7#198608-199001

main82615-90K02iLJ70..RHD198608-198809

sub82615-90K04

main82615-90K04iLJ70..RHD198809-199001

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iBJ7#,LJ7#,RJ7#198411-199001

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60010iLJ70198411-199001

sub83520-60011

main83520-60020iBJ7#198411-199001

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iRJ70198411-198503

sub83530-14030

main83530-14030iRJ7#..STD198503-199001

sub83530-28030

main83530-30060iBJ7#,LJ70198503-199001

sub83530-60030

main83530-36011iBJ7#,LJ70198411-198503

sub83530-30060

84001SWITCH ASSY, MAGNET

main38630-60090iBJ7#..LX,STD198411-199001

main38630-60100iLJ7#..LX,STD;LJ70..LHD..VX198411-199001

main38630-60110iRJ7#..CBR198411-199001

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iBJ7#,LJ7#,RJ7#198411-199001

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-60021iBJ7#,LJ7#,RJ7#198411-199001

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-60040iBJ7#,LJ7#,RJ7#198411-199001

sub84222-60041

85440SOLENOID ASSY, FRONT DRIVE

main85440-60030iLJ70..RHD198608-198708

main85440-60040iLJ7#,RJ70..LHD198411-198708

12V

main85440-60050iBJ70..RHD198608-198708

24V

main85440-60060iBJ73198411-198708

12V

main85440-60070iBJ7#..LHD..STD198411-198708

24V

main85440-60100iLJ7#198411-198708

12V COLD SPEC

main85440-60100iBJ73..VM198608-198708

main85440-60110iRJ73198510-198608

main85440-60140iLJ70..RHD198708-199001

main85440-60150iLJ7#,RJ70..LHD198708-199001

12V

main85440-60160iBJ70..RHD198708-198808

24V

main85440-60170iBJ73..STD198708-199001

12V

main85440-60180iBJ70,71,73..LX198708-199001

24V

main85440-60190iBJ73..VM198708-199001

12V COLD SPEC

85931RELAY, EMISSION CONTROL

main85931-16010iRJ7#198411-198608

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20050iRJ7#198411-199001

89437COVER, SENSOR

main89437-60020iRJ7#..EFI198812-199001

NO.2

main89437-90A00iLJ70..LHD..VX;BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM)198708-199001

NO.1

main89437-90K00iBJ70,71,LJ70,RJ7#..LX,VX198708-199001

NO.1,W/SUN ROOF

89465SENSOR, OXYGEN

main89465-39225iRJ7#..EFI198812-199001

sub89465-39226

89466GASKET, OXYGEN SENSOR

main89466-20020iRJ7#..EFI198812-199001

89615SENSOR, KNOCK CONTROL

main89615-35040iRJ7#..EFI198812-199001

89620IGNITER ASSY

main89620-60080iRJ7#..CBR198411-199001

main89620-60110iRJ7#..EFI198812-199001

8271130360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30360

8271160021WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60021

9017908059

main90179-08059

9017908066

main90179-08066

9017908146

main90179-08146

9043018007

main90430-18007

9046108312

main90461-08312

9046108365

main90461-08365

9046808002

main90468-08002

9165140612

main91651-40612

9165640820

main91656-40820

9166540616

main91665-40616

9331615016

main93316-15016

9331616016

main93316-16016

9461110800

main94611-10800

34 parts on this diagram · 7 diagrams in section
