INDICATOR

5551

81850LAMP ASSY, INDICATOR

main81850-90K00iBJ73,LJ70,RJ70198411-198510

12V

main81850-90K01iBJ7#198411-198510

24V

main81850-90K05iBJ73,LJ7#,RJ7#198510-199001

12V

main81850-90K06iBJ7#..LX,STD198510-199001

24V

81850BBULB, INDICATOR LAMP

main99132-12034iBJ73,LJ7#,RJ7#198411-199001

12V 3.4W,12V 3.4W

main99134-12030iBJ7#..LX,STD198411-199001

24V 3W,24V 3W

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-90K00iBJ73,LJ7#,RJ7#198411-199001

12V

main81930-90K01iBJ7#..LX,STD198411-199001

24V

81942SHEET, HEATER CONTROL NAME

main55519-90K00iBJ70,LJ70..RHD198608-198708

sub55519-90K08

main55519-90K01iBJ7#,LJ7#,RJ7#..LHD198411-198708

sub55519-90K09

main55519-90K03iBJ73..LX,STD198608-198708

W/COOLER & HEATER

sub55519-90K11

main55519-90K08iBJ70,LJ70..RHD198708-199001

sub55519-60150

main55519-90K09iBJ7#,LJ7#,RJ7#..LHD198708-199001

sub55519-60160

main55519-90K11iBJ73..LX,STD198708-199001

W/COOLER & HEATER

sub55519-60180

main55519-90K11iBJ73..VM198904-199001

W/COOLER

sub55519-60180

main86995-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

RR HEATER

9356815012

main93568-15012

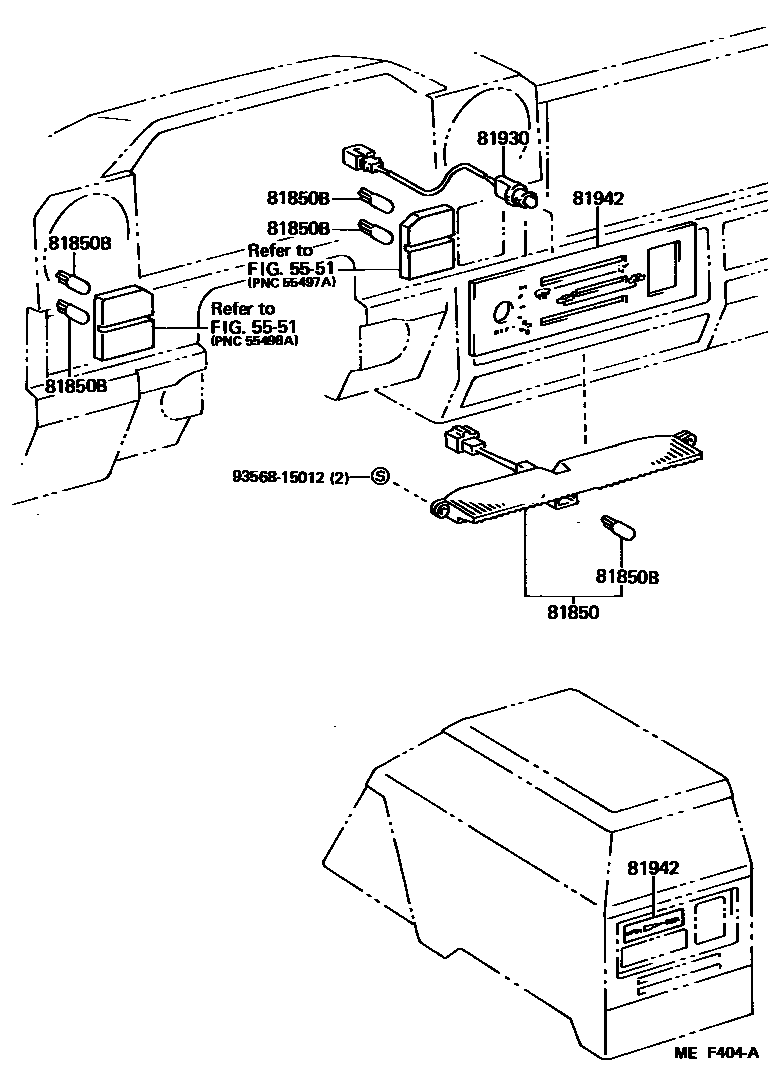

6 parts on this diagram · 1 diagram in section
