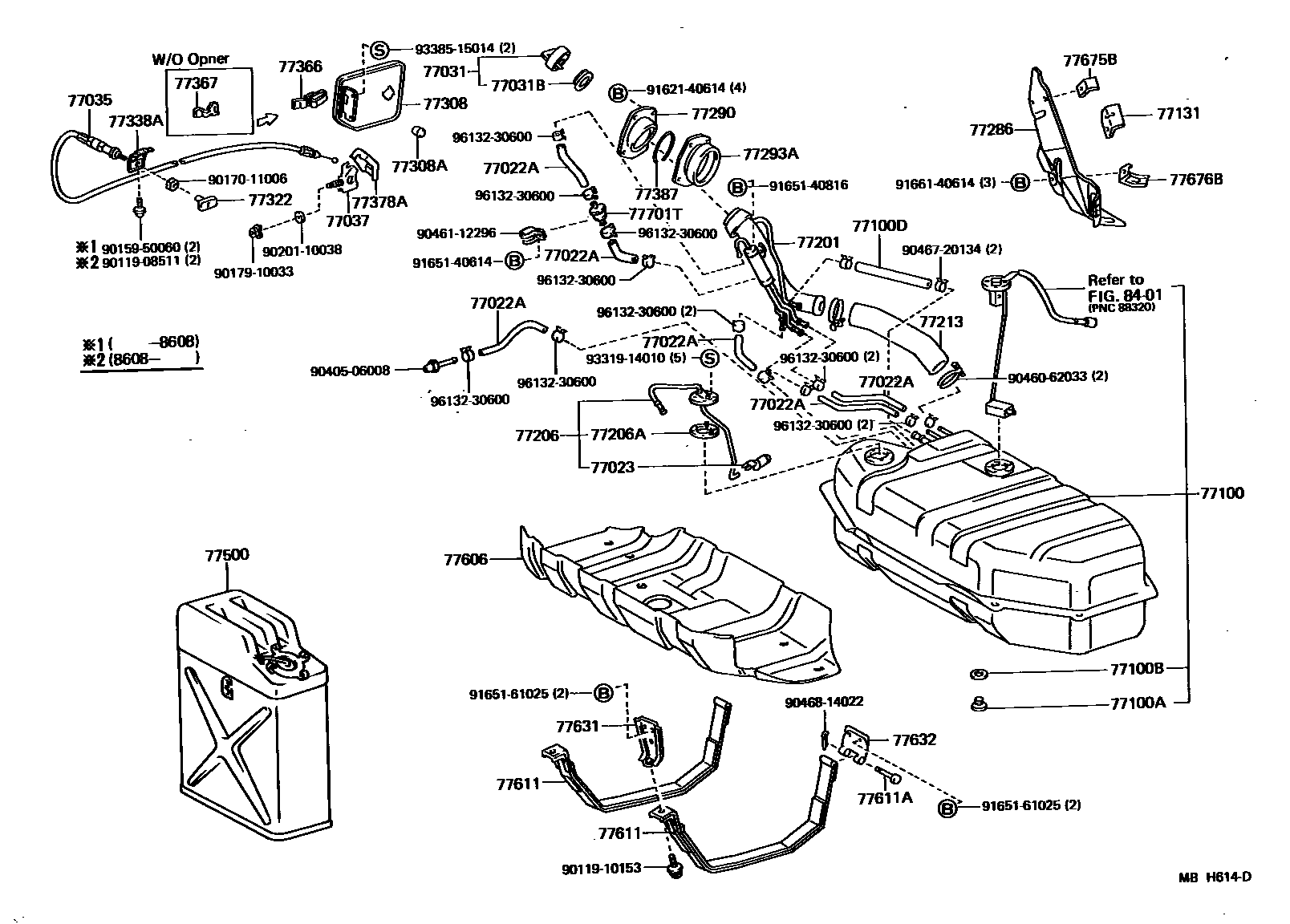

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0009 1

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06010iBJ75198411-199001

L=100(*H,L=80)

sub95333-06010

main95332-06020iBJ70,71,73,LJ7#,RJ7#198411-199001

L=200(*H,L=170)

sub95333-06020

main95332-06020iBJ70,71,73,LJ7#,RJ7#198411-199001

L=200(*H,L=190)

sub95333-06020

main95332-06030iBJ70,71,73,LJ7#,RJ7#198411-198701

L=300(*H,L=220)

sub95333-06030

main95332-06030iBJ70,71,73,LJ7#,RJ7#198411-199001

L=300

sub95333-06030

main95332-06060iBJ75198411-198701

L=600(*H,L=420)

sub95333-06060

main95332-06060iBJ75198411-199001

L=600(*H,L=550)

sub95333-06060

main95333-06022iBJ70,71,73,LJ7#,RJ7#198701-199001

L=300(*H,L=220)

sub95333-06030

main95333-06042iBJ75198701-199001

L=600(*H,L=420)

sub95333-06060

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iRJ70..CBR198411-199001

main77023-22040iBJ7#,LJ7#198411-199001

77031CAP ASSY, FUEL TANK

main69058-90K05iBJ75..PIC198411-198608

main69058-90K11iBJ75..PIC198608-199001

sub69058-60100

main77310-12100iRJ7#198411-199001

main77310-35061iBJ7#,LJ7#..HT,SOT198411-199001

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-90K00iLJ70..RHD198608-199001

main77035-90K01iBJ70,71,LJ70,RJ70..HT198411-199001

main77035-90K03iRJ73198411-199001

main77035-90K04iLJ70..SOT198411-198608

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

77100TANK ASSY, FUEL

main77100-60250iRJ7#..EFI198812-199001

sub77001-60911

sub21314-11020

sub23206-35200

sub23217-16043

sub23220-16084

sub23229-16020

sub23239-11010

sub23249-74150

sub77169-14010

sub83320-69025

sub90159-50219

sub90467-12067

sub94115-40400

sub94115-40500

sub94511-00400

sub94511-00500

main77100-60290iBJ70,71,73,LJ7#,RJ7#..CBR,DSL,TD198411-199001

sub77001-60912

sub83320-69025

main77100-60310iBJ75198411-199001

sub77001-60917

sub83320-69035

77100APLUG(FOR FUEL TANK)

main90341-20003iBJ7#,LJ70,RJ70198411-198507

sub90341-20004

main90341-20004iBJ7#,LJ7#,RJ7#198507-199001

77100BGASKET(FOR FUEL TANK)

main90430-20006iBJ7#,LJ70,RJ70198411-198507

T=2.0

main90430-20007iBJ7#,LJ7#,RJ7#198507-199001

T=2.5

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-22002iBJ75198411-199001

L=200

main90445-22011iBJ70,71,73,LJ7#,RJ7#198411-199001

L=220

sub90445-22024

77131BRACKET, FUEL TANK FILLER PIPE SUPPORT

main77131-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60170iBJ75..HT198411-199001

main77201-60180iBJ75..PIC198411-199001

main77201-60200iRJ7#..EFI198411-199001

main77201-60210iRJ7#198510-198608

*SWZ

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77240-60070iRJ70..CBR198411-199001

main77240-60080iLJ7#198411-199001

main77240-60100iBJ71198510-199001

main77240-60110iBJ70,73..LX,STD198411-198808

main77240-60141iBJ75198808-199001

main77240-60150iBJ75198411-198608

sub77240-60151

sub95333-08038

main77240-60151iBJ75198608-198808

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iBJ7#,LJ7#,RJ7#198411-199001

77213HOSE, FUEL TANK SUB INLET

main77213-60040iBJ70,71,73,LJ7#,RJ7#198411-199001

main77213-60050iBJ75..HT198411-199001

main77213-60070iBJ75..PIC198411-199001

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-90K00iBJ70,71,73,LJ7#,RJ7#198411-198708

main77277-90K01iBJ70,71,73,LJ7#,RJ7#198708-199001

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

77308COVER SUB-ASSY, FUEL INLET BOX

main77305-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

main77305-90K01iBJ75..HT198411-199001

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05018iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

77322KNOB, FUEL TANK CAP

main77319-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

77338ABRACKET, FUEL TANK CAP LOCK CONTROL ROD

main77338-90K00iBJ70,71,73,LJ7#,RJ7#198411-198608

main77338-90K01iBJ70,71,73,LJ7#,RJ7#..LX,VM,VX198608-199001

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12010iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

77367STOPPER, FUEL FILLER OPENING LID

main77358-12020iBJ7#,LJ70,RJ70..HT,SOT198411-198505

77378ACOVER, FUEL FILLER OPENING LID LOCK

main77378-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

77387RING, FUEL INLET BOX

main77391-32010iBJ70,71,73,LJ7#,RJ7#198411-199001

77500TANK ASSY, AUXILIARY FUEL

main77110-60010iBJ7#,LJ7#,RJ7#198411-198608

sub77110-60011

main77110-60011iBJ7#,LJ7#,RJ7#198608-199001

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60030iBJ70,71,73,LJ7#,RJ7#198411-199001

main77606-60040iBJ75198411-198510

sub77606-60041

main77606-60041iBJ75198510-199001

77611BAND, FUEL TANK

main77601-60080iBJ70,71,73,LJ7#,RJ7#198411-199001

sub77601-60081

main77601-60100iBJ75198411-199001

sub77601-60101

77611APIN (FOR FUEL TANK BAND)

main90240-10011iBJ75198411-199001

main90240-10025iBJ70,71,73,LJ7#,RJ7#198411-199001

77631BRACKET, FUEL TANK, NO.1

main77614-60050iBJ70,71,73,LJ7#,RJ7#198411-199001

main77616-60050iBJ75198411-199001

77632BRACKET, FUEL TANK, NO.2

main77615-60020iBJ75198411-199001

main77625-60020iBJ70,71,73,LJ7#,RJ7#198411-199001

77675BBRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.1

main77675-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

77676BBRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2

main77676-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iBJ7#,LJ7#,RJ7#198411-199001

8401

9011908511

main90119-08511

9011910153

main90119-10153

9015950060

main90159-50060

9017011006

main90170-11006

9017910033

main90179-10033

9020110038

main90201-10038

9040506008

main90405-06008

9046062033

main90460-62033

9046112296

main90461-12296

9046720134

main90467-20134

9046814022

main90468-14022

9162140614

main91621-40614

9165140614

main91651-40614

9165140816

main91651-40816

9165161025

main91651-61025

9166140614

main91661-40614

9331914010

main93319-14010

9338515014

main93385-15014

9613230600

main96132-30600

55 parts on this diagram · 7 diagrams in section
