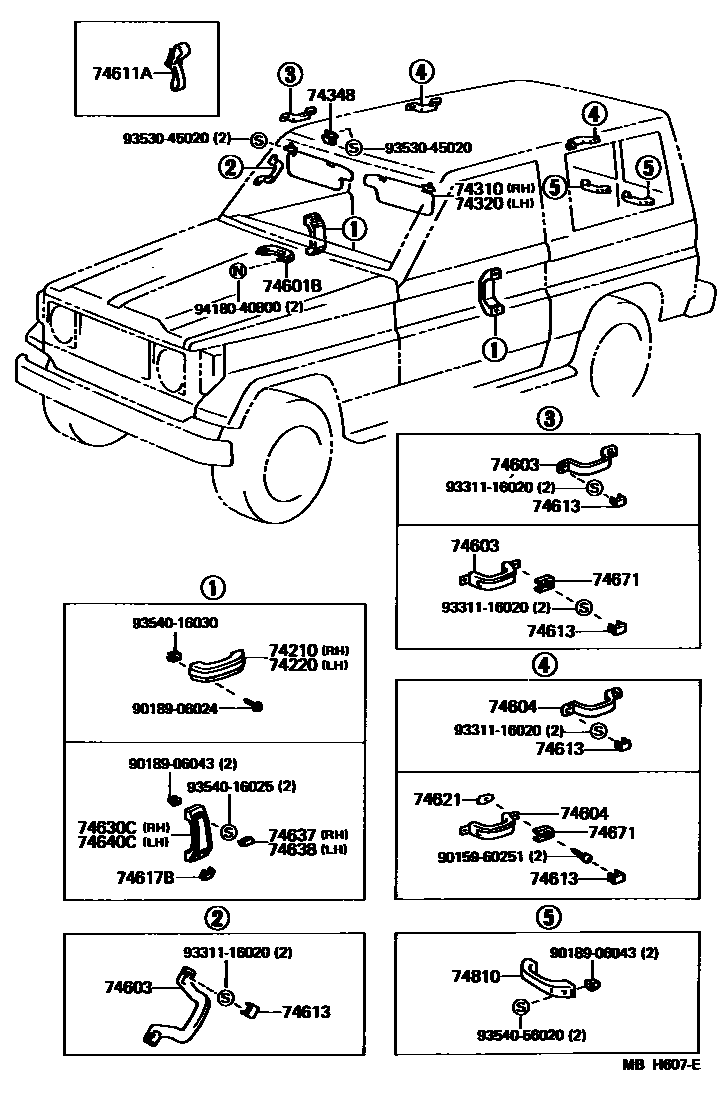

ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-12110-03iLJ70..VX198708-199001

GRAY,GRAY

main74210-12110-16iBJ71,73,LJ7#,RJ7#..LX198808-199001

BROWN,BROWN

74220ARMREST ASSY, FRONT, LH

main74210-12110-03iBJ71,73,LJ7#,RJ7#..LX198808-199001

GRAY,GRAY

main74210-12110-16iLJ70..VX198708-199001

BROWN,BROWN

74310VISOR ASSY, RH

main74310-90K03-08iBJ7#,LJ7#,RJ7#198411-198608

IVORY,IVORY

main74310-90K04-08iBJ7#,LJ7#,RJ7#198411-198608

W/VANITY MIRROR,IVORY,IVORY

main74310-90K10-08iLJ70..RHD..LX198608-199001

IVORY,IVORY

main74310-90K11-08iBJ70,71,73,LJ7#,RJ7#..LHD..(LX,VM)198608-199001

IVORY,IVORY

main74310-90K20-08iLJ70..LHD..VX198708-199001

IVORY,IVORY

main74310-90K21-08iLJ70..RHD..VX198801-199001

IVORY,IVORY

sub74310-60280

74320VISOR ASSY, LH

main74320-90K02-08iBJ7#,LJ7#,RJ7#198411-198608

IVORY,IVORY

main74320-90K05-08iBJ70..RHD198608-199001

IVORY,IVORY

sub74320-60300

main74320-90K06-08iLJ70..RHD..LX198608-199001

IVORY,IVORY

main74320-90K07-08iBJ7#,LJ7#,RJ7#..LHD..(LX,STD,VM)198608-199001

IVORY,IVORY

sub74320-60290

main74320-90K12-08iLJ70..LHD..VX198708-199001

IVORY,IVORY

sub74320-60310

main74320-90K13-08iLJ70..RHD..VX198801-199001

IVORY,IVORY

74348HOLDER, VISOR

main74348-32010-08×2iBJ7#,LJ7#,RJ7#198411-199001

IVORY,IVORY

sub74348-17010

sub74348-12020

74601BGRIP, INSTRUMENT PANEL SAFETY BAND

main74604-90K00-03iBJ7#,LJ7#,RJ7#198411-199001

GRAY,SHADOW GRAY

main74604-90K00-06iBJ7#,LJ7#,RJ7#198411-199001

BROWN,SEPIA BROWN

74603GRIP SUB-ASSY, ASSIST, FRONT

main74603-95800-18iBJ73,LJ7#,RJ7#..HT198411-199001

IVORY,IVORY

main74610-12030-08iLJ70..SOT198411-199001

IVORY,IVORY

sub74610-16010

sub74603-16010

main74610-90K00-08iBJ7#,LJ7#,RJ7#198708-199001

FR PILLAR,IVORY,IVORY

74604GRIP SUB-ASSY, ASSIST, REAR

main74603-95800-18×2iBJ73,LJ7#,RJ7#..HT198411-199001

IVORY,IVORY

main74610-12030-08×2iBJ70,71,75..HT198411-199001

IVORY,IVORY

sub74610-16010

sub74603-16010

74611ASTRAP, ASSIST GRIP

main74611-90K00×2iLJ70..SOT198411-198608

74613PLUG, ASSIST GRIP

main74617-16010-08×2iBJ73,LJ7#,RJ7#..HT198708-199001

FR,IVORY,IVORY

main74617-22010-18×6iBJ73,LJ7#,RJ7#..HT198411-199001

IVORY,IVORY

74617BPLUG, DOOR ASSIST GRIP

main74617-90K00-03×2iBJ7#,LJ7#,RJ7#..LX,STD,VM198411-198808

GRAY,SHADOW GRAY

main74617-90K00-06×2iBJ7#,LJ7#,RJ7#..LX,STD,VM198411-198808

BROWN,SEPIA BROWN

74621PAD, ASSIST GRIP

main74621-90K00×4iBJ73,LJ73,RJ73198411-198608

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-90K00-03iBJ7#,LJ7#,RJ7#..LX,STD,VM198411-198808

RH,GRAY,SHADOW GRAY

main74630-90K00-06iBJ7#,LJ7#,RJ7#..LX,STD,VM198411-198808

RH,BROWN,SEPIA BROWN

74637PLUG, ASSIST GRIP, NO.2 RH

main74637-90K00-03iBJ70,73,75,LJ70..STD,VM198808-199001

GRAY,SHADOW GRAY

main74637-90K00-06iBJ70,73,75,LJ70..STD,VM198808-199001

BROWN,SEPIA BROWN

74638PLUG, ASSIST GRIP, NO.2 LH

main74638-90K00-03iBJ7#,LJ7#,RJ7#..LX,STD,VM198411-198808

GRAY,SHADOW GRAY

main74638-90K00-06iBJ7#,LJ7#,RJ7#..LX,STD,VM198411-198808

BROWN,SEPIA BROWN

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-90K00-03iBJ7#,LJ7#,RJ7#..LX,STD,VM198411-198808

LH,GRAY,SHADOW GRAY

main74640-90K00-06iBJ70,73,75,LJ70..STD,VM198808-199001

LH,BROWN,SEPIA BROWN

74671SUPPORT, ASSIST GRIP

main74671-22010-18×6iBJ73,LJ7#,RJ7#..HT198411-198608

IVORY,IVORY

main74671-90K00-08×4iBJ73,LJ73,RJ73198605-199001

RR,IVORY,IVORY

74810PULL ASSY, DOOR, INSIDE

main69285-90801-03×2iBJ75..HT198411-198510

RR,GRAY,SHADOW GRAY

main69285-90801-16iBJ75..HT198411-198510

*55,RR,BROWN,SEPIA BROWN

9015960251

main90159-60251

9018906024

main90189-06024

9018906043

main90189-06043

9331116020

main93311-16020

9353045020

main93530-45020

9354016025

main93540-16025

9354016030

main93540-16030

9354056020

main93540-56020

9418040800

main94180-40800

27 parts on this diagram · 1 diagram in section
