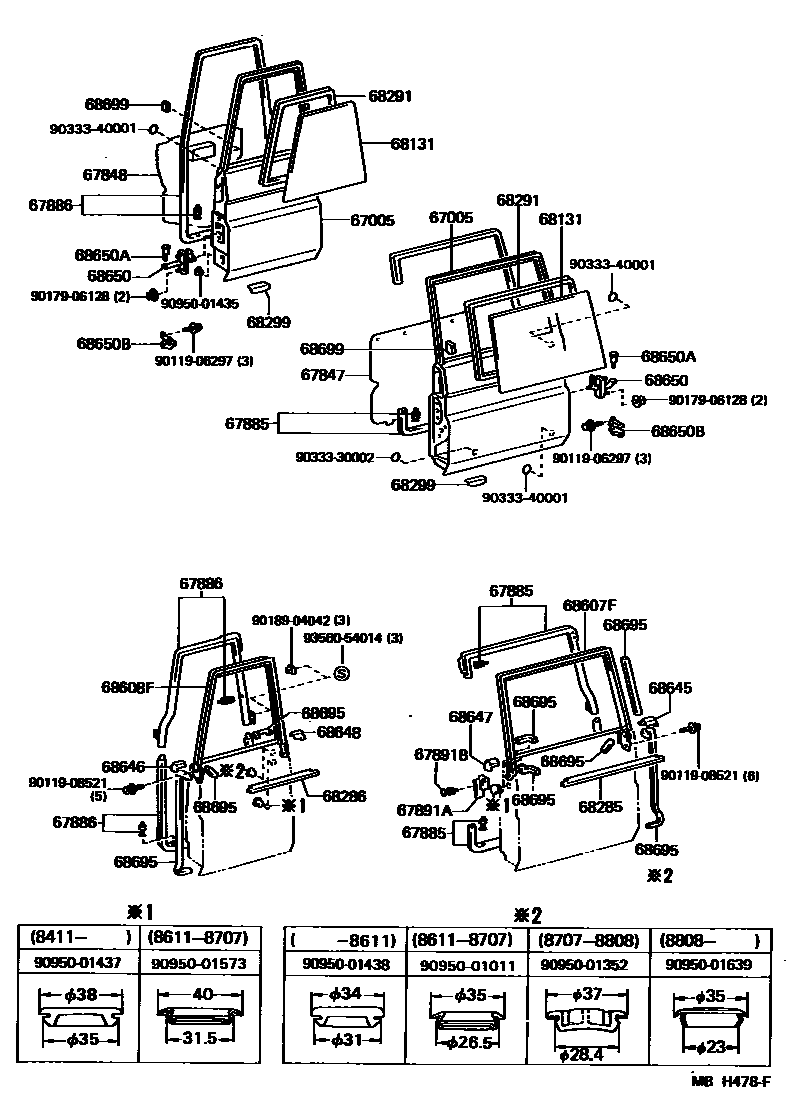

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67005PANEL SUB-ASSY, BACK DOOR

main67005-90K02iBJ70,73,LJ70,RJ70..HT198411-198510

*56,RH

main67005-90K03iBJ70,73,LJ70,RJ70..HT198411-198510

*56,RH,W/RR WIPER

main67005-90K05iLJ70..SOT198411-198510

*56,RH

main67005-90K06iBJ73,LJ73,RJ73198411-198611

*55,RH,W/*DTY FRAME,RR WIPER

main67005-90K08iBJ75..HT198411-198611

RH

main67005-90K09iLJ70..SOT198411-198510

*56,RH,W/*DTY DOOR FRAME

main67005-90K10iLJ70..SOT198411-198611

*55,RH,W/*DTY DOOR FRAME

main67005-90K11iBJ73,LJ73,RJ73198411-198608

*55,RH,W/*DTY DOOR FRAME

main67005-90K12iBJ73198411-198510

*56,RH,W/*DTY DOOR FRAME

main67005-90K13iBJ73198411-198510

*56,RH,W/*DTY FRAME,RR WIPER

main67005-90K15iLJ70,RJ70..HT198411-198510

RH,*FRG,W/RR WIPER

main67005-90K16iLJ70,RJ70..HT198411-198510

RH,*FRG

main67005-90K17iBJ70,73,LJ70,RJ70..HT..STD198608-198611

RH

main67005-90K18iBJ70,71,73,LJ7#,RJ70..HT..(LX,STD)198608-198611

RH,W/RR WIPER

main67005-90K19iLJ70..SOT198411-198611

*55,RH

main67005-90K20iBJ70,LJ70,RJ70..HT198510-198608

RH,*FRG,W/RR WIPER

main67005-90K22iLJ70,RJ70..HT..STD198608-198611

RH,*FRG

main67005-90K23iBJ75..HT198510-198611

RH,W/RR WIPER

main67005-90K27iBJ73,LJ73,RJ73198611-199001

RH,W/*DTY FRAME,RR WIPER

main67005-90K29iBJ75..HT198611-198710

RH

main67005-90K30iLJ70..SOT198611-198710

RH,W/*DTY DOOR FRAME

main67005-90K31iBJ73..STD,VM198611-199001

RH,W/*DTY DOOR FRAME

main67005-90K33iLJ70..RHD..VX198801-199001

RH

main67005-90K34iLJ70,RJ70..HT..STD198611-199001

RH,*FRG

main67005-90K35iBJ70,73,LJ70,RJ70..HT..STD198611-199001

RH

main67005-90K36iBJ70,71,73,LJ7#,RJ7#..HT..(LX,STD)198611-199001

RH,W/RR WIPER

main67005-90K37iLJ70..SOT198611-198710

RH

main67005-90K39iBJ75..HT198611-199001

RH,W/RR WIPER

main67005-90K41iBJ75..HT198710-199001

RH

main67005-90K42iLJ70..SOT198710-199001

RH,W/*DTY DOOR FRAME

main67005-90K46iLJ70..SOT198710-199001

RH

main67005-90K47iLJ73198710-199001

RH,*FRG,W/*DTY FRAME,RR WIPER

main67006-90K02iBJ70,73,LJ70,RJ70198411-198510

LH

main67006-90K09iBJ75..HT198411-198510

LH

main67006-90K28iBJ73;LJ70..SOT198411-198510

LH,W/*DTY DOOR FRAME

main67006-90K29iLJ70,RJ70..HT198411-198510

LH,WEST GERMANY SPEC

main67006-90K33iBJ70,71,73,LJ7#,RJ7#..STD198510-198608

LH

main67006-90K37iBJ73,LJ73,RJ73; LJ70..SOT198510-198608

LH,W/*DTY DOOR FRAME

main67006-90K40iBJ75..HT198510-198608

LH

main67006-90K42iBJ70,LJ70,RJ70..HT198510-198608

LH,*FRG

main67006-90K46iBJ70,71,73,LJ7#,RJ70..LX,STD198608-198611

LH

main67006-90K48iBJ75..HT198608-198611

LH

main67006-90K50iLJ70,RJ70..LHD..HT198608-198611

LH,*FRG

main67006-90K55iBJ73,LJ73; LJ70..SOT198608-198611

LH,W/*DTY DOOR FRAME

main67006-90K61iLJ70..LHD..VX198708-199001

LH

main67006-90K64iBJ75..HT198611-199001

LH

main67006-90K67iBJ73,LJ73,RJ73; LJ70..SOT198611-199001

LH,W/*DTY DOOR FRAME

main67006-90K68iLJ7#,RJ70..LHD..HT198611-199001

LH,*FRG

67847COVER, BACK DOOR SERVICE HOLE, RH

main67847-90K01iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

67848COVER, BACK DOOR SERVICE HOLE, LH

main67848-90K01iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

67885WEATHERSTRIP, BACK DOOR, RH

main67881-90K02iBJ75..HT198411-199001

main67881-90K04iBJ73,LJ73,RJ73; LJ70..SOT198411-199001

W/DETACHABLE DOOR FRAME,UPR

main67881-90K05iBJ70,71,73,LJ7#,RJ7#..LX,STD,VX198411-199001

main67883-90K00iBJ73,LJ73,RJ73; LJ70..SOT198411-199001

W/DETACHABLE DOOR FRAME,LWR

67886WEATHERSTRIP, BACK DOOR, LH

main67882-90K02iBJ75..HT198411-199001

main67882-90K04iBJ73,LJ73,RJ73; LJ70..SOT198411-199001

W/DETACHABLE DOOR FRAME,UPR

main67882-90K05iBJ70,71,73,LJ7#,RJ7#..LX,STD,VX198411-199001

main67884-90K00iBJ73,LJ73,RJ73; LJ70..SOT198411-199001

W/DETACHABLE DOOR FRAME,LWR

67891ASEAL, BACK DOOR

main67891-90K00iBJ73,LJ73,RJ73; LJ70..SOT198411-199001

W/*DTY DOOR FRAME

67891BCLIP(FOR BACK DOOR SEAL)

main67868-30030-01iBJ73,LJ73,RJ73; LJ70..SOT198411-198901

W/*DTY DOOR FRAME,BLACK

main90467-05031-01iBJ73,LJ73,RJ73; LJ70..SOT198901-199001

W/*DTY DOOR FRAME,BLACK

68131GLASS, BACK DOOR

main68131-90K00iBJ70,71,73,LJ7#,RJ7#..LX,STD198411-199001

*TEM,T=3.5,RH,*TEM,T=3.5

main68131-90K05iBJ75..HT198411-199001

*TEM,T=3.5,RH,*TEM,T=3.5

main68131-90K06iBJ70,71,73,LJ7#,RJ7#..LX,STD198411-199001

*TT,T=3.5,BLUE,RH,*TT,T=3.5

main68131-90K07iBJ70,71,73,LJ7#,RJ7#..HT..(LX,STD,VX)198411-199001

*EHTT,T=3.5,RH,*EHTT,T=3.5

main68131-90K09iBJ73,LJ73,RJ73..LX,STD; LJ70..SOT198411-199001

*TT,T=3.5,BLUE,RH,*TT,T=3.5,W/*DTY

main68131-90K11iBJ73,LJ73,RJ73198411-199001

*EHTT,T=3.5,RH,*EHTT,T=3.5,W/*DTY

main68131-90K13iBJ75..HT198411-199001

*EHT,T=3.5,RH,*EHT,T=3.5

main68132-90K00iBJ70,71,73,LJ7#,RJ7#..LX,STD198411-199001

*TEM,T=3.5,LH,*TEM,T=3.5

main68132-90K03iBJ75..HT198411-199001

*TEM,T=3.5,LH,*TEM,T=3.5

main68132-90K04iBJ70,71,73,LJ7#,RJ7#..LX,STD198411-199001

*TT,T=3.5,LH,*TT,T=3.5

main68132-90K05iBJ70,71,73,LJ7#,RJ7#..HT..(LX,STD,VX)198411-199001

*EHTT,T=3.5,LH,*EHTT,T=3.5

main68132-90K07iBJ73,LJ73,RJ73..LX,STD; LJ70..SOT198411-199001

*TT,T=3.5,LH,*TT,T=3.5,W/*DTY

main68132-90K09iBJ73,LJ73,RJ73198411-199001

*EHTT,T=3.5,LH,*EHTT,T=3.5,W/*DTY

main68132-90K11iBJ75..HT198411-199001

*EHT,T=3.5,LH,*EHT,T=3.5

68285MOULDING, BACK DOOR FRAME, RH

main68285-90K00iBJ73,LJ73,RJ73; LJ70..SOT198411-199001

68286MOULDING, BACK DOOR FRAME, LH

main68286-90K00iBJ73,LJ73,RJ73; LJ70..SOT198411-199001

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-90K00iBJ70,71,73,LJ7#,RJ7#..LX,STD,VX198411-199001

RH

main68291-90K02iBJ73,LJ73,RJ73; LJ70..SOT198411-199001

RH,W/*DTY FRAME

main68291-90K03iBJ75..HT198411-199001

RH

main68292-90K00iBJ70,71,73,LJ7#,RJ7#..LX,STD,VX198411-199001

LH

main68292-90K02iBJ73,LJ73,RJ73; LJ70..SOT198411-199001

LH,W/*DTY FRAME

main68292-90K03iBJ75..HT198411-199001

LH

68299SPACER, BACK DOOR WEATHERSTRIP

main68299-90K00×2iBJ7#,LJ7#,RJ7#..HT198411-199001

68607FFRAME SUB-ASSY, BACK DOOR WINDOW, RH

main68607-90K02iBJ73,LJ73,RJ73198411-199001

W/*DTY DOOR FRAME

main68607-90K04iLJ70..SOT198411-199001

W/*DTY DOOR FRAME

68608FFRAME SUB-ASSY, BACK DOOR WINDOW, LH

main68608-90K02iBJ73,LJ73,RJ73; LJ70..SOT198411-199001

W/*DTY DOOR FRAME

68645COVER, BACK DOOR WINDOW FRAME, A

main68645-90K00iBJ73,LJ73,RJ73; LJ70..SOT198411-199001

68646COVER, BACK DOOR WINDOW FRAME, B

main68646-90K00iBJ73,LJ73,RJ73; LJ70..SOT198411-199001

68647COVER, BACK DOOR WINDOW FRAME, C

main68647-90K00iBJ73,LJ73,RJ73; LJ70..SOT198411-199001

68648COVER, BACK DOOR WINDOW FRAME, D

main68648-90K00iBJ73,LJ73,RJ73; LJ70..SOT198411-199001

68650CHECK ASSY, BACK DOOR

main68650-90K01iBJ7#,LJ7#,RJ7#..(HT,SOT)..STD198512-199001

RH

main68650-90K02iBJ7#,LJ7#,RJ7#..HT198411-199001

RH,W/DEFOGGER

main68660-90K01iBJ7#,LJ70,RJ70..HT,SOT198411-198510

LH

main68660-90K02iBJ70,75,LJ70..HT,SOT; LJ70,RJ70..HT198411-198510

*FRG; DENMARK SPEC

main68660-90K03iBJ7#,LJ7#,RJ7#..HT,SOT198510-199001

LH

main68660-90K04iBJ73,75,LJ70..HT..(LX,STD); LJ70,RJ70..HT..(LX,STD)198608-199001

*FRG; DENMARK SPEC

68650APIN(FOR BACK DOOR CHECK)

main68617-30010×2iBJ7#,LJ70,RJ70..HT,SOT198411-198510

main68617-90K00×2iBJ7#,LJ7#,RJ7#..HT,SOT198510-199001

68650BBASE, BASE DOOR CHECK

main68611-90K00×2iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

68695PAD, BACK DOOR WINDOW FRAME

main68695-90K00×8iBJ73,LJ73,RJ73; LJ70..SOT198411-199001

W/*DTY DOOR FRAME

68699SPACER, BACK DOOR WINDOW FRAME

main68699-90K00×6iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

9011906297

main90119-06297

9011908521

main90119-08521

9017906128

main90179-06128

9018904042

main90189-04042

9033330002

main90333-30002

9033340001

main90333-40001

9095001011

main90950-01011

9095001352

main90950-01352

9095001435

main90950-01435

9095001437

main90950-01437

9095001438

main90950-01438

9095001573

main90950-01573

9095001639

main90950-01639

9356054014

main93560-54014

37 parts on this diagram · 3 diagrams in section
