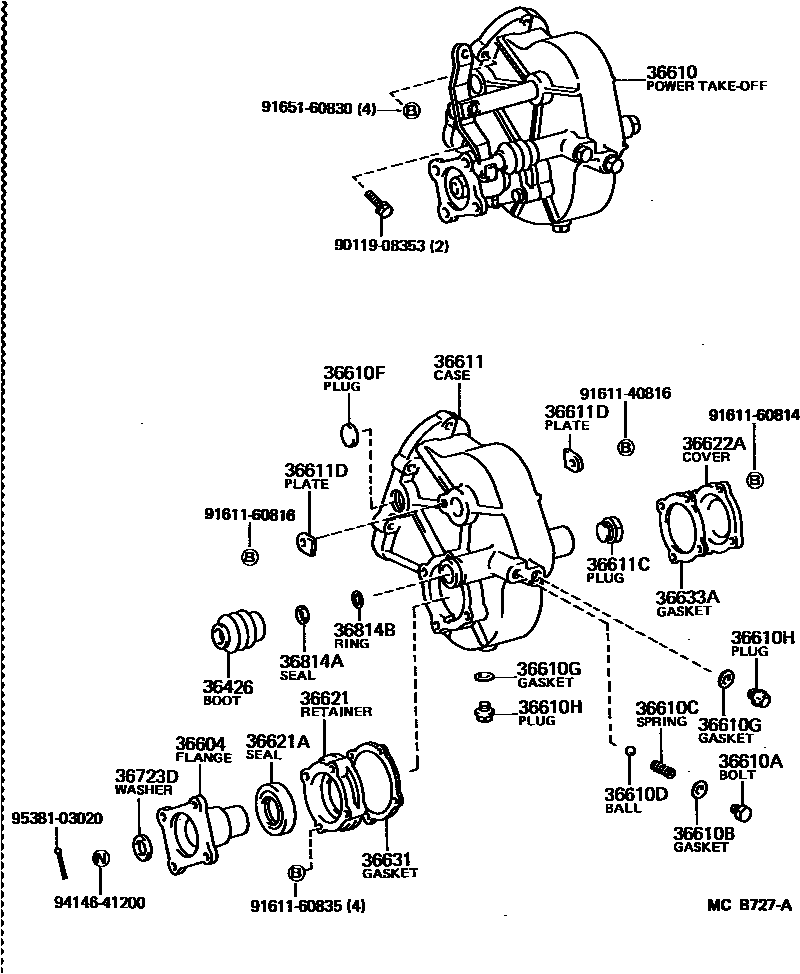

POWER TAKE-OFF CASE & GEAR
36426BOOT, DIAPHRAGM PUSH ROD
36604FLANGE, UNIVERSAL JOINT (FOR FRONT POWER TAKE-OFF)
36610POWER TAKE-OFF ASSY
36610ABOLT, LOCK BALL (FOR POWER TAKE-OFF)
36610BGASKET, SEAT (FOR POWER TAKE-OFF)
T=0.8
36610CSPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF)
36610DBALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF)
36610FPLUG, EXPANSION (FOR POWER TAKE-OFF)
36610GGASKET (FOR FRONT POWER TAKE-OFF DRAIN)
36610HPLUG (FOR FRONT POWER TAKE-OFF DRAIN)
36611CASE, POWER TAKE-OFF
36611CPLUG, W/HEAD STRAIGHT SCREW (FOR POWER TAKE-OFF CACE)
36611DPLATE, LOCK (FOR POWER TAKE-OFF CASE)
36621RETAINER, POWER TAKE-OFF BEARING
36621ASEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
36622ACOVER, POWER TAKE-OFF
36631GASKET, POWER TAKE-OFF BEARING RETAINER
36633AGASKET, POWER TAKE-OFF COVER
36723SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723DWASHER, PLATE (FOR FRONT POWER TAKE-OFF SHAFT)
36814SHAFT, POWR TAKE-OFF FORK, NO.1
36814ASEAL, DUST (FOR FRONT POWER TAKE-OFF SHAFT)
36814BRING, O (FOR FRONT POWER TAKE-OFF SHAFT)
9011908353
main90119-08353
9161140816
main91611-40816
9161160814
main91611-60814
9161160816
main91611-60816
9161160835
main91611-60835
9165160830
main91651-60830
9414641200
main94146-41200
9538103020
main95381-03020
31 parts on this diagram · 2 diagrams in section
