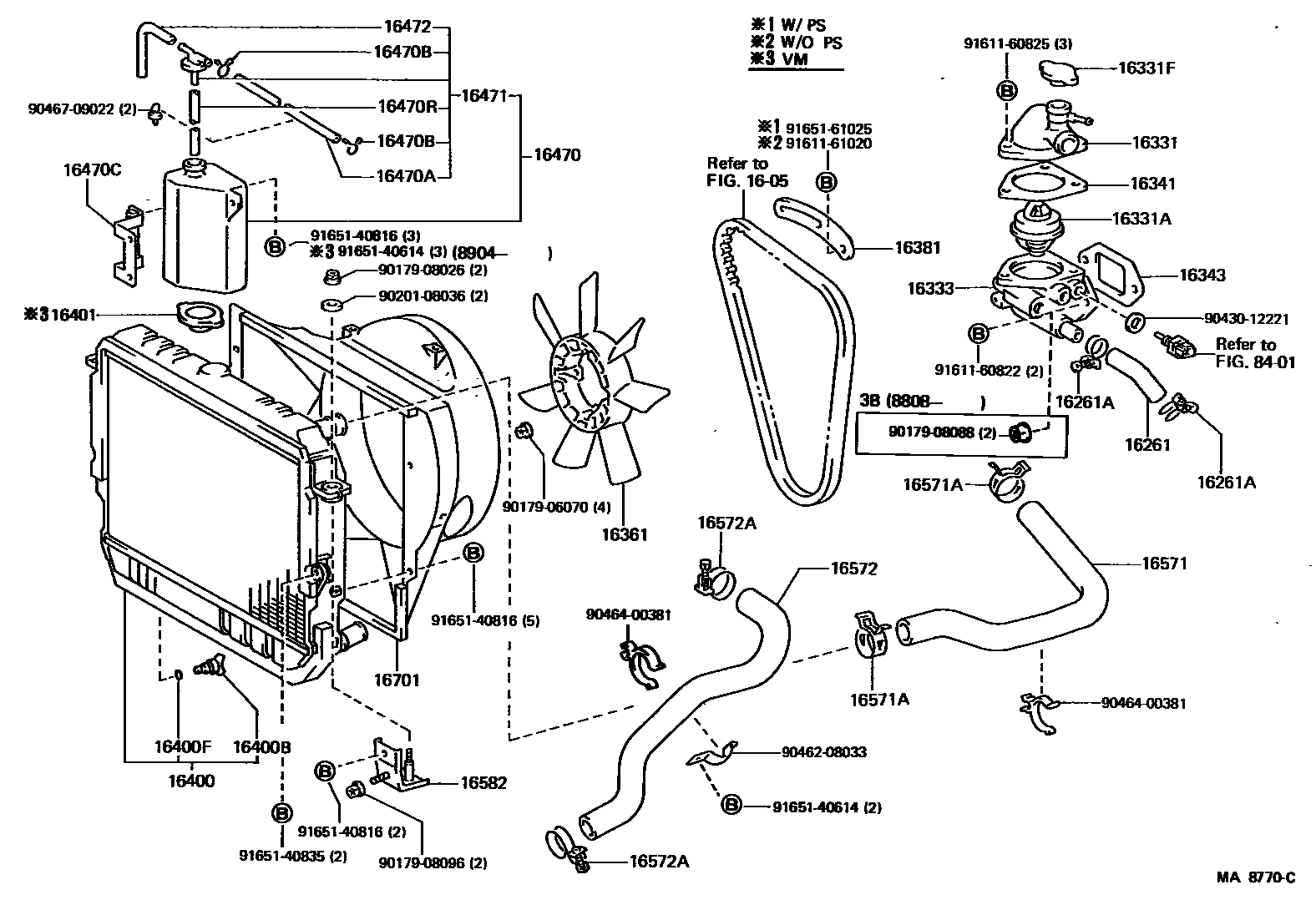

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1605

16261HOSE, WATER BY-PASS

main16261-35040i22R..RJ70198411-198510

main16261-35060i22R..RJ7#198510-199001

sub16261-35061

main16261-54030i2LT..LJ7#198510-199001

main16261-56012i13BT,3B..BJ7#198411-199001

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-60053i13BT,3B..BJ7#198411-198609

main90044-67103i13BT,3B..BJ7#198609-198808

main90467-15004i2LT..LJ7#198510-198909

main90467-15022i2LT..LJ7#198909

main90467-20005i22R..RJ7#198411-199001

sub96134-41900

main90467-28004i13BT,3B..BJ7#198808-199001

sub90467-28007

16331OUTLET, WATER

main16331-35040i22RE..RJ7#198812-199001

sub16331-35041

main16331-35050i22R..RJ7#198411-199001

sub16331-35051

main16331-54030i2L..LJ70198411-198510

main16331-54080i2LT..LJ7#198510-198511

sub16331-54081

main16331-54081i2LT..LJ7#198511-199001

main16331-58010i3B..BJ70,73,75198411-199001

main16331-58030i13BT..BJ71198510-199001

16331ATHERMOSTAT

main90916-03055i22R..RJ7#198411-198701

*WAX 88-100

sub90916-03078

main90916-03059i13BT,3B..BJ7#198411-198808

*WAX 88-100

sub90916-03080

main90916-03062i2L#..LJ7#198411-198805

*WAX 88-100

sub90916-03072

main90916-03072i2LT..LJ7#198805-199001

*WAX 88-100

sub90916-03099

main90916-03078i22R#..RJ7#198701-199001

*WAX 88-100

main90916-03080i13BT,3B..BJ7#198808-199001

*WAX 88-100

sub90916-03103

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-71010i13BT,3B..BJ7#..LX,STD198411-199001

sub16401-54750

16333HOUSING, WATER OUTLET

main16333-54050i2L..LJ70198411-198510

main16333-54060i2LT..LJ7#198510-198511

sub16333-54061

sub16343-54021

main16333-54061i2LT..LJ7#198511-198708

main16333-54100i2LT..LJ7#198708-199001

main16333-56060i13BT,3B..BJ7#198411-198808

sub16333-58080

sub16341-56030

sub16343-56023

sub90341-12006

sub90430-12221

sub92122-60832

sub94185-60800

main16333-56070i13BT,3B..BJ7#198808-198904

sub16333-56071

sub92112-60835

main16333-56071i13BT,3B..BJ7#198904-198908

sub16333-56072

sub16343-56020

main16333-56072i13BT,3B..BJ7#198908

sub16333-58050

16341GASKET, WATER OUTLET

main16341-35010i2LT..LJ7#198411-199001

main16341-54011i2L..LJ70198411-198510

sub16341-54030

main16341-56020i13BT,3B..BJ7#198411-198808

sub16341-56021

main16341-56030i13BT,3B..BJ7#198808-199001

16343GASKET, WATER OUTLET HOUSING

main16343-54011i2L..LJ70198411-198510

sub16343-54021

main16343-54020i2LT..LJ7#198510-198511

main16343-54021i2LT..LJ7#198511-199001

main16343-56020i13BT,3B..BJ7#198411-198808

sub16343-56022

main16343-56021i13BT,3B..BJ7#198908-199001

sub16343-56022

16361FAN

main16361-38010i22R#..RJ7#198411-199001

7BLADES OD=380

main16361-41070i3B..BJ73..VM198510-198904

sub16361-41071

main16361-54010i2L..LJ70198411-198510

sub16361-54020

main16361-54020i2LT..LJ7#198510-199001

main16361-54040i3B..BJ73..VM198904

main16361-54070i3B..BJ73..VM198904

W/AIR CONDITIONER

16381BAR, FAN BELT ADJUSTING

main16381-35010i22R..RJ7#198411-199001

main16381-35021i22RE..RJ7#198812-199001

main16381-54011i2L#..LJ7#198411-199001

main16381-56030i13BT,3B..BJ7#198411-199001

main16381-56060i3B..BJ70,73,75..LX,STD198808-199001

sub16381-58120

main16381-56070i3B..BJ73..LX,STD198808-199001

PORTUGAL CKD

sub16381-58110

main16381-58020i13BT..BJ71198411-199001

W/PS

main16381-58050i3B..BJ70,73,75..LX,STD198808-199001

W/PS

main16381-58060i3B..BJ73..LX,STD198808-199001

W/PS

main16381-58060i3B..BJ73..LX,STD198808-199001

PORTUGAL CKD,W/PS

16400RADIATOR ASSY

main16400-35230i22R..RJ70198411-198510

sub16400-35231

main16400-35231i22R..RJ7#198510-198804

sub16400-35232

main16400-35232i22R#..RJ7#198804-199001

main16400-54330i2L..LJ70198411-198510

sub16400-54331

main16400-54490i2LT..LJ7#198510-198802

sub16400-54491

main16400-54491i2LT..LJ7#198802-199001

main16400-58160i13BT,3B..BJ7#..LX,STD198411-199001

sub16400-58310

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i22R#..RJ7#198411-199001

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i22R#..RJ7#198411-199001

16401CAP SUB-ASSY, RADIATOR

main16401-41021i2L..LJ70198411-198510

main16401-71010i3B..BJ73..VM198510-199001

sub16401-54750

16470TANK ASSY, RADIATOR RESERVE

main16470-54070i2LT..LJ7#198510-199001

main16470-54100i22R#..RJ7#198411-199001

main16470-58040i13BT,3B..BJ7#..LX,STD198411-199001

main16470-58050i3B..BJ73..VM198904

sub16470-58090

main16470-68030i3B..BJ73..VM198510-198904

sub16470-58040

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33534i13BT,3B..BJ7#..LX,STD198411-199001

L=1800(*H,L=960)

main90445-12078i2LT..LJ7#198510-199001

L=1000(*H,L=520),NO.1,NO.2

main90445-12078i2LT..LJ7#198510-199001

L=1000(*H,L=300)

main90445-12078i22R#..RJ7#198411-199001

L=1450(*H,L=480),NO.1,NO.2

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i22R#..RJ7#198411-199001

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-54100i2LT..LJ7#198510-199001

main16611-61020i3B..BJ73..VM198904

main16611-68020i13BT,3B..BJ7#198411-198904

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i13BT,3B..BJ7#198411-199001

L=1450(*H,L=220)

16471CAP SUB-ASSY, RESERVE TANK

main16405-54100i2L..LJ70198411-199001

main16405-54130i2LT..LJ7#198510-199001

main16405-58020i13BT,3B..BJ7#..LX,STD198411-199001

main16405-58040i3B..BJ73..VM198904

sub16405-58070

main16405-68020i3B..BJ73..VM198510-198904

16472HOSE, BREATHER

main85338-30010i13BT,3B..BJ7#198411-198609

main85338-71030i2L#..LJ7#198411-199001

main85338-74040i13BT,3B..BJ7#198609-199001

16571HOSE, RADIATOR, INLET

main16571-35100i22R..RJ7#198411-199001

main16571-35160i22RE..RJ7#198812-199001

main16571-54140i2LT..LJ7#198510-199001

main16571-54200i2L..LJ70198411-198510

main16571-58040i13BT,3B..BJ7#..LX,STD198411-199001

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i2L#..LJ70198411-198812

sub90467-37003

main90467-37002i22R#..RJ7#198812-199001

sub90467-37005

main90467-42001i13BT,3B..BJ7#198411-198904

sub90467-41002

main96111-10480i3B..BJ73..VM198904

16572HOSE, RADIATOR, OUTLET

main16572-35090i22R#..RJ7#198411-199001

main16572-54110i2LT..LJ7#198510-199001

main16572-54210i2L..LJ70198411-198510

main16572-58040i13BT,3B..BJ7#..LX,STD198411-199001

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-50016i13BT..BJ71198411-199001

RADIATOR SIDE

sub96111-10500

main90460-50016i3B..BJ73..VM198510-198904

sub96111-10500

main90460-53004i3B..BJ73..VM198904

sub96111-10530

main96111-10460i22R#..RJ7#198411-199001

RADIATOR SIDE

main96111-10500i2L#..LJ7#198411-199001

WATER PUMP SIDE

main96111-10510i3B..BJ70,73,75..LX,STD198808-199001

RADIATOR SIDE

main96111-10560i13BT,3B..BJ7#..LX,STD198411-199001

WATER PUMP SIDE

main96111-10570i3B..BJ73..VM198904

16582BRACKET, RADIATOR, NO.1

main16582-68010i13BT,3B..BJ7#198411-199001

16701SHROUD SUB-ASSY, FAN

main16711-35040i22R#..RJ7#198411-199001

main16711-54190i2L..LJ70198411-198510

main16711-54200i2LT..LJ7#198510-198708

sub16711-54250

sub91651-40820

main16711-54250i2LT..LJ7#198708-199001

main16711-58020i13BT,3B..BJ7#198411-199001

main16711-58030i3B..BJ73..VM198808-199001

8401

9017906070

main90179-06070

9017908026

main90179-08026

9017908088

main90179-08088

9017908096

main90179-08096

9020108036

main90201-08036

9043012221

main90430-12221

9046208033

main90462-08033

9046400381

main90464-00381

9046709022

main90467-09022

9161160822

main91611-60822

9161160825

main91611-60825

9161161020

main91611-61020

9165140614

main91651-40614

9165140816

main91651-40816

9165140835

main91651-40835

9165161025

main91651-61025

45 parts on this diagram · 6 diagrams in section
