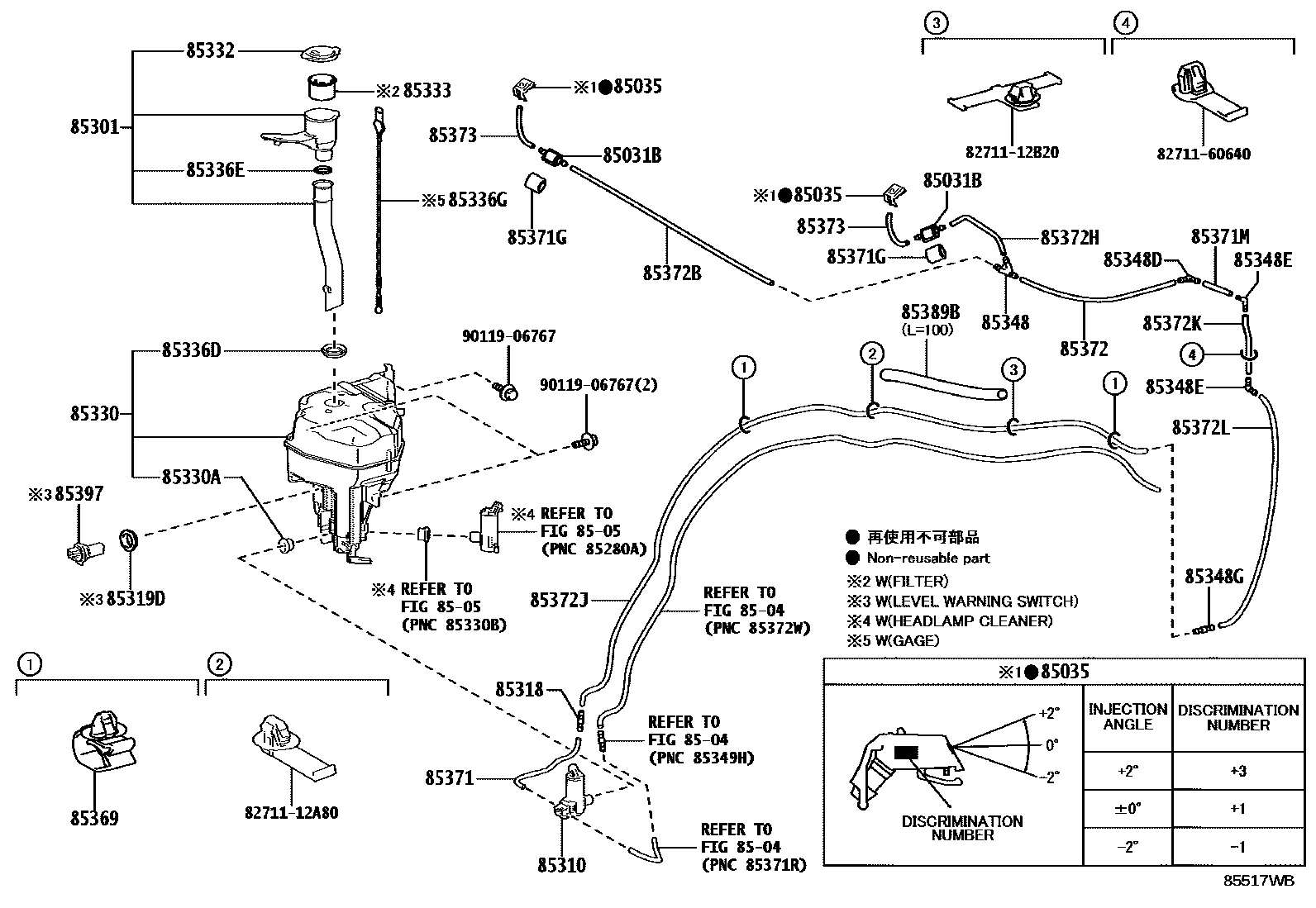

85031BVALVE SUB-ASSY, WASHER

main85321-26020×2i202401-202509

85035NOZZLE SUB-ASSY, WASHER

main85381-28220×2i202401

ANGLE 0

main85381-28230×2i202401-202509

ANGLE +2

main85381-28240×2i202401

ANGLE -2

main85381-60131×2i202401

WINDSHIELD GLASS-ACOUSTIC TYPE & WITH(TOP SHADE),EHW,ANGLE 0

main85381-60141×2i202407

COLD AREA SPEC&WINDSHIELD GLASS-ACOUSTIC TYPE & WITH(TOP SHADE),EHW,ANGLE +2

main85381-60151×2i202407

COLD AREA SPEC&WINDSHIELD GLASS-ACOUSTIC TYPE & WITH(TOP SHADE),EHW,ANGLE -2

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-60120i202401-202509

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47100i202401

85318JOINT, WINDSHIELD WASHER MOTOR

main85349-89122i202401-202509

85319DPACKING, FRONT WASHER

main85319-33230i202401

COLD AREA SPEC; COLD AREA SPEC&HEADLAMP CLEANER-WITH

85330JAR ASSY, WINDSHIELD WASHER

main85315-60490i202401-202509

main85315-60500i202401

COLD AREA SPEC

main85355-60310i202404

COLD AREA SPEC

main85355-60410i202404

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2i202404

COLD AREA SPEC; COLD AREA SPEC&HEADLAMP CLEANER-WITHOUT; HEADLAMP CLEANER-WITHOUT

85332CAP, WINDSHIELD WASHER JAR

main85316-24130i202401-202509

85333FILTER, WINDSHIELD WASHER JAR

main85312-60050i202404

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i202401-202509

HEADLAMP CLEANER-WITH

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320i202401-202509

85336GGAGE, WATER LEVEL

main85312-21020i202404-202509

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85378-33410i202401-202509

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200i202401

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200×2i202401-202509

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i202401-202509

85369CLAMP

main82711-16790×2i202401-202509

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i202401-202509

L=1450(*H,L=200); L=1450(*H,L=200),HEADLAMP CLEANER-WITH

85371GPROTECTOR, FRONT WASHER

main85389-26080×2i202401-202509

85371MHOSE, WINDSHIELD WASHER (FROM JOINT TO TANK)

main90099-33080i202401-202509

L=1450(*H,L=60)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i202401-202509

L=1450(*H,L=310)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i202401-202509

L=1450(*H,L=610)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i202401-202509

L=1450(*H,L=170)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33902i202401-202509

L=1160

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080i202401-202509

L=1450(*H,L=110)

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90099-33080i202401-202509

L=1450(*H,L=410)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i202401-202509

L=1450(*H,L=80)

85389BPROTECTOR, WINDSHIELD WASHER

main85389-60830i202401-202509

85397SWITCH ASSY,LEVEL WARNING

main85397-52100i202401

COLD AREA SPEC; COLD AREA SPEC&HEADLAMP CLEANER-WITH

8271112A80WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12A80

8271112B20WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B20

8271160640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60640

9011906767

main90119-06767
