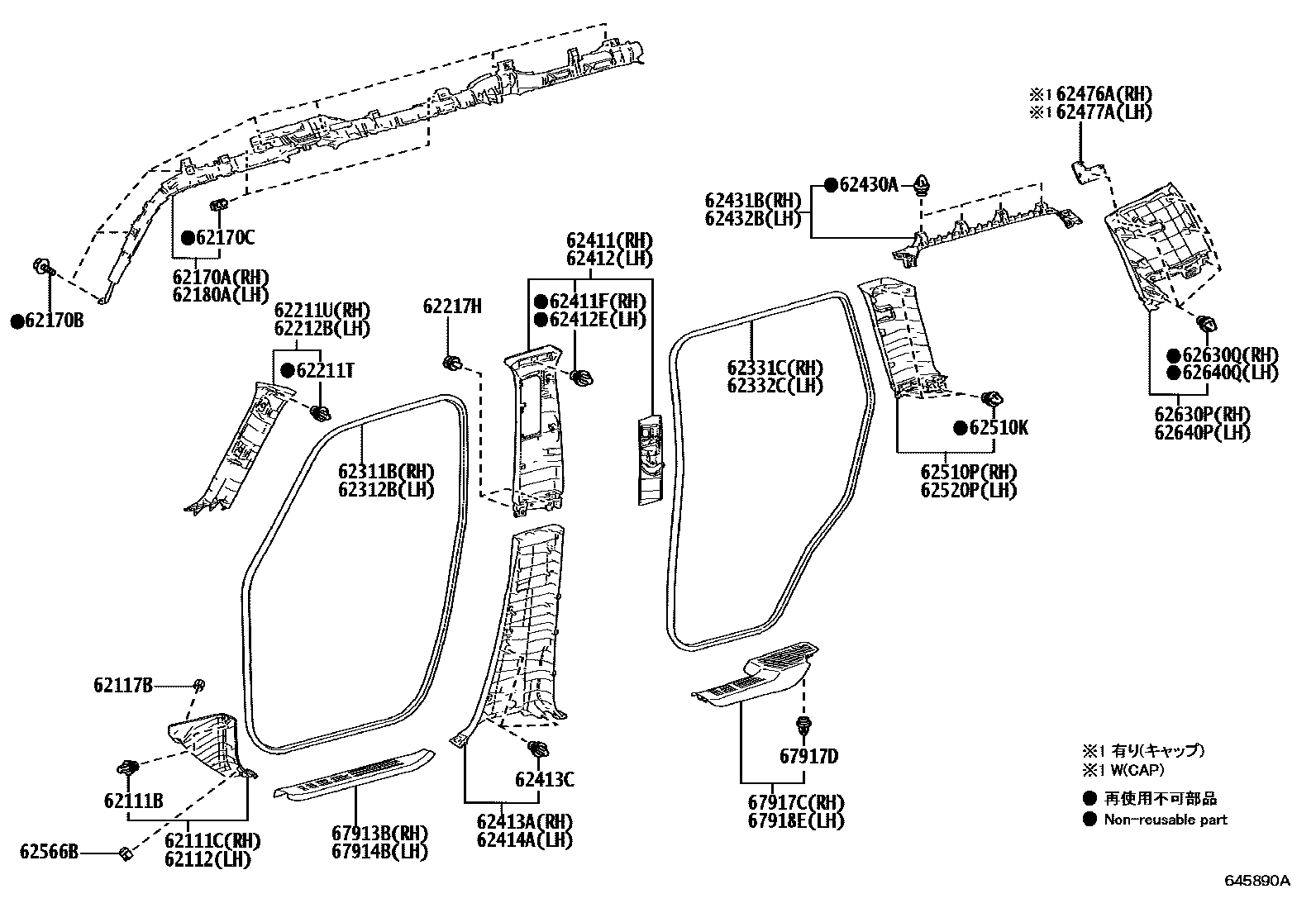

INSIDE TRIM BOARD

0001 1 0002 1RH 0003 1LH

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iGDJ250..RHD..EUR202401-202509

62111CBOARD, COWL SIDE TRIM, RH

main62111-60210-C0iGDJ250,TJA250..LHD..A202401

BLACK,TRIM1#,2#,4#

main62111-60210-C0iGDJ250,TJA250..LHD..A202401

BLACK,TRIM2#,4#

main62111-60210-C0iGDJ250,TJA250..LHD..A202401

BLACK,TRIM2#

main62111-60220-C0iGDJ25#..RHD..A..(ARL,GEN,SA)202401-202509

BLACK,TRIM2#

main62111-60220-C0iGDJ25#..RHD..A..(ARL,GEN,SA)202401-202509

BLACK,TRIM1#,2#,4#

main62111-60220-C0iGDJ25#..RHD..U..(ARL,GEN)202401-202509

BLACK,TRIM2#,4#

62112BOARD, COWL SIDE TRIM, LH

main62112-60350-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#,4#

main62112-60350-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#

main62112-60350-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM1#,2#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iGDJ250..RHD..EUR202401-202509

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-60220iGDJ250,TJA250,TRJ250..GCC,GEN202401-202407

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE)

main62170-60222iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,RUS,SA202407

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE)

main62170-60222iGDJ250..RHD..EUR202407-202509

62170BBOLT, W/WASHER

main91673-80616iGDJ250,TJA250,TRJ250..GCC,GEN202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE)

main91673-80616iGDJ250..RHD..EUR202401-202509

62170CCLIP, CURTAIN SHIELD AIRBAG

main90467-18017iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,RUS,SA202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE)

main90467-18017iGDJ250..RHD..EUR202401-202509

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-60220iGDJ250,TJA250,TRJ250..GCC,GEN202401-202407

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE)

main62180-60222iGDJ250,TJA250,TRJ250..GCC,GEN202407

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE)

main62180-60222iGDJ250..RHD..EUR202407-202509

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

62211UGARNISH ASSY, FRONT PILLAR, RH

main62210-60400-A0iGDJ250,TJA250..8FC..R..(GCC,GEN)202401

FROMAGE,TRIM1#,4#

main62210-60400-A0iGDJ250,TJA250..8FC..R..(GCC,GEN)202401

FROMAGE,TRIM1#,40

main62210-60400-C0iGDJ250,TJA250..A..(GCC,GEN)202401

BLACK,TRIM2#

main62210-60400-C0iGDJ250,TJA250..8FC..R..(GCC,GEN)202401

BLACK,TRIM2#,41

main62210-60400-C0iGDJ250,TJA250..8FC..R..(GCC,GEN)202401

BLACK,TRIM2#,4#

main62210-60420-A0iTJA250..(L,R)..RUS;GDJ250..LHD..L..EUR;GDJ250..L..(RUS,SA);GDJ25#,TRJ250..R..(ARL,RUS)202401

FROMAGE,TRIM1#,40

main62210-60420-A0iTJA250..(L,R)..RUS;GDJ250..LHD..L..EUR;GDJ250..L..(RUS,SA);GDJ25#,TRJ250..R..(ARL,RUS)202401-202509

FROMAGE,TRIM1#,4#

main62210-60420-A0iTJA250..(L,R)..RUS;GDJ250..LHD..L..EUR;GDJ250..L..(RUS,SA);GDJ25#,TRJ250..R..(ARL,RUS)202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),FROMAGE,TRIM1#,40

main62210-60420-A0iTJA250..(L,R)..RUS;GDJ250..LHD..L..EUR;GDJ250..L..(RUS,SA);GDJ25#,TRJ250..R..(ARL,RUS)202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),FROMAGE,TRIM1#,4#

main62210-60420-C0iGDJ250..LHD..A..EUR;GDJ250,TJA250..A..(RUS,SA)202401-202509

BLACK,TRIM2#

main62210-60420-C0iGDJ250..LHD..A..EUR;GDJ250,TJA250..A..(RUS,SA)202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM2#,41

main62210-60420-C0iGDJ250..LHD..A..EUR;GDJ250,TJA250..A..(RUS,SA)202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM2#,4#

main62210-60420-C0iGDJ250..LHD..A..EUR;GDJ250,TJA250..A..(RUS,SA)202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM2#

main62210-60420-C0iGDJ250..L..SA;GDJ250..R..RUS;TJA250..(L,R,U)..RUS;GDJ250..LHD..(L,U)..(EUR,RUS);GDJ251,TRJ250..(R,U)..(ARL,RUS)202401

BLACK,TRIM2#,41

main62210-60420-C0iGDJ250..L..SA;GDJ250..R..RUS;TJA250..(L,R,U)..RUS;GDJ250..LHD..(L,U)..(EUR,RUS);GDJ251,TRJ250..(R,U)..(ARL,RUS)202401-202509

BLACK,TRIM2#,4#

main62210-60430-A0iGDJ251..L202408

FROMAGE,TRIM1#,4#

main62210-60430-C0iGDJ251..L202408

BLACK,TRIM2#

main62210-60430-C0iGDJ251..L202408

BLACK,TRIM2#,4#

62212BGARNISH ASSY, FRONT PILLAR, LH

main62220-60400-A0iGDJ250,TJA250..8FC..R..(GCC,GEN)202401

FROMAGE,TRIM1#,4#

main62220-60400-A0iGDJ250,TJA250..L..(GCC,GEN);GDJ250,TRJ250..6FC..R..(GCC,GEN)202401

FROMAGE,TRIM1#,40

main62220-60400-C0iGDJ250,TJA250..A..(GCC,GEN)202401

BLACK,TRIM2#,41

main62220-60400-C0iGDJ250,TJA250..8FC..R..(GCC,GEN)202401

BLACK,TRIM2#,4#

main62220-60400-C0iGDJ250,TJA250..8FC..R..(GCC,GEN)202401

BLACK,TRIM2#

main62220-60420-A0iGDJ250..R..SA;GDJ250..LHD..R..EUR202401

FROMAGE,TRIM1#,40

main62220-60420-A0iGDJ250..R..SA;GDJ250..LHD..R..EUR202401-202509

FROMAGE,TRIM1#,4#

main62220-60420-A0iGDJ250..R..SA;GDJ250..LHD..R..EUR202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),FROMAGE,TRIM1#,40

main62220-60420-A0iGDJ250..R..SA;GDJ250..LHD..R..EUR202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),FROMAGE,TRIM1#,4#

main62220-60420-C0iGDJ250..LHD..A..EUR;GDJ250,TJA250..A..(RUS,SA)202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM2#

main62220-60420-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#,4#

main62220-60420-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#

main62220-60420-C0iGDJ250..R..SA;GDJ250..LHD..R..EUR202401

BLACK,TRIM2#,41

main62220-60420-C0iGDJ250..R..SA;GDJ250..LHD..R..EUR202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM2#,41

main62220-60420-C0iGDJ250..R..SA;GDJ250..LHD..R..EUR202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM2#,4#

main62220-60430-A0iGDJ251..L202408

FROMAGE,TRIM1#,4#

main62220-60430-C0iGDJ251..L202408

BLACK,TRIM2#

main62220-60430-C0iGDJ251..L202408

BLACK,TRIM2#,4#

62217HCLIP, CENTER PILLER GARNISH

main90467-10216iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-60190iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-60190iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-60120iGDJ250..RHD..EUR202401-202509

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-60120iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

62411GARNISH, CENTER PILLAR, RH

main62410-60280-A0iGDJ250,TJA250..L..(GCC,GEN);GDJ250,TRJ250..6FC..R..(GCC,GEN)202401

FROMAGE,TRIM1#,40

main62410-60280-A0iGDJ250,TJA250..8FC..R..(GCC,GEN)202401

FROMAGE,TRIM1#,4#

main62410-60280-C0iGDJ250,TRJ250..6FC..(GCC,GEN);GDJ250,TJA250..8FC..(L,U)..(GCC,GEN)202401

BLACK,TRIM2#,41

main62410-60280-C0iGDJ250,TJA250..8FC..R..(GCC,GEN)202401

BLACK,TRIM2#,4#

main62410-60280-C0iGDJ250,TJA250..8FC..R..(GCC,GEN)202401

BLACK,TRIM2#

main62410-60290-A0iGDJ250..R..RUS;GDJ250..L..(RUS,SA);GDJ250..LHD..L..EUR;GDJ251,TJA250,TRJ250..(L,R)..(ARL,RUS)202401-202509

FROMAGE,TRIM1#,4#

main62410-60290-A0iGDJ250..R..RUS;GDJ250..L..(RUS,SA);GDJ250..LHD..L..EUR;GDJ251,TJA250,TRJ250..(L,R)..(ARL,RUS)202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),FROMAGE,TRIM1#,40

main62410-60290-A0iGDJ250..R..RUS;GDJ250..L..(RUS,SA);GDJ250..LHD..L..EUR;GDJ251,TJA250,TRJ250..(L,R)..(ARL,RUS)202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),FROMAGE,TRIM1#,4#

main62410-60290-A0iGDJ250,TJA250..8FC..R..(GCC,GEN)202401

FROMAGE,TRIM1#,40

main62410-60290-C0iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,RUS,SA)202401-202509

BLACK,TRIM2#,4#

main62410-60290-C0iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,RUS,SA)202401-202509

BLACK,TRIM2#

main62410-60290-C0iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,RUS,SA)202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM2#,41

main62410-60290-C0iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,RUS,SA)202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM2#,4#

main62410-60290-C0iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,RUS,SA)202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM2#

main62410-60290-C0iGDJ250..L..SA;GDJ250..R..RUS;GDJ250..LHD..(L,U)..(EUR,RUS);GDJ251,TJA250,TRJ250..(L,R,U)..(ARL,RUS)202401

BLACK,TRIM2#,41

62411FCLIP, CENTER PILLAR GARNISH, RH

main90467-10188iGDJ250..RHD..EUR202401-202509

62412GARNISH, CENTER PILLAR, LH

main62420-60280-A0iGDJ250,TJA250..L..(GCC,GEN);GDJ250,TRJ250..6FC..R..(GCC,GEN)202401

FROMAGE,TRIM1#,40

main62420-60280-A0iGDJ250,TJA250..8FC..R..(GCC,GEN)202401

FROMAGE,TRIM1#,4#

main62420-60280-C0iGDJ250,TRJ250..6FC..(GCC,GEN);GDJ250,TJA250..8FC..(L,U)..(GCC,GEN)202401

BLACK,TRIM2#,41

main62420-60280-C0iGDJ250,TJA250..8FC..R..(GCC,GEN)202401

BLACK,TRIM2#,4#

main62420-60280-C0iGDJ250,TJA250..8FC..R..(GCC,GEN)202401

BLACK,TRIM2#

main62420-60290-A0iGDJ250..R..SA;GDJ250..LHD..R..EUR202401

FROMAGE,TRIM1#,40

main62420-60290-A0iGDJ250..R..SA;GDJ250..LHD..R..EUR202401-202509

FROMAGE,TRIM1#,4#

main62420-60290-A0iGDJ250..R..SA;GDJ250..LHD..R..EUR202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),FROMAGE,TRIM1#,40

main62420-60290-A0iGDJ250..R..SA;GDJ250..LHD..R..EUR202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),FROMAGE,TRIM1#,4#

main62420-60290-C0iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,RUS,SA)202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM2#

main62420-60290-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#,4#

main62420-60290-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#

main62420-60290-C0iGDJ250..R..SA;GDJ250..LHD..R..EUR202401

BLACK,TRIM2#,41

main62420-60290-C0iGDJ250..R..SA;GDJ250..LHD..R..EUR202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM2#,41

main62420-60290-C0iGDJ250..R..SA;GDJ250..LHD..R..EUR202401

FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM2#,4#

62412ECLIP, CENTER PILLAR GARNISH, LH

main90467-10188iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-60130-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#,4#

main62413-60130-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM1#,2#,4#

main62413-60130-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10167iGDJ250..RHD..EUR202401-202509

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-60130-C0iGDJ250..LHD..U..EUR;GDJ25#,TJA250,TRJ250..U..(ARL,GCC,GEN,RUS)202401-202509

BLACK,TRIM2#

main62414-60130-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#,4#

main62414-60130-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM1#,2#,4#

62430ACLIP, ROOF SIDE RAIL GARNISH

main90467-09245iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

62431BGARNISH, ROOF SIDE RAIL, NO.1 RH

main62431-60120-A0iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..L,R;TJA250..(L,R)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA)202401

FROMAGE,TRIM1#,40

main62431-60120-A0iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..L,R;TJA250..(L,R)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA)202401-202509

FROMAGE,TRIM1#,4#

main62431-60120-C0iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401-202509

BLACK,TRIM2#

main62431-60120-C0iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,GCC,GEN,RUS,SA)202401

BLACK,TRIM2#,41

main62431-60120-C0iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,GCC,GEN,RUS,SA)202401-202509

BLACK,TRIM2#,4#

62432BGARNISH, ROOF SIDE RAIL, NO.1 LH

main62432-60110-A0iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..L,R;TJA250..(L,R)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA)202401

FROMAGE,TRIM1#,40

main62432-60110-A0iGDJ250..RHD..(L,R)..EUR202401-202509

FROMAGE,TRIM1#,4#

main62432-60110-C0iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401

BLACK,TRIM2#,41

main62432-60110-C0iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401-202509

BLACK,TRIM2#

main62432-60110-C0iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,GCC,GEN,RUS,SA)202401-202509

BLACK,TRIM2#,4#

62476ACAP, ROOF SIDE INNER GARNISH, RH

main62476-60020-A0iGDJ250..RHD..R..EUR202401-202509

FROMAGE,TRIM1#

main62476-60020-A0iGDJ250..LHD..R..EUR;GDJ25#,TJA250,TRJ250..R..(ARL,GCC,GEN,RUS,SA)202401

REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT MANUAL,FROMAGE,TRIM1#

main62476-60020-C0iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..R,U;TJA250..(R,U)..RUS;GDJ250..LHD..U..EUR;TJA250..U..(GCC,GEN);GDJ250..U..(GCC,GEN,RUS)202401

REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2#,4#

main62476-60020-C0iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..R,U;TJA250..(R,U)..RUS;GDJ250..LHD..U..EUR;TJA250..U..(GCC,GEN);GDJ250..U..(GCC,GEN,RUS)202401

REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#

main62476-60020-C0iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..R,U;TJA250..(R,U)..RUS;GDJ250..LHD..U..EUR;TJA250..U..(GCC,GEN);GDJ250..U..(GCC,GEN,RUS)202401

REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#,4#

main62476-60020-C0iGDJ250..LHD..A..EUR;GDJ250,TJA250..A..(GCC,GEN,RUS,SA)202401-202509

BLACK,TRIM2#,4#

main62476-60020-C0iGDJ250..LHD..A..EUR;GDJ250,TJA250..A..(GCC,GEN,RUS,SA)202401-202509

BLACK,TRIM2#

62477ACAP, ROOF SIDE INNER GARNISH, LH

main62477-60020-A0iGDJ250..LHD..R..EUR;GDJ250,TJA250,TRJ250..R..(GCC,GEN,RUS,SA)202401-202509

FROMAGE,TRIM1#

main62477-60020-A0iGDJ250..LHD..R..EUR;GDJ250,TJA250,TRJ250..R..(GCC,GEN,RUS,SA)202401

REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT MANUAL,FROMAGE,TRIM1#

main62477-60020-C0iGDJ250..RHD..(R,U)..EUR202401-202509

BLACK,TRIM2#

main62477-60020-C0iGDJ250..RHD..(R,U)..EUR202401-202509

BLACK,TRIM2#,4#

main62477-60020-C0iGDJ250..LHD..R..EUR;GDJ250,TJA250..LHD..A..(EUR,RUS);GDJ250,TJA250..8FC..(A,R)..(GCC,GEN,SA)202401

REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2#,4#

main62477-60020-C0iGDJ250..LHD..R..EUR;GDJ250,TJA250..LHD..A..(EUR,RUS);GDJ250,TJA250..8FC..(A,R)..(GCC,GEN,SA)202401

REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#

main62477-60020-C0iGDJ250..LHD..R..EUR;GDJ250,TJA250..LHD..A..(EUR,RUS);GDJ250,TJA250..8FC..(A,R)..(GCC,GEN,SA)202401

REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#,4#

62510KCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-10167iGDJ250..RHD..EUR202401-202509

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-60L30-A0iGDJ250..RHD..(L,R)..EUR202401-202509

FROMAGE,TRIM1#,4#

main62510-60L30-A0iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401

FROMAGE,TRIM1#,40

main62510-60L30-C0iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401-202509

BLACK,TRIM2#,4#

main62510-60L30-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#

main62510-60L30-C0iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401

BLACK,TRIM2#,41

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-60S00-A0iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401

FROMAGE,TRIM1#,40

main62520-60S00-A0iGDJ250..RHD..(L,R)..EUR202401-202509

FROMAGE,TRIM1#,4#

main62520-60S00-C0iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..L,R,U;TJA250..(L,R,U)..RUS;GDJ250..LHD..(L,U)..EUR;TJA250..(L,U)..(GCC,GEN);GDJ250..(L,U)..(GCC,GEN,RUS,SA)202401

BLACK,TRIM2#,41

main62520-60S00-C0iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,GCC,GEN,RUS,SA)202401-202509

BLACK,TRIM2#

main62520-60S00-C0iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,GCC,GEN,RUS,SA)202401-202509

BLACK,TRIM2#,4#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-48020iGDJ250..RHD..EUR202401-202509

62630PPANEL ASSY, QUARTER TRIM, REAR RH

main62630-60340-A0iGDJ250..RHD..(L,R)..EUR202401-202509

FROMAGE,TRIM1#,4#

main62630-60340-A0iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401

FROMAGE,TRIM1#,40

main62630-60340-C0iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,GCC,GEN,RUS,SA)202401-202509

BLACK,TRIM2#,4#

main62630-60340-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#

main62630-60340-C0iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401

BLACK,TRIM2#,41

62630QCLIP (FOR QUARTER TRIM)

main90467-09245iGDJ250..RHD..EUR202401-202509

62640PPANEL ASSY, QUARTER TRIM, REAR LH

main62640-60320-A0iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..L,R;TJA250..(L,R)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA)202401

FROMAGE,TRIM1#,40

main62640-60320-A0iGDJ250..RHD..(L,R)..EUR202401-202509

FROMAGE,TRIM1#,4#

main62640-60320-C0iGDJ250..RHD..(L,R,U)..EUR202401-202509

BLACK,TRIM2#

main62640-60320-C0iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..L,R,U;TJA250..(L,R,U)..RUS;GDJ250..LHD..(L,U)..EUR;TJA250..(L,U)..(GCC,GEN);GDJ250..(L,U)..(GCC,GEN,RUS,SA)202401

BLACK,TRIM2#,41

main62640-60320-C0iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..L,R,U;TJA250..(L,R,U)..RUS;GDJ250..LHD..(L,U)..EUR;TJA250..(L,U)..(GCC,GEN);GDJ250..(L,U)..(GCC,GEN,RUS,SA)202401-202509

BLACK,TRIM2#,4#

62640QCLIP (FOR QUARTER TRIM REAR PANEL)

main90467-09245iGDJ250..RHD..EUR202401-202509

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-60300-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM1#,2#,4#

main67913-60300-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#

main67913-60300-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#,4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-60270-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#

main67914-60270-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#,4#

main67914-60270-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM1#,2#,4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-60250-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#

main67917-60250-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#,4#

main67917-60250-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM1#,2#,4#

67917DCLIP, REAR DOOR SCUFF PLATE

main90467-09203iGDJ250..RHD..EUR202401-202509

67918EPLATE, REAR DOOR SCUFF, LH

main67918-60240-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#

main67918-60240-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#,4#

main67918-60240-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM1#,2#,4#

41 parts on this diagram · 3 diagrams in section
