CONSOLE BOX & BRACKET

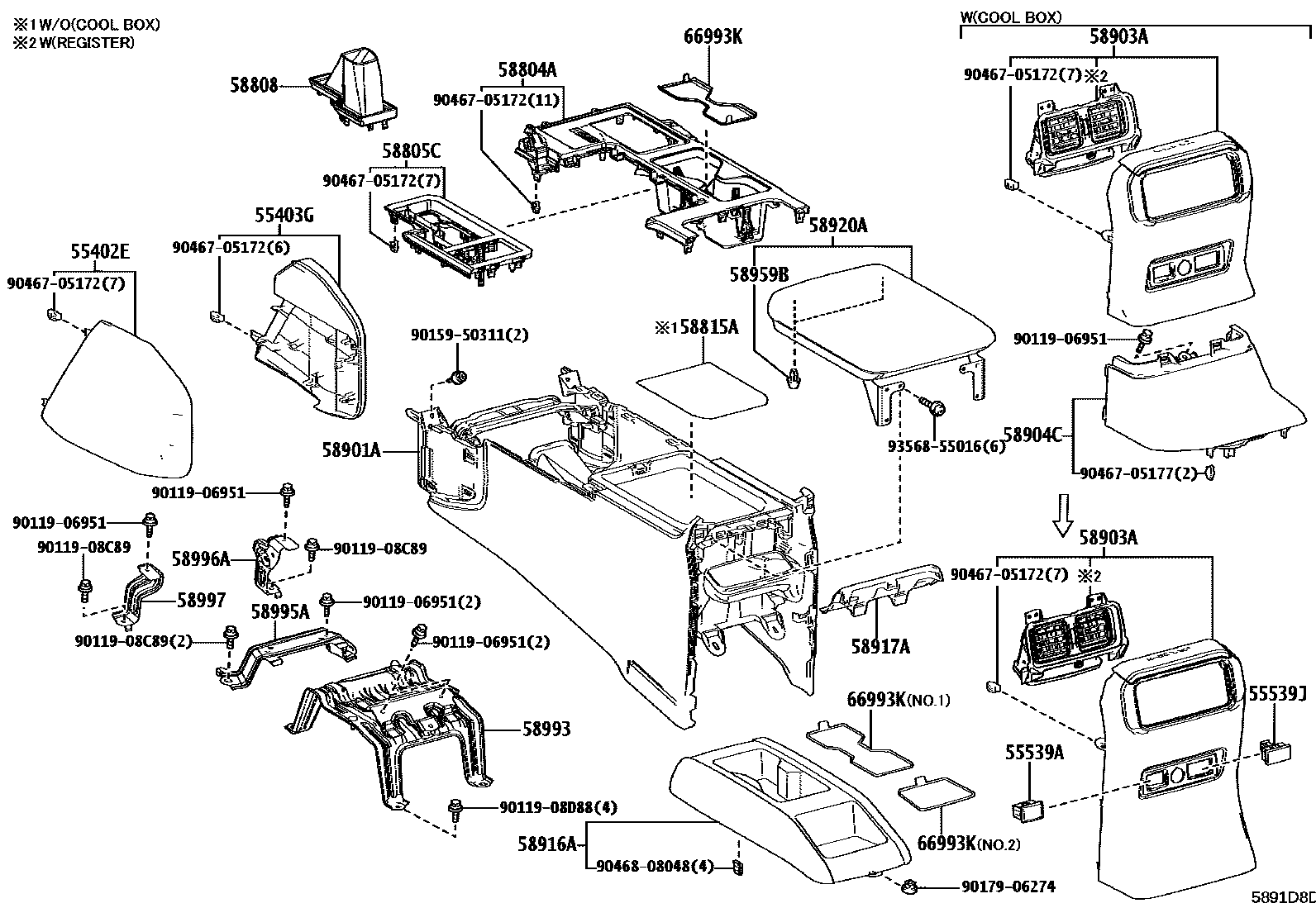

Parts diagram
55402EPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1
main55402-60240-C0i202401
BLACK,TRIM2#
main55402-60240-C0i202401
BLACK,TRIM1#,2#
main55402-60360-B0i202404
CHATEAU,TRIM1#
main55402-60360-C0i202401
MIDDLE GRADE PACKAGE FOR AR,BLACK,TRIM2#,4#
main55402-60360-C0i202404
BLACK,TRIM2#
main55402-60360-C0i202401
HIGH GRADE PACKAGE FOR AR,BLACK,TRIM2#
main55402-60360-C0i202401
MIDDLE GRADE PACKAGE FOR AR,BLACK,TRIM2#
main55402-60360-C0i202401
BLACK,TRIM2#,4#
main55402-60360-C0i202401
HIGH GRADE PACKAGE FOR AR,BLACK,TRIM2#,4#
main55402-60370-C0i202401-202509
BLACK,TRIM1#,2#
main55402-60370-C0i202401-202509
BLACK,TRIM2#
main55402-60380-B0i202404-202509
CHATEAU,TRIM1#
main55402-60380-C0i202401-202509
HIGH GRADE PACKAGE FOR AR,BLACK,TRIM2#
main55402-60380-C0i202401-202509
MIDDLE GRADE PACKAGE FOR AR,BLACK,TRIM2#
main55402-60380-C0i202401-202509
BLACK,TRIM2#,4#
main55402-60380-C0i202404-202509
BLACK,TRIM2#
main55402-60380-C0i202401
HIGH GRADE PACKAGE FOR AR,BLACK,TRIM2#,4#
main55402-60380-C0i202401
MIDDLE GRADE PACKAGE FOR AR,BLACK,TRIM2#,4#
55403GPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2
main55403-60350-C0i202401
BLACK,TRIM1#,2#
main55403-60350-C0i202401
BLACK,TRIM2#
main55403-60360-B0i202404
CHATEAU,TRIM1#
main55403-60360-C0i202404
BLACK,TRIM2#
main55403-60360-C0i202401
MIDDLE GRADE PACKAGE FOR AR,BLACK,TRIM2#
main55403-60360-C0i202401
MIDDLE GRADE PACKAGE FOR AR,BLACK,TRIM2#,4#
main55403-60360-C0i202401
HIGH GRADE PACKAGE FOR AR,BLACK,TRIM2#
main55403-60360-C0i202401
HIGH GRADE PACKAGE FOR AR,BLACK,TRIM2#,4#
main55403-60360-C0i202401
BLACK,TRIM2#,4#
main55403-60370-C0i202401-202509
BLACK,TRIM2#
main55403-60370-C0i202401-202509
BLACK,TRIM1#,2#
main55403-60380-B0i202404-202509
CHATEAU,TRIM1#
main55403-60380-C0i202401-202509
BLACK,TRIM2#,4#
main55403-60380-C0i202401
HIGH GRADE PACKAGE FOR AR,BLACK,TRIM2#,4#
main55403-60380-C0i202401-202509
HIGH GRADE PACKAGE FOR AR,BLACK,TRIM2#
main55403-60380-C0i202401
MIDDLE GRADE PACKAGE FOR AR,BLACK,TRIM2#,4#
main55403-60380-C0i202401-202509
MIDDLE GRADE PACKAGE FOR AR,BLACK,TRIM2#
main55403-60380-C0i202404-202509
BLACK,TRIM2#
55539ACOVER, SPARE SWITCH HOLE
main55539-58100-C1i202401-202509
BLACK,TRIM2#
main55539-58100-C1i202401-202509
BLACK,TRIM1#,2#
main55539-58100-C1i202401
BLACK,TRIM1#,2#,4#
main55539-58100-C1i202401-202509
BLACK,TRIM2#,4#
55539JCOVER, SPARE SWITCH HOLE
main55539-60390i202401-202509
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-60J30i202401
main58804-60K80i202401-202509
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
main58805-60390i202401
main58805-60400i202401
HIGH GRADE PACKAGE FOR AR&FIRST EDITION PACKAGE
main58805-60500i202404
main58805-60510i202401-202509
main58805-60520i202401
HIGH GRADE PACKAGE FOR AR&FIRST EDITION PACKAGE
main58805-60520i202401-202509
main58805-60530i202404-202509
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-60600-C0i202401
BLACK,TRIM2#
main58808-60600-C0i202401
BLACK,TRIM1#,2#,4#
main58808-60610-C0i202401
HIGH GRADE PACKAGE FOR AR&STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK,TRIM1#,2#,4#
main58808-60610-C0i202401
BLACK,TRIM2#,4#
main58808-60610-C0i202401
HIGH GRADE PACKAGE FOR AR&STEERING WHEEL-LEATHER & WITHOUT(STEERING HEATER),BLACK,TRIM1#,2#,4#
main58808-60610-C0i202401
MIDDLE GRADE PACKAGE FOR AR&STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK,TRIM1#,2#,4#
main58808-60610-C0i202401
MIDDLE GRADE PACKAGE FOR AR&STEERING WHEEL-LEATHER & WITHOUT(STEERING HEATER),BLACK,TRIM1#,2#,4#
main58808-60620-C0i202401-202509
BLACK,TRIM2#
main58808-60620-C0i202401-202509
BLACK,TRIM1#,2#
main58808-60630-C0i202401
MIDDLE GRADE PACKAGE FOR AR&STEERING WHEEL-LEATHER & WITHOUT(STEERING HEATER),BLACK,TRIM1#,2#
main58808-60630-C0i202401-202509
BLACK,TRIM2#,4#
main58808-60630-C0i202401
HIGH GRADE PACKAGE FOR AR&STEERING WHEEL-LEATHER & WITHOUT(STEERING HEATER),BLACK,TRIM1#,2#,4#
main58808-60630-C0i202401
HIGH GRADE PACKAGE FOR AR&STEERING WHEEL-LEATHER & WITHOUT(STEERING HEATER),BLACK,TRIM1#,2#
main58808-60630-C0i202401
MIDDLE GRADE PACKAGE FOR AR&STEERING WHEEL-LEATHER & WITHOUT(STEERING HEATER),BLACK,TRIM1#,2#,4#
main58808-60680-C0i202404
BLACK,TRIM1#,2#
main58808-60690-C0i202404-202509
BLACK,TRIM1#,2#
58815ACARPET, CONSOLE BOX
main58815-60180i202401-202509
58901ABOX SUB-ASSY, CONSOLE, REAR
main58901-60B90-C0i202404
BLACK,TRIM1#,2#
main58901-60C00-C0i202401
BLACK,TRIM2#
main58901-60C00-C0i202401
BLACK,TRIM2#,4#
main58901-60C00-C0i202401
BLACK,TRIM1#,2#,4#
main58901-60C00-C0i202401
BLACK,TRIM1#,2#
main58901-60C10-C0i202408
BLACK,TRIM2#,4#
main58901-60C20-C0i202401-202509
BLACK,TRIM2#
main58901-60C20-C0i202401-202509
BLACK,TRIM1#,2#
main58901-60C20-C0i202401-202509
BLACK,TRIM2#,4#
main58901-60C20-C0i202401
BLACK,TRIM1#,2#,4#
main58901-60C30-C0i202404
BLACK,TRIM1#,2#
58903APANEL SUB-ASSY, CONSOLE REAR END
main58903-60600-C0i202401-202509
BLACK,TRIM2#
main58903-60600-C0i202401-202509
BLACK,TRIM1#,2#
main58903-60C10-C0i202408
BLACK,TRIM1#,2#
main58903-60C10-C0i202408
BLACK,TRIM2#
main58903-60D40-C0i202401-202509
BLACK,TRIM2#,4#
main58903-60D40-C0i202401
HIGH GRADE PACKAGE FOR AR&FIRST EDITION PACKAGE,BLACK,TRIM2#,4#
main58903-60D70-C0i202408
BLACK,TRIM2#,4#
main58903-60D90-C0i202404
BLACK,TRIM1#,2#
main58903-60E10-C0i202404-202509
BLACK,TRIM1#,2#
58904CPANEL SUB-ASSY, CONSOLE REAR END, NO.2
main58904-60170-C0i202408
BLACK,TRIM2#
main58904-60170-C0i202404-202509
BLACK,TRIM1#,2#
main58904-60170-C0i202408
BLACK,TRIM2#,4#
58916AINSERT, CONSOLE BOX, REAR
58917ACOVER, CONSOLE BOX, REAR
main58917-60210i202401-202509
58920AARMREST ASSY, REAR CONSOLE
main58920-60020-C0i202401-202509
BLACK,TRIM2#
main58920-60030-B1i202401-202509
CHATEAU/IVORY,TRIM1#
main58920-60030-C2i202401
REAR CONSOLE BOX-FRIDGE,W(FLOOR COVER)&REAR AIR CONDITIONER-WITH,BLACK/LT.GRAY,TRIM2#
main58920-60030-C2i202401-202509
REAR AIR CONDITIONER-WITH,BLACK/LT.GRAY,TRIM2#
main58920-60030-C2i202401-202509
BLACK/LT.GRAY,TRIM2#
main58920-60030-E2i202401-202509
DK.CHESTNUT/LT.GRAY,TRIM4#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-35010i202401-202509
58993BRACKET, CONSOLE BOX MOUNTING, REAR
main58993-60110i202401-202509
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-60120i202401-202509
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-60140i202401-202509
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
main58997-60120i202401-202509
66993KTRAY, CUP HOLDER
main66993-60040i202401-202509
HIGH GRADE PACKAGE FOR AR
main66993-60040i202401-202509
MIDDLE GRADE PACKAGE FOR AR
9011906951
main90119-06951
9011908C89
main90119-08C89
9011908D88
main90119-08D88
9015950311
main90159-50311
9017906274
main90179-06274
9046705172
main90467-05172
9046705177
main90467-05177
9046808048
main90468-08048
9356855016
main93568-55016

29 parts on this diagram · 2 diagrams in section
