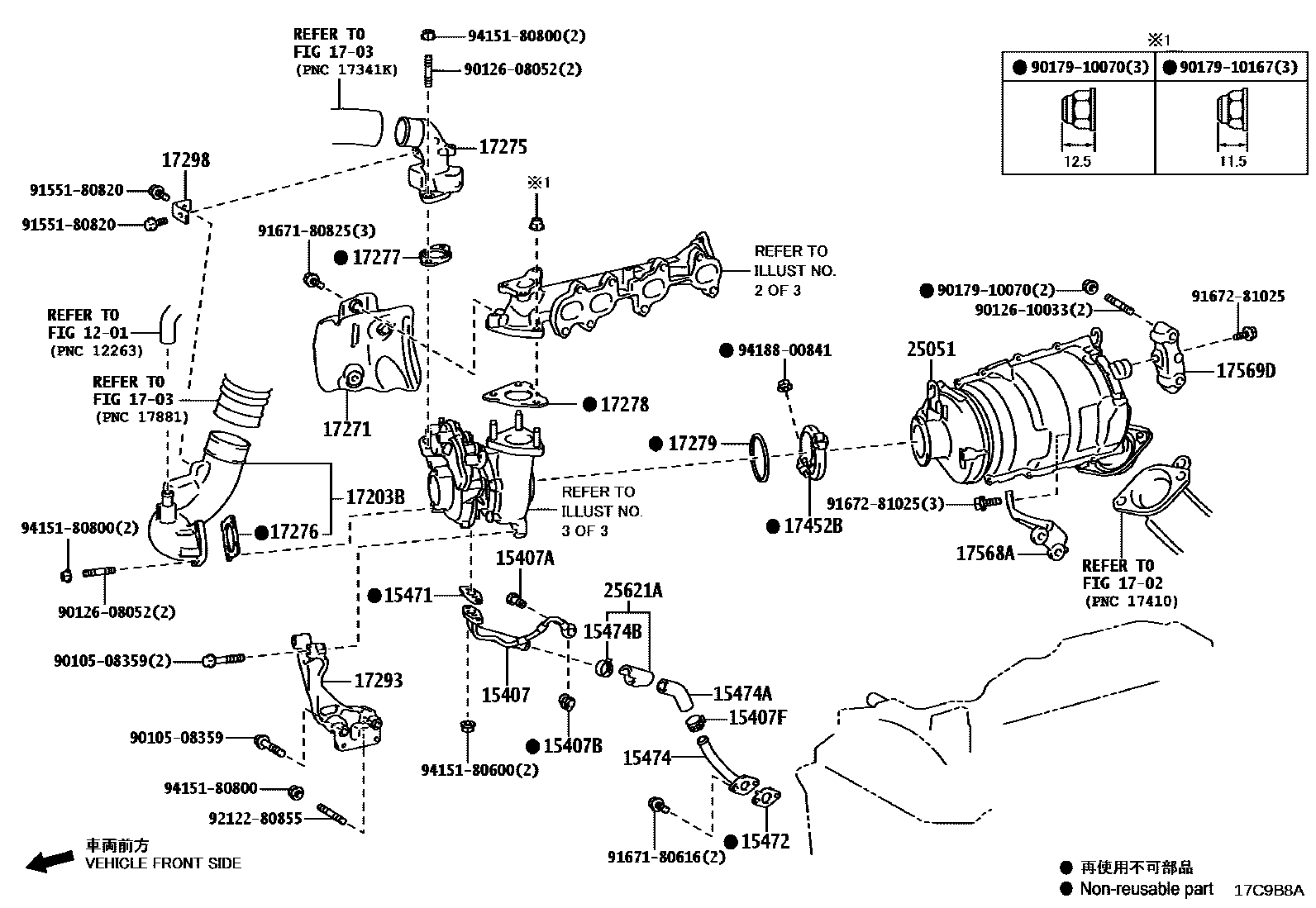

MANIFOLD
1201
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
15407BGASKET(FOR TURBO OIL INLET PIPE)
15407FCLAMP OR CLIP, OIL HOSE
DESTINATION PACKAGE(ERP)-UKRAINE SPEC&ENGINE-1GD-FTV
EXHAUST EMISSION CONTROL-EURO6-RDE
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
15472GASKET, TURBO OIL OUTLET, NO.1
15474PIPE, TURBO OIL OUTLET
15474AHOSE, TURBO OIL OUTLET
15474BCLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
DESTINATION PACKAGE(ERP)-UKRAINE SPEC&ENGINE-1GD-FTV
1702
1703
17203BELBOW SUB-ASSY, COMPRESSOR INLET
main17203-35010i1GDFTV..GDJ251;1GDFTV..GDJ250..6FC..U;1GDFTV..GDJ250..(A,L,R)..GEN;1GDFTV..GDJ250..LHD..8FC..U..GEN202401
EXHAUST EMISSION CONTROL-EURO0, WITHOUT(ON BOARD DIAGNOSIS)
COLD AREA SPEC
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6-RDE
17275ELBOW, COMPRESSOR OUTLET
17277GASKET, COMPRESSOR OUTLET
17278GASKET, TURBO TO EXHAUST MANIFOLD
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO6-RDE
DESTINATION PACKAGE(OTHER&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO0, WITHOUT(ON BOARD DIAGNOSIS)
17279GASKET, TURBINE OUTLET ELBOW
17293STAY, TURBOCHARGER
17298STAY, COMPRESSOR ELBOW
17568ASTAY, EXHAUST PIPE SUPPORT
17569DSTAY, EXHAUST PIPE SUPPORT, NO.2
DESTINATION PACKAGE(OTHER&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO0, WITHOUT(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO6-RDE
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
*114=*693
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
25621ACOVER
DESTINATION PACKAGE(ERP)-UKRAINE SPEC&ENGINE-1GD-FTV
9010508359
main90105-08359
9012608052
main90126-08052
9012610033
main90126-10033
9017910070
main90179-10070
9017910167
main90179-10167
9155180820
main91551-80820
9167180616
main91671-80616
9167180825
main91671-80825
9167281025
main91672-81025
9212280855
main92122-80855
9415180600
main94151-80600
9415180800
main94151-80800
9418800841
main94188-00841
39 parts on this diagram · 7 diagrams in section
