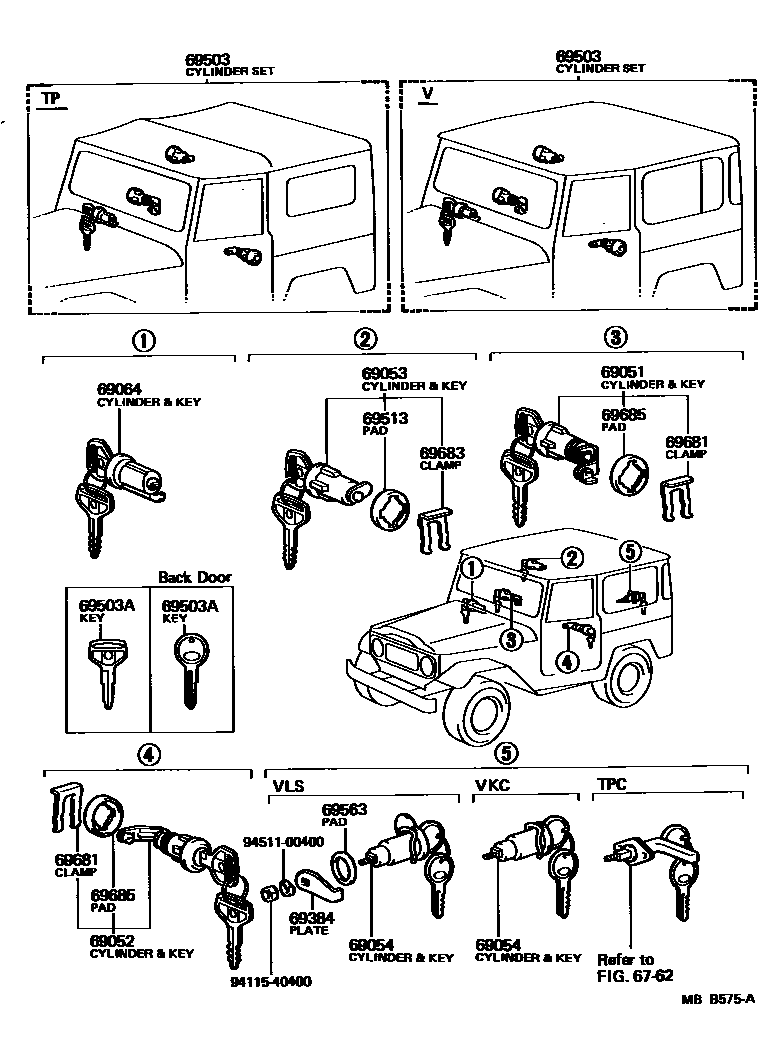

LOCK CYLINDER SET

0001 1 0002 1 0003 1

6762

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-69015iBJ4#,FJ4#,HJ47198008-198604

STEEL DOOR

main69051-90800iBJ42,45,46,FJ40,45..EUR198210-198410

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-69015iBJ40,42,43,45,FJ4#,HJ47..ARL,GEN198008-198604

STEEL DOOR

sub69052-90800

main69052-90800iBJ42,45,46,FJ40,45..EUR198210-198410

69053CYLINDER & KEY SET, FUEL INLET LOCK

main69058-90300iBJ4#,FJ4#,HJ47..TP,V198008-198510

sub69058-89113

main69058-90800iBJ42,45,46,FJ40,45..(TP,V)..EUR198210-198410

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69510-60010iBJ40,42,45,FJ40,45,HJ47..VKC198008-198510

main69540-60011iBJ40,42,FJ40..VLS198008-198510

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-60011iBJ40,42,43,45,HJ47..GEN198008-198506

W/STEERING LOCK

main69057-90800iBJ42,45,46,FJ40,45..EUR198210-198410

main69064-60021iFJ4#..GEN198008-198604

W/O STEERING LOCK

main69064-60041iBJ4#,HJ47..GEN198008-198506

W/O STEERING LOCK

main69064-60061iFJ4#198008-198604

W/STEERING LOCK

sub69057-90800

69384PLATE, BACK DOOR LOCK

main69384-90300iBJ40,42,FJ40..VLS198008-198510

69503CYLINDER SET, LOCK

main69005-69047iFJ45..PIC198008-198604

W/O STEERING LOCK

main69005-69067iBJ45,HJ47..PIC..GEN198008-198506

W/O STEERING LOCK

main69005-69076iHJ47..PIC..ARL198210-198410

W/O FUEL LOCK

main69005-69076iFJ45..PIC..(ARL,GEN)198008-198604

W/STEERING LOCK

main69005-90300iBJ45,HJ47..PIC..GEN198008-198506

W/STEERING LOCK

main69005-90301iFJ45..PIC198008-198604

W/O STEERING LOCK,W/FUEL LOCK

main69005-90302iBJ45,HJ47..PIC..GEN198008-198506

W/O STEERING LOCK,W/FUEL LOCK

main69005-90303iFJ45..PIC198008-198604

W/STEELING & FUEL LOCK

main69005-90304iBJ45,HJ47..PIC198008-198506

W/STEELING & FUEL LOCK

main69005-90313iFJ40,43..TP..GEN198008-198510

CANVAS DOOR,W/O STEERING LOCK

main69005-90314iFJ40,43..TP..GEN198008-198510

CANVAS DOOR,W/STEERING LOCK

main69005-90315iFJ40..RB;FJ45..VKC..ARL198008-198510

STEEL DOOR,W/O STEERING LOCK

main69005-90315iFJ40..RB;FJ45..VKC..ARL198210-198510

W/O STEERING LOCK

main69005-90316iBJ42,FJ40,45,HJ47..(TPS,VKC)..ARL198210-198410

W/STEERING LOCK

main69005-90316iFJ4#..(TP,V)..GEN198008-198510

STEEL DOOR,W/STEERING LOCK

main69005-90317iBJ40,42,43,46..TPC..GEN198008-198410

CANVAS DOOR,W/O STEERING LOCK

main69005-90318iBJ40,42,43,46..TPC..GEN198008-198410

CANVAS DOOR,W/STEERING LOCK

main69005-90319iBJ4#,HJ47..(TP,V)..GEN198008-198410

STEEL DOOR,W/O STEERING LOCK

main69005-90320iBJ40,42,43,45,HJ47..(TP,V)..GEN198008-198410

STEEL DOOR,W/STEELING LOCK

main69005-90800iBJ42,45,46,FJ40,45..(TP,V)..EUR198210-198410

main69005-90801iBJ45,FJ45..PIC..EUR198210-198410

W/O FUEL LOCK

main69005-90802iFJ45..PIC..EUR198210-198410

W/FUEL LOCK

main69005-90804iHJ47..PIC..ARL198210-198410

W/FUEL LOCK

main69005-90805iBJ45..PIC..EUR198210-198410

W/FUEL LOCK

69503AKEY, BLANK

main90999-00006-01iBJ40,42,45,FJ40,45,HJ47..TPC,VKC,VLS198008-198510

BACK DOOR,NO.1,BLACK

sub90999-00011

main90999-00006-02iBJ40,42,45,FJ40,45,HJ47..TPC,VKC,VLS198008-198510

BACK DOOR,NO.2,RED/MAROON

sub90999-00011

main90999-00006-03iBJ40,42,45,FJ40,45,HJ47..TPC,VKC,VLS198008-198510

BACK DOOR,NO.3,GRAY

sub90999-00011

main90999-00006-04iBJ40,42,45,FJ40,45,HJ47..TPC,VKC,VLS198008-198510

BACK DOOR,NO.4,BLUE

sub90999-00011

main90999-00006-05iBJ40,42,45,FJ40,45,HJ47..TPC,VKC,VLS198008-198510

BACK DOOR,NO.5,BEIGE

sub90999-00011

main90999-00006-06iBJ40,42,45,FJ40,45,HJ47..TPC,VKC,VLS198008-198510

BACK DOOR,NO.6,BROWN

sub90999-00011

main90999-00066iBJ4#,FJ4#,HJ47198008-198604

MASTER KEY

sub90999-00085

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69685-95400iBJ4#,FJ4#,HJ47..TP,V198008-198510

69563PAD, BACK DOOR LOCK CYLINDER

main69563-90300iBJ40,42,45,FJ40,45,HJ47..V198008-198510

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iBJ4#,FJ4#,HJ47198008-198604

69683CLAMP, FUEL LOCK CYLINDER

main69681-20040iBJ4#,FJ4#,HJ47..TP,V198008-198510

69685PAD, LOCK CYLINDER

main69685-12010iBJ4#,FJ4#,HJ47198008-198604

9411540400

main94115-40400

9451100400

main94511-00400

16 parts on this diagram · 3 diagrams in section
