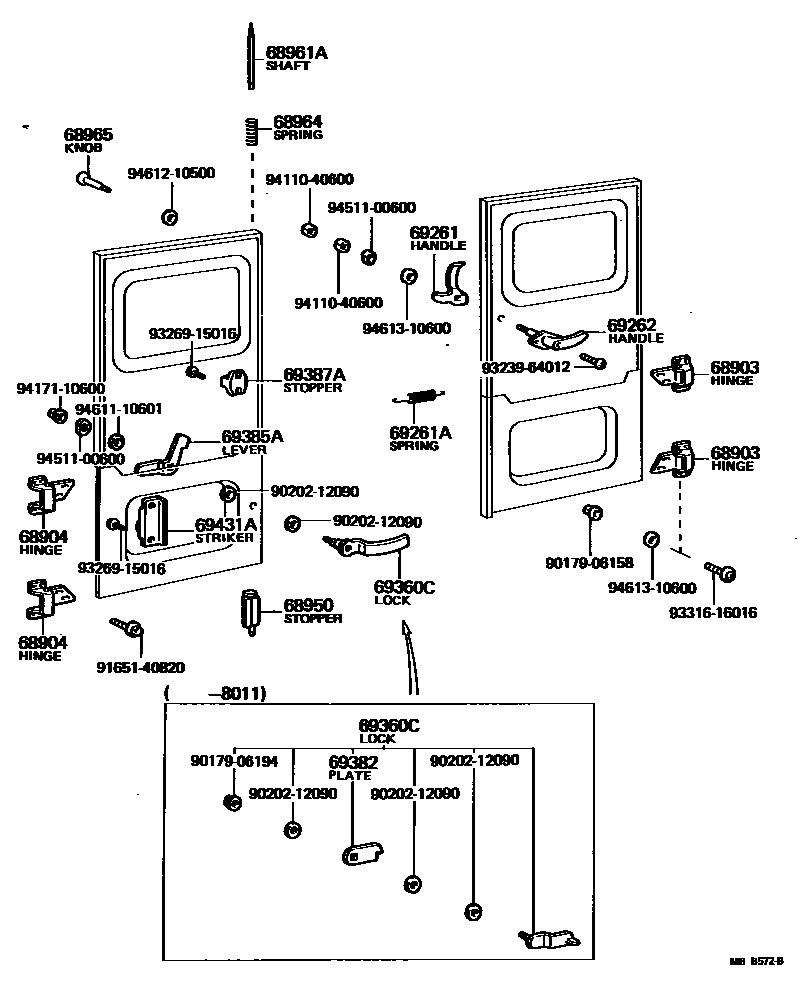

BACK DOOR LOCK & HINGE

0001 1 0002 1 0003 1 0004 1

68903HINGE, REAR SWING GATE, RH

main68095-90301iFJ45..TPC198008-198410

LWR

main68905-90304iBJ40,42,43,46,FJ4#..TPC,VLS198008-198510

UPR

main68906-90303iBJ40,42,43,46,FJ40,43..TPC,VLS198008-198510

LWR

68904HINGE, REAR SWING GATE, LH

main68096-90301iFJ45..TPC198008-198410

LWR

main68905-90304iBJ40,42,43,46,FJ40,43..TPC,VLS198008-198510

LWR

main68906-90303iBJ40,42,43,46,FJ4#..TPC,VLS198008-198510

UPR

68950STOPPER ASSY, REAR SWING GATE LOCK

main68950-90305iBJ40,42,43,46,FJ4#..TPC,VLS198008-198510

68961ASHAFT, REAR SWING DOOR OPEN STOPPER

main68961-90315iBJ40,42,43,46,FJ4#..TPC198008-198510

68964SPRING, REAR SWING DOOR OPEN STOPPER

main90501-12037iBJ40,42,43,46,FJ4#..TPC198008-198510

68965KNOB, REAR SWING DOOR OPEN STOPPER

main68962-90300iBJ40,42,43,46,FJ4#..TPC198008-198510

69261HANDLE, REAR SWING DOOR INSIDE

main69261-90323iBJ40,42,43,46,FJ4#..TPC..GEN198008-198510

main69261-90327iFJ40..LHD..TPC..(3F,4F);BJ40,42,43,46,FJ43,45..LHD..TPC198008-198510

POSITION OF LICENSE PLATE LH

69261ASPRING, TENSION(FOR REAR SWING DOOR HANDLE)

main90506-18324iBJ40,42,43,46,FJ4#..TPC198008-198510

69262HANDLE, REAR SWING DOOR OUTSIDE

main69201-90327iBJ40,42,43,46,FJ4#..TPC198008-198510

69360CLOCK ASSY, REAR SWING GATE

main69029-90800iBJ40,42,43,46,FJ4#..TPC198011-198510

main69350-60010iBJ40,42,FJ40..LHD..VLS198008-198510

POSITION OF LICENSE PLATE LH

main69360-60010iBJ40,42,FJ40..VLS..(ARL,GEN)198008-198510

main69380-90316iBJ40,42,43,46,FJ4#..TPC198008-198011

sub69308-90315

sub69382-90315

sub90202-12090

69382PLATE, REAR SWING GATE LOCK

main69382-90315iBJ40,42,43,46,FJ4#..TPC198008-198011

69385ALEVER, REAR SWING GATE LOCK

main69385-90800iBJ40,42,43,46,FJ4#..TPC..GEN198011-198510

main69385-90801iFJ40..LHD..TPC..(3F,4F);BJ40,42,43,46,FJ43,45..LHD..TPC198011-198510

POSITION OF LICENSE PLATE LH

69387ASTOPPER, REAR SWING GATE LOCK LEVER

main69387-90800iBJ40,42,43,46,FJ4#..TPC..GEN198011-198510

69431ASTRIKER, REAR SWING GATE LOCK

main69431-90800iBJ40,42,43,46,FJ4#..TPC198011-198510

9017906158

main90179-06158

9017906194

main90179-06194

9020212090

main90202-12090

9165140820

main91651-40820

9323964012

main93239-64012

9326915016

main93269-15016

9331616016

main93316-16016

9411040600

main94110-40600

9417110600

main94171-10600

9451100600

main94511-00600

9461110601

main94611-10601

9461210500

main94612-10500

9461310600

main94613-10600

27 parts on this diagram · 4 diagrams in section
