OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

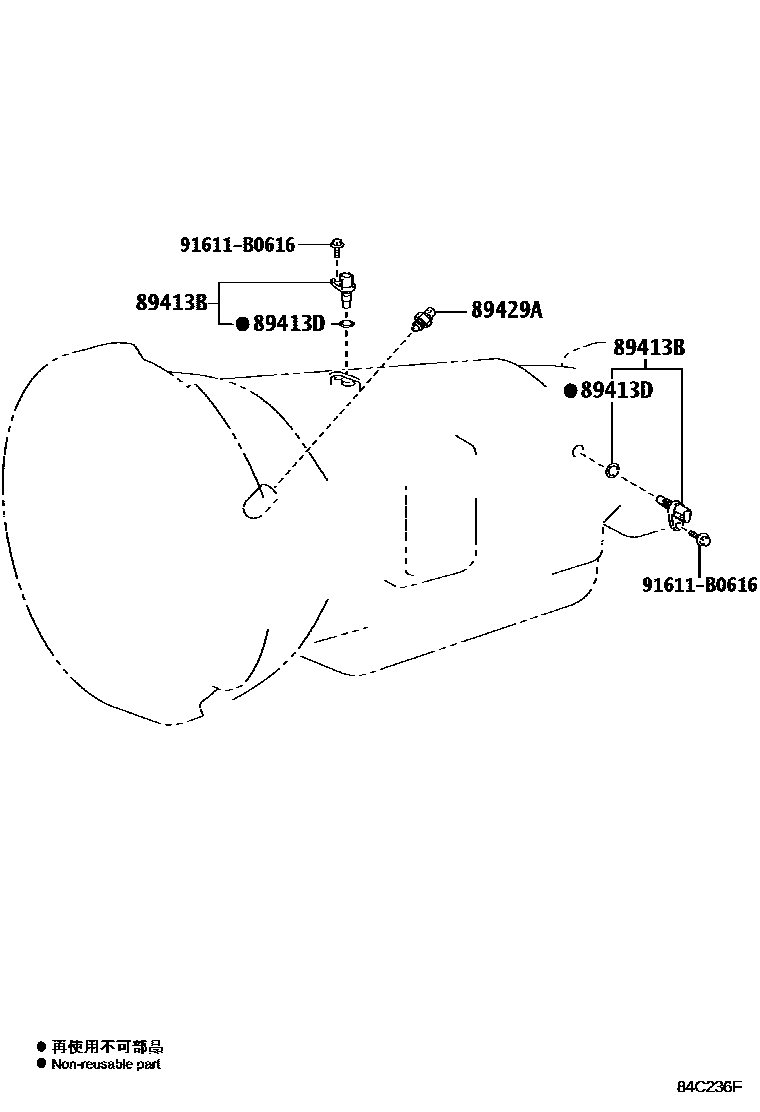

Parts diagram

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-37010×2i201107-201505

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2i201107-201505

89429ASENSOR, TEMPERATURE

main89429-37010i201107-201505

91611B0616

main91611-B0616

4 parts on this diagram · 1 diagram in section
