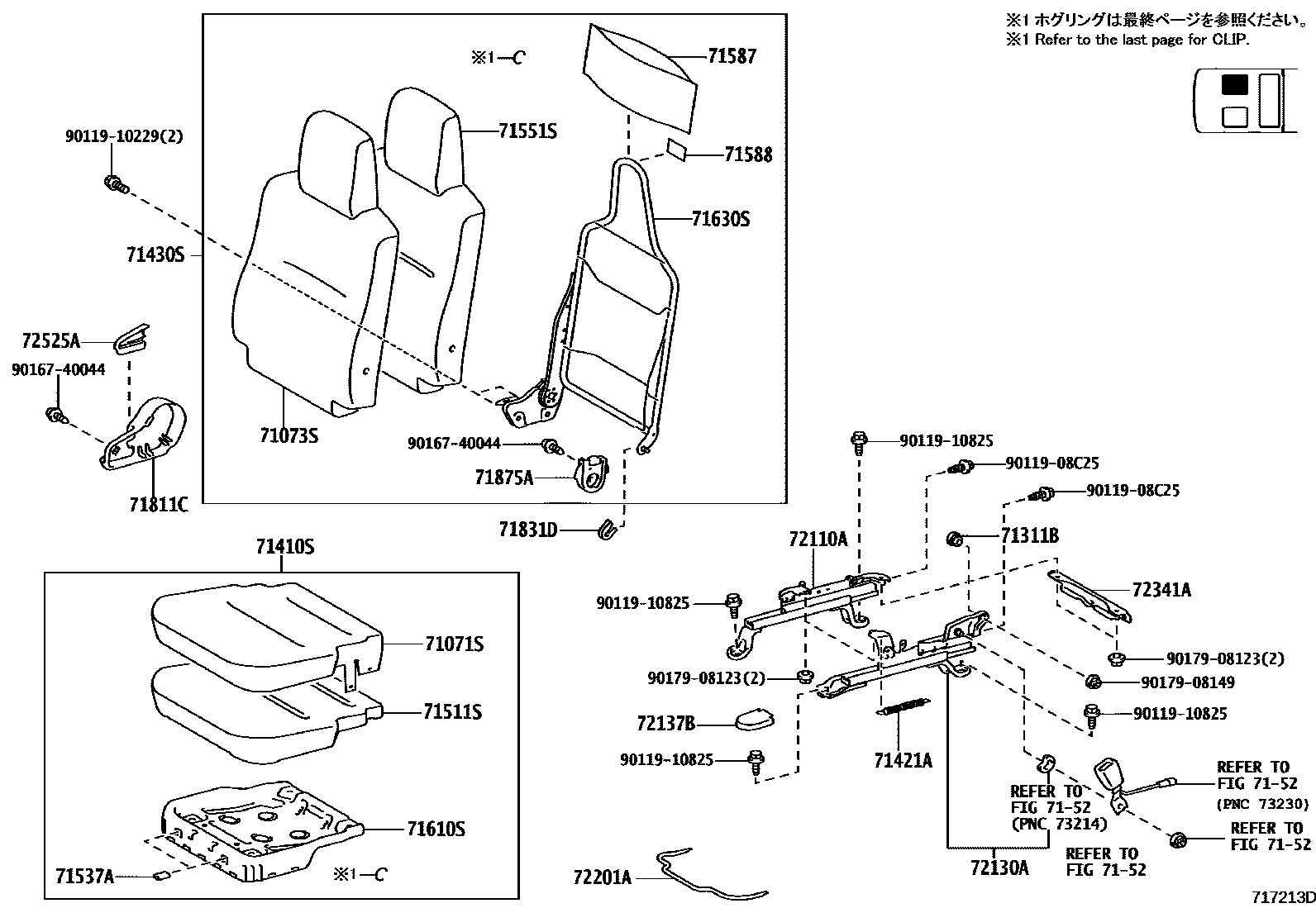

SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1DRIVER SEAT 0003 1DRIVER SEAT-W(SEAT SUSPENSION0004 1DRIVER SEAT-W(SEAT SUSPENSION0006 1PASSENGER SEAT 0007 1PASSENGER SEAT(SEPARATE TYPE)0008 1PASSENGER SEAT 0009 1PASSENGER SEAT(SEPARATE TYPE)0010 1PASSENGER SEAT(SEPARATE TYPE)0012 1REAR SEAT 0013 1CLIP

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-37A20-B0iWU710..RHD201107-202005

GRAY,TRIM1#

main71071-37A60-B0iXZU710..GCC..IV3201306-201505

GRAY,TRIM1#

sub71071-37B70

main71071-37A80-B0iWU710..GCC..IV3;WU710..65T..GCC..CBU;WU720,XZU710,720..(6F,6FC)..GCC201306-201512

GRAY,TRIM1#

main71071-37A90-B0iWU710,720..LHD..GEN201107-201512

GRAY,TRIM1#

sub71071-37B50

main71071-37B00-B0iXZU710..IV3201108-201306

GRAY,TRIM1#

main71071-37B40-B0iWU710,720,XZU710,720..SCB..MTM..GCC201505-202005

GRAY,TRIM1#

main71071-37B50-B0iWU710,720..LHD..GEN201512-202005

GRAY,TRIM1#

main71071-37B70-B0iXZU710..DCB201505-202005

GRAY,TRIM1#

main71071-37D90-B0iXZU710,720..GEN201911

GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-37A90-B0iXZU710..DCB201306-202005

GRAY,TRIM1#

main71073-37B00-B0iXZU710..IV3201107-202005

GRAY,TRIM1#

main71073-37C10-B0iXZU710,720,730..EUR201306-202005

GRAY,TRIM1#

main71073-37C20-B0iWU710,720..LHD..GEN201107-202005

GRAY,TRIM1#

main71073-37E30-B0iXZU710,720..GEN201911

GRAY,TRIM1#

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90386-12053iXZU710..CBU201107-202005

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-37B60-B0iWU710..RHD201107-202005

***,GRAY,TRIM1#

main71410-37C20-B0iXZU710..IV3201108-201306

***,GRAY,TRIM1#

sub71410-37C21

main71410-37C40-B0iWU700,710,720,XZU710,720,730..SCB..(EUR,GCC)201306-201403

***,GRAY,TRIM1#

sub71410-37C41

main71410-37C41-B0iWU700,720..65T;WU710..85T..CBU;XZU710,720,730..EUR201404-201512

***,GRAY,TRIM1#

sub71410-37D90

main71410-37C50-B0iWU700,710,720,XZU710,720..SCB..GCC201107-201403

***,GRAY,TRIM1#

sub71410-37C51

main71410-37C51-B0iWU710,720..LHD..GEN201404-201511

***,GRAY,TRIM1#

sub71410-37E00

main71410-37D90-B0iWU710,720,XZU710,720..SCB..MTM..GCC201505-202005

***,GRAY,TRIM1#

main71410-37E00-B0iWU710,720..LHD..GEN201512-202005

***,GRAY,TRIM1#

main71410-37E30-B0iXZU710..DCB201505-202005

***,GRAY,TRIM1#

main71410-37J10-B0iXZU710,720..GEN201911

***,GRAY,TRIM1#

main71410-3V140-B0iXZU710..GCC..IV3201306-201403

***,GRAY,TRIM1#

sub71410-3V141

main71410-3V141-B0iXZU710..GCC..IV3201404-201505

***,GRAY,TRIM1#

sub71410-37E30

71421ASPRING, FRONT SEAT CUSHION

main71421-37040iXZU710,720,730..EUR201107-202005

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-37B00-B0iWU710..RHD201107-202005

***,GRAY,TRIM1#

main71430-37C00-B0iXZU710..DCB201306-202005

***,GRAY,TRIM1#

main71430-37C10-B0iXZU710..IV3201108-201306

***,GRAY,TRIM1#

main71430-37C50-B0iWU700,710,720,XZU710,720..SCB..MTM..GCC201306-202005

***,GRAY,TRIM1#

main71430-37C60-B0iWU700,710,720,XZU710,720..SCB..GCC201107-202005

***,GRAY,TRIM1#

main71430-37G20-B0iXZU710,720..GEN201911

***,GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-37060iXZU710..GCC..IV3201108-201403

sub71501-37061

main71501-37061iXZU710..GCC..IV3201404-201505

sub71501-37090

main71501-37070iWU700,710,720,XZU710,720,730..LHD..SCB201107-201403

sub71501-37071

main71501-37071iWU710..GCC..IV3;WU710..65T..GCC..CBU;WU720,XZU710,720..(6F,6FC)..GCC201404-201512

sub71501-37080

main71501-37080iWU710,720,XZU710,720..SCB..MTM..GCC201505-202005

main71501-37090iXZU710..DCB201505-202005

main71511-37150iWU710..RHD201107-202005

7152

71537APROTECTOR, FRONT SEAT CUSHION

main71537-26010iXZU710..CBU201107-202005

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-37200iWU710..RHD;XZU710..DCB201107-202005

main71551-37260iXZU710..CBU201107-202005

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-37020iWU700,710,720,XZU710..SCB201107-201209

sub71587-37021

main71587-37021iXZU710,720,730..EUR201210-202106

main71587-37022iXZU710,720..GEN202107

71588PROTECTOR, FRONT SEATBACK EDGE, NO.2

main71588-37010iXZU710,720,730..EUR201107-202005

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-37070iWU710..RHD201107-202005

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71013-37150iXZU710..CBU201107-202005

main71013-37180iXZU710,720..GEN201911

main71630-37160iWU710..RHD;XZU710..DCB201107-202005

71811CCOVER, RECLINING ADJUSTER, RH

main71811-37021-B1iWU710..RHD201107-201302

GRAY,TRIM1#

sub71811-37022

main71811-37022-B1iXZU710..DCB201208-202005

GRAY,TRIM1#

main71811-37040-B0iXZU710..CBU201107-202005

GRAY,TRIM1#

71831DCOVER, FRONT SEAT HINGE, RH

main71832-37010iWU710..RHD;XZU710..DCB201107-202005

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-37010iWU710..RHD;XZU710..DCB201107-202005

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-37030iWU710..RHD201107-202005

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-37030iWU710..RHD201107-202005

72137BCOVER, SEAT TRACK, RH

main72137-37040-B0iWU710..RHD201107-202005

GRAY,TRIM1#

72201AHANDLE SUB-ASSY, SEAT TRACK RH

main72201-37030iWU710..RHD201107-202005

72341AREINFORCE, FRONT SEAT STAND FRAME

main72341-37010iXZU710..CBU201107-202005

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-37020-B1iWU710..RHD;XZU710..DCB201107-202005

GRAY,TRIM1#

main72525-37030-B0iXZU710..CBU201107-202005

GRAY,TRIM1#

9011908C25

main90119-08C25

9011910229

main90119-10229

9011910825

main90119-10825

9016740044

main90167-40044

9017908123

main90179-08123

9017908149

main90179-08149

29 parts on this diagram · 11 diagrams in section
