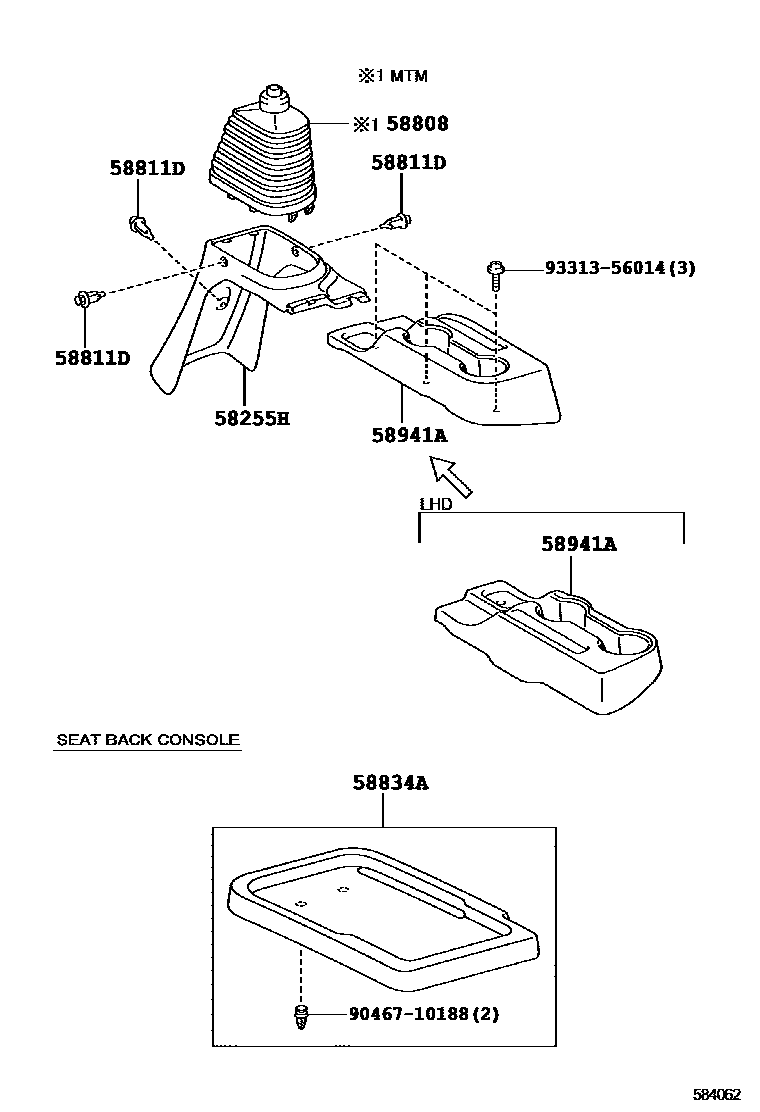

CONSOLE BOX & BRACKET

0001 1 0002 1W(REAR AIR CONDITIONER)

58255HCOVER, SHIFT LEVER BOOT

main58255-37090-B0iWU710..RHD201107-202005

GRAY,TRIM1#

main58255-37100-B0iXZU710..CBU201107-202005

GRAY,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-37030-C0iXZU710,720,730..EUR201107-202005

BLACK,TRIM1#

58811DCLIP(FOR CONSOLE BOX)

main90467-07191-C1iXZU710,720,730..EUR201107-202005

BLACK,TRIM1#

sub90467-07191

58834ACOVER, CONSOLE, LOWER

main58834-37050-B0iXZU710..DCB201108-202005

GRAY,TRIM1#

58941ACOVER, PARKING BRAKE HOLE

main58941-37080-B0iWU710..RHD201107-202005

GRAY,TRIM1#

main58941-37100-B0iXZU710..CBU201107-202005

GRAY,TRIM1#

9046710188

main90467-10188

9331356014

main93313-56014

7 parts on this diagram · 2 diagrams in section
