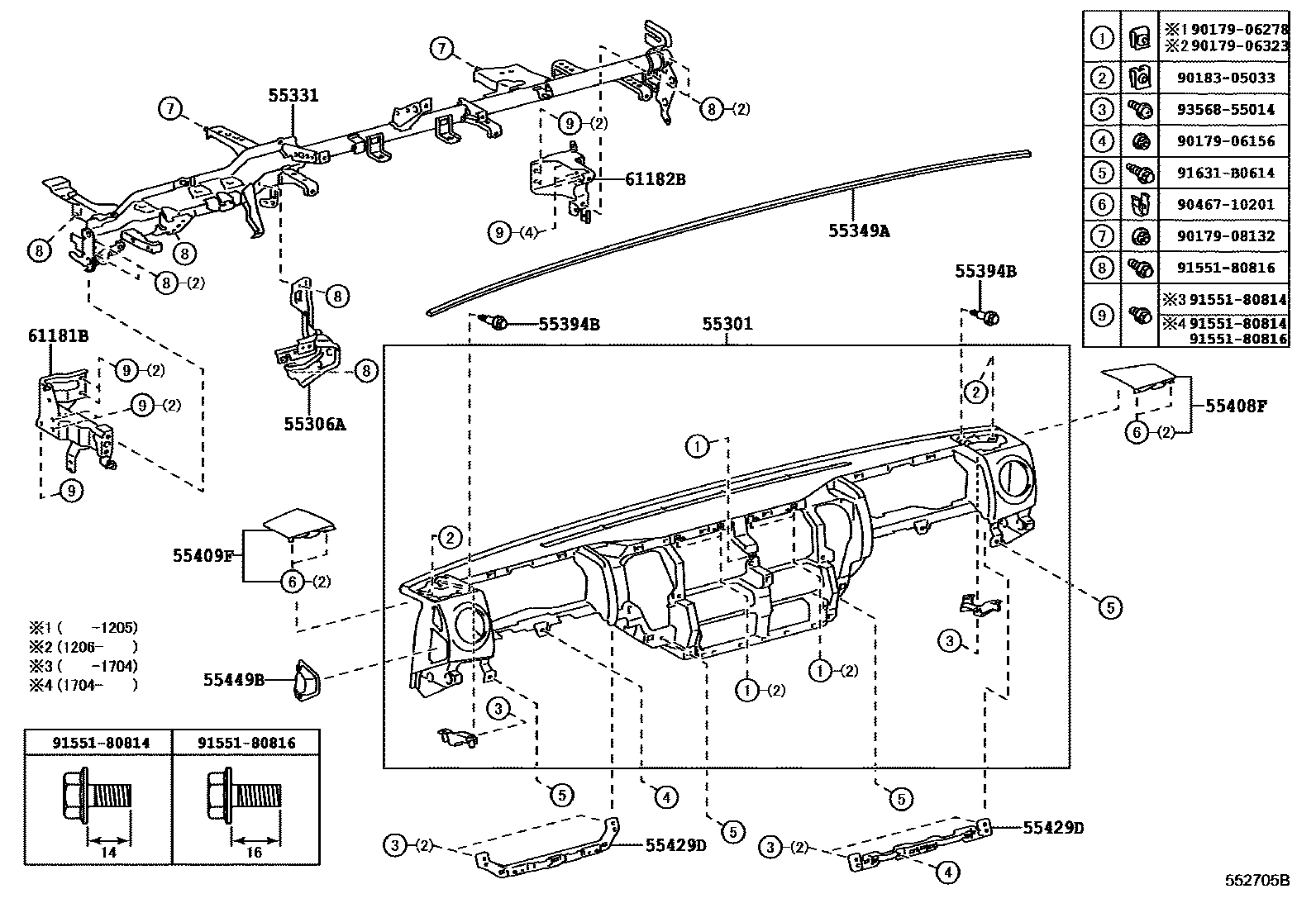

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-37080-C0iWU700,710,720,XZU710,720,730201107-201412

BLACK,TRIM1#

sub55301-37081

main55301-37081iXZU710..CBU201501-201505

main55301-37081-C0iXZU710,720,730..EUR201501-202005

BLACK,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-37080iWU710..RHD201107-201312

sub55306-37081

main55306-37081iWU710..RHD201401-201805

sub55306-37082

main55306-37082iWU710..RHD201806-201911

sub55306-37083

main55306-37083iWU710..RHD201912-202005

sub55306-37084

main55306-37100iWU700,710,720,XZU710,720,730..LHD201107-201312

sub55306-37101

main55306-37101iWU700,710,720..LHD;XZU710,720..MTM..GCC201401-202403

main55306-37102iXZU710,720..GEN202404

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-37192iXZU710..CBU201107-201803

sub55330-37193

main55330-37193iWU710,720..LHD;XZU710,720..MTM..GCC201804-202005

main55330-37201iWU710..RHD201107-201611

sub55330-37202

main55330-37202iWU710..RHD201612-202005

55349ACUSHION, INSTRUMENT PANEL

main55349-37030iWU700,710,720;XZU710,720..MTM..GCC201107-202005

55394BBOLT, INSTRUMENT PANEL

main55394-37010iXZU710,720..GEN201107-202005

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-37010-C0iXZU710,720,730..EUR201107-202005

BLACK,TRIM1#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-37010-C0iXZU710..CBU201107-202005

BLACK,TRIM1#

55429DSTAY, INSTRUMENT CLUSTER FINISH PANEL

main55429-37010iWU700,710,720;XZU710,720..MTM..GCC201107-202005

DRIVER SIDE

main55429-37020iXZU710..CBU201107-202005

PASSENGER SIDE

55449BCOVER, OIL RESERVOIR TANK, LH

main55449-37020-C0iWU700,710,720..LHD;XZU710,720..MTM..GCC201107-202005

BLACK,TRIM1#

61181BBRACKET, INSTRUMENT PANEL SIDE, NO.1 RH

main61035-37090iWU710..RHD201107-202005

main61035-37110iXZU710,720..GEN201107-202005

61182BBRACKET, INSTRUMENT PANEL SIDE, NO.1 LH

main61036-37060iWU710..RHD201107-202005

main61036-37070iXZU710,720,730..EUR201107-202005

9017906156

main90179-06156

9017906278

main90179-06278

9017906323

main90179-06323

9017908132

main90179-08132

9018305033

main90183-05033

9046710201

main90467-10201

9155180814

main91551-80814

9155180816

main91551-80816

91631B0614

main91631-B0614

9356855014

main93568-55014

21 parts on this diagram · 8 diagrams in section
