FRONT AXLE ARM & STEERING KNUCKLE

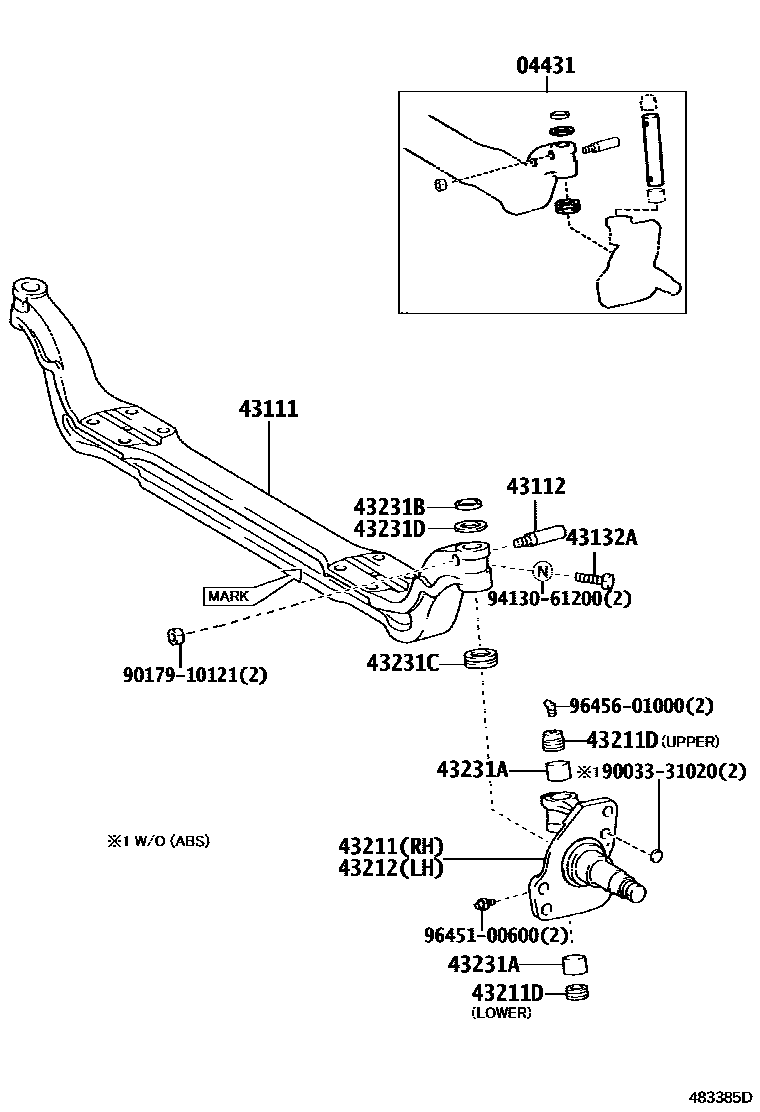

Parts diagram
04431PIN KIT, STEERING KNUCKLE KING
main0443C-37010i201612-202005
main0443C-37020i201107-201612
sub0443C-37010
main0443C-37030i201705-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main0443C-37030i201705-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-750R16-12 RIB
main0443C-37030i201705-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-750R16-12 LUG
main0443C-37030i201705-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main0443C-37030i201705-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main0443C-37030i201705-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-750R16-10 RIB
main0443C-37030i201705-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main0443C-37030i201705-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-750R16-12 RIB
main0443C-37030i201705-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-750R16-12 LUG
main0443C-37030i201705-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main0443C-37030i201705-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main0443C-37030i201705-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-750R16-10 RIB
main0443C-37030i201107-202005
43111I BEAM, FRONT AXLE
main43111-37051i201107-202005
main43111-37080i201107-202005
43112PIN, KING PIN LOCK
main43112-36020i201107-202005
main43112-36030i201107-202005
43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)
main90106-12001i201107-202005
43211KNUCKLE, STEERING, RH
main43201-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 RIB
main43201-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main43201-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 RIB
main43201-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 LUG
main43201-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main43201-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 RIB
main43201-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 LUG
main43201-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main43201-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main43201-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 RIB
main43201-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main43201-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main43201-37061i201911-202412
TIRE & DISC WHEEL-215/75R17.5 124 RIB
main43201-37061i201107-202005
main43201-37062i202412
TIRE & DISC WHEEL-215/75R17.5 124 RIB
main43201-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-215/75R17.5 126 RIB
main43201-37100i201306-202005
main43201-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-750R16-10 RIB
main43201-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-750R16-10 F:RIB R:RIB-LUG
main43201-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-750R16-12 RIB
main43201-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-750R16-12 LUG
main43201-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-750R16-12 F:RIB R:RIB-LUG
main43201-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main43201-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB
main43201-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main43201-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB
main43201-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG
main43201-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main43201-37110i201505-202005
main43201-37120i201107-202005
43211DPLUG (FOR STEERING KNUCKLE)
main90345-33003i201107-202005
LOWER
main90345-33004i201107-202005
UPPER
43212KNUCKLE, STEERING, LH
main43202-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main43202-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 RIB
main43202-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main43202-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main43202-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 RIB
main43202-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main43202-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 RIB
main43202-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 LUG
main43202-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main43202-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 RIB
main43202-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 LUG
main43202-37061i201107-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main43202-37061i201107-202005
main43202-37061i201911-202412
TIRE & DISC WHEEL-215/75R17.5 124 RIB
main43202-37062i202412
TIRE & DISC WHEEL-215/75R17.5 124 RIB
main43202-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-215/75R17.5 126 RIB
main43202-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-750R16-10 RIB
main43202-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-750R16-10 F:RIB R:RIB-LUG
main43202-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-750R16-12 RIB
main43202-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-750R16-12 LUG
main43202-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-750R16-12 F:RIB R:RIB-LUG
main43202-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main43202-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB
main43202-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main43202-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB
main43202-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG
main43202-37100i201505-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main43202-37100i201306-202005
main43202-37110i201505-202005
main43202-37120i201107-202005
43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)
main90384-35013i201107-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB,UPPER
main90384-35013i201107-202409
UPPER
main90384-35013i201107-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB,UPPER
main90384-35013i201107-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 RIB,UPPER
main90384-35013i201107-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG,UPPER
main90384-35013i201107-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 RIB,UPPER
main90384-35013i201107-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG,UPPER
main90384-35013i201107-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 RIB,UPPER
main90384-35013i201107-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 LUG,UPPER
main90384-35013i201107-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG,UPPER
main90384-35013i201107-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 RIB,UPPER
main90384-35013i201107-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 LUG,UPPER
main90384-35013i201107-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG,UPPER
main90384-35014i201107-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 RIB,LOWER
main90384-35014i201107-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG,LOWER
main90384-35014i201107-202409
LOWER
main90384-35014i201107-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB,LOWER
main90384-35014i201107-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG,LOWER
main90384-35014i201107-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB,LOWER
main90384-35014i201107-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 RIB,LOWER
main90384-35014i201107-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG,LOWER
main90384-35014i201107-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 RIB,LOWER
main90384-35014i201107-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 LUG,LOWER
main90384-35014i201107-202005
FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG,LOWER
main90384-35014i201107-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 RIB,LOWER
main90384-35014i201107-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 LUG,LOWER
main90384-35014i202409
UPPER & LOWER
main90999-73086i201706-202005
FRONT WHEEL BRAKE-320(83) DRUM&ABS-WITHOUT
main90999-73086i201312-202005
43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)
main90312-28003i201107-202005
43231CBEARING (FOR STEERING KNUCKLE KING PIN)
main90367-28001i201107-202005
main90367-35001i201107-202005
43231DSHIM (FOR KING PIN)
main90032-09022i201107-202005
T=1.9
main90032-09023i201107-202005
T=2.0
main90032-09024i201107-202005
T=2.1
main90032-09025i201107-202005
T=2.2
main90032-09026i201107-202005
T=2.3
main90032-09027i201107-202005
T=2.4
main90032-09028i201107-202005
T=2.5
main90032-09029i201107-202005
T=2.6
main90564-28001i201107-202005
T=1.9
main90564-28002i201107-202005
T=2.0
main90564-28003i201107-202005
T=2.1
main90564-28004i201107-202005
T=2.2
main90564-28005i201107-202005
T=2.3
main90564-28006i201107-202005
T=2.4
main90564-28007i201107-202005
T=1.7
main90564-28008i201107-202005
T=1.8
9003331020
main90033-31020
9017910121
main90179-10121
9413061200
main94130-61200
9645100600
main96451-00600
9645601000
main96456-01000

16 parts on this diagram · 2 diagrams in section
