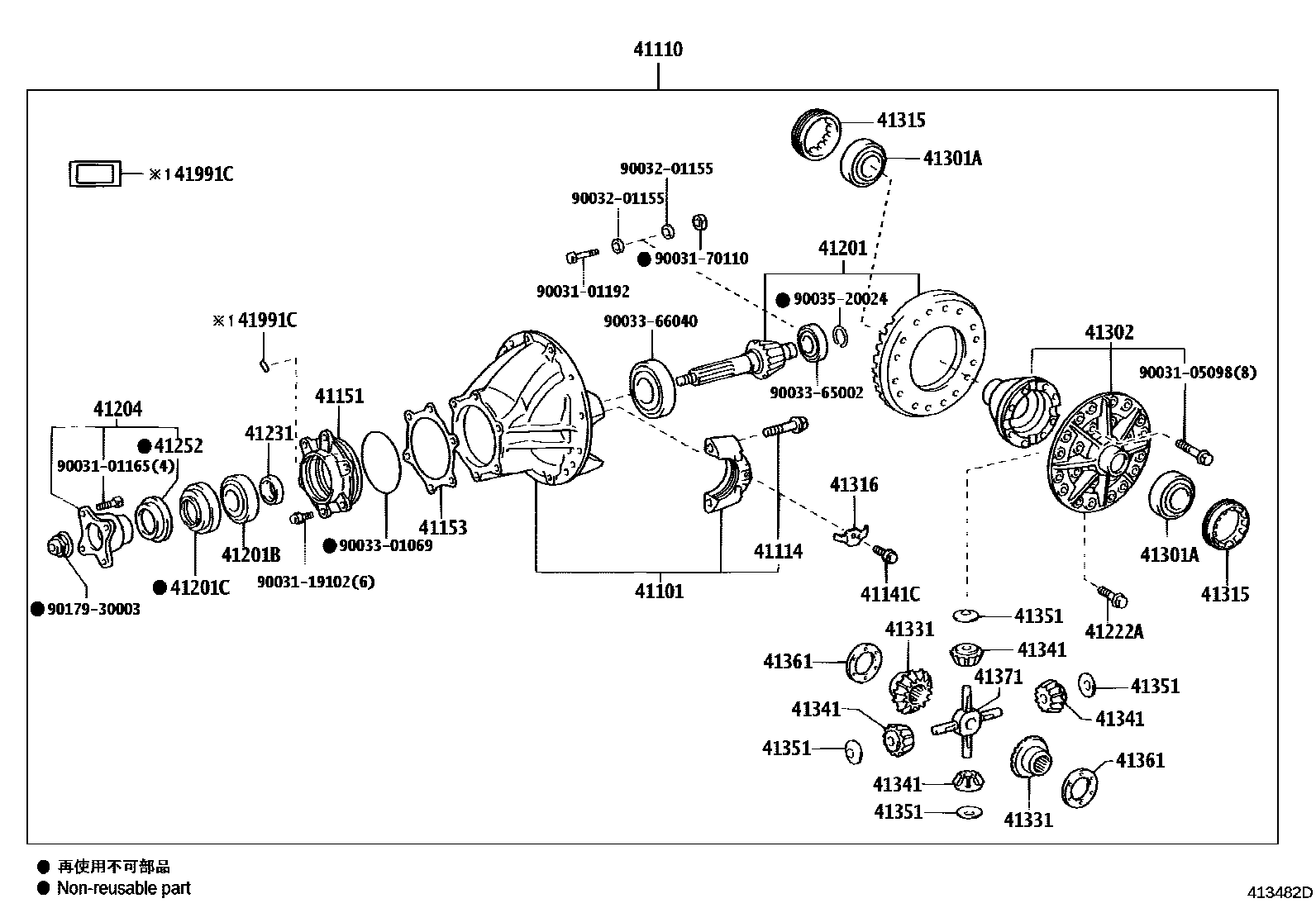

REAR AXLE HOUSING & DIFFERENTIAL

0001 112 INCHES DIFFERENTIAL 0002 113 INCHES DIFFERENTIAL 0003 112 INCHES DIFFERENTIAL 0004 113 INCHES DIFFERENTIAL

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-37040iWU710,720,XZU710,720..85T201107-202005

main41101-37061iXZU710..CBU201107-202005

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-37270iWU710,720,XZU710,720..85T201107-202005

*FGR=41:7=5.857

main41110-37350iXZU710,720,730..EUR201306-201512

*FGR=39:8=4.875

main41110-37360iXZU710,720..MTM..(65T,75T)..GCC201108-202005

*FGR=41:8=5.125

main41110-37370iXZU710,720..GEN201107-201505

*FGR=43:8=5.375

main41110-37380iWU700,710,720..65T..GCC201107-202005

*FGR=39:7=5.571

main41110-37390iWU700,710,720..65T..GCC201107-202005

*FGR=35:6=5.833,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.833

main41110-37390iWU720..75T;WU710..LHD..GEN;WU710..RHD..65T201107-202005

*FGR=35:6=5.833

main41110-37400iWU710..RHD..75T201107-202005

*FGR=37:6=6.167,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =6.167

main41110-37400iWU720..75T;WU710..LHD..GEN;WU710..RHD..65T201107-202005

*FGR=37:6=6.167

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90031-05043iWU700,710,720,XZU710201107-201108

subSZ105-16030

mainSZ10516030iXZU710,720,730..EUR201108-202005

41141CBOLT(FOR REAR DIFFERENTIAL SIDE BEARING RETAINER)

main90031-19101iWU700,710,720;XZU710,720..MTM..GCC201107-202108

mainSH68100816iXZU710,720..GEN202108

41151CAGE, DIFFERENTIAL DRIVE PINION BEARING

main41151-37020iWU710,720,XZU710,720..85T201107-202005

main41151-37031iXZU710,720,730..EUR201107-202005

41153SHIM, DIFFERENTIAL DRIVE PINION CAGE

main41153-37050iWU710,720,XZU710,720..85T201107-202005

T=0.30

main41153-37060iWU710,720,XZU710,720..85T201107-202005

T=0.40

main41153-37070iWU710,720,XZU710,720..85T201107-202005

T=0.45

main41153-37080iWU710,720,XZU710,720..85T201107-202005

T=0.50

main41153-37090iXZU710,720,730..EUR201107-202005

T=0.30

main41153-37100iXZU710,720,730..EUR201107-202005

T=0.40

main41153-37110iXZU710..CBU201107-202005

T=0.45

main41153-37120iXZU710,720,730..EUR201107-202005

T=0.50

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-37170iWU710,720,XZU710,720..85T201107-202005

main41201-37220iXZU710,720,730..EUR201306-201503

*FGR=39:8=4.875

sub41201-37221

main41201-37221iXZU710,720,730..EUR201504-201512

*FGR=39:8=4.875

main41201-37230iXZU710,720..GCC..IV3201108-201503

*FGR=41:8=5.125

sub41201-37231

main41201-37231iXZU710,720..MTM..(65T,75T)..GCC201504-202005

*FGR=41:8=5.125

main41201-37240iXZU710..CBU201107-201503

*FGR=43:8=5.375

sub41201-37241

main41201-37241iXZU710..CBU201504-201505

*FGR=43:8=5.375

main41201-37250iXZU710..CBU201107-201503

*FGR=39:7=5.571,TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG

sub41201-37251

main41201-37250iWU700,710,720..65T..GCC201107-201503

*FGR=39:7=5.571

sub41201-37251

main41201-37250iWU700,710,720..65T..GCC201107-201503

*FGR=39:7=5.571,TIRE & DISK WHEEL-750R16-10 RIB

sub41201-37251

main41201-37250iWU700,710,720..65T..GCC201107-201503

*FGR=39:7=5.571,TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG

sub41201-37251

main41201-37250iWU700,710,720..65T..GCC201107-201503

*FGR=39:7=5.571,TIRE & DISK WHEEL-750R16-12 RIB

sub41201-37251

main41201-37250iWU700,710,720..65T..GCC201107-201503

*FGR=39:7=5.571,TIRE & DISK WHEEL-750R16-12 LUG

sub41201-37251

main41201-37251iWU700,710,720..65T..GCC201504-202005

*FGR=39:7=5.571,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571

main41201-37251iXZU710..5F..GCC201504-202005

*FGR=39:7=5.571

main41201-37260iWU700,710,720..65T..GCC201107-201503

*FGR=35:6=5.833,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.833

sub41201-37261

main41201-37260iWU700,710,720..65T..GCC201107-201503

*FGR=35:6=5.833

sub41201-37261

main41201-37261iWU720..75T;WU710..LHD..GEN;WU710..RHD..65T201504-202005

*FGR=35:6=5.833

main41201-37261iWU700,710,720..65T..GCC201504-202005

*FGR=35:6=5.833,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.833

main41201-37270iWU720..75T;WU710..LHD..GEN;WU710..RHD..65T201107-201503

*FGR=37:6=6.166

sub41201-37271

main41201-37270iWU720..75T;WU710..LHD..GEN;WU710..RHD..65T201107-201503

*FGR=37:6=6.166,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =6.167

sub41201-37271

main41201-37271iWU710..RHD..75T201504-202005

*FGR=37:6=6.166,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =6.167

main41201-37271iWU720..75T;WU710..LHD..GEN;WU710..RHD..65T201504-202005

*FGR=37:6=6.166

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90033-66038iWU700,710,720,XZU710201107-201108

subSZ366-45013

mainSZ36645013iXZU710..CBU201108-202005

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90033-11039iXZU710,720,730..EUR201107-202005

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-37060iWU710,720,XZU710,720..85T201107-202005

main41204-37080iXZU710,720,730..EUR201107-202005

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90031-01203iXZU710,720..GEN201107-202005

main90031-09055iWU710,720,XZU710,720..85T201107-202005

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-37220iWU710,720,XZU710,720..85T201107-202005

T=13.900

main41231-37230iWU710,720,XZU710,720..85T201107-202005

T=13.925

main41231-37240iWU710,720,XZU710,720..85T201107-202005

T=13.950

main41231-37250iWU710,720,XZU710,720..85T201107-202005

T=13.975

main41231-37260iWU710,720,XZU710,720..85T201107-202005

T=14.000

main41231-37270iWU710,720,XZU710,720..85T201107-202005

T=14.025

main41231-37280iWU710,720,XZU710,720..85T201107-202005

T=14.050

main41231-37290iWU710,720,XZU710,720..85T201107-202005

T=14.075

main41231-37300iWU710,720,XZU710,720..85T201107-202005

T=14.100

main41231-37310iWU710,720,XZU710,720..85T201107-202005

T=14.125

main41231-37320iWU710,720,XZU710,720..85T201107-202005

T=14.150

main41231-37330iWU710,720,XZU710,720..85T201107-202005

T=14.175

main41231-37340iWU710,720,XZU710,720..85T201107-202005

T=14.200

main41231-37350iWU710,720,XZU710,720..85T201107-202005

T=14.225

main41231-37360iWU710,720,XZU710,720..85T201107-202005

T=14.250

main41231-37370iWU710,720,XZU710,720..85T201107-202005

T=14.275

main41231-37380iWU710,720,XZU710,720..85T201107-202005

T=14.300

main41231-37390iWU710,720,XZU710,720..85T201107-202005

T=14.325

main41231-37400iWU710,720,XZU710,720..85T201107-202005

T=14.350

main41231-37410iWU710,720,XZU710,720..85T201107-202005

T=14.375

main41231-37420iXZU710..CBU201107-202005

T=14.400

main41231-37430iXZU710,720..GEN201107-202005

T=14.425

main41231-37440iXZU710,720,730..EUR201107-202005

T=14.450

main41231-37450iXZU710,720..GEN201107-202005

T=14.475

main41231-37460iXZU710,720,730..EUR201107-202005

T=14.500

main41231-37470iXZU710,720,730..EUR201107-202005

T=14.525

main41231-37480iXZU710,720,730..EUR201107-202005

T=14.550

main41231-37490iXZU710..CBU201107-202005

T=14.575

main41231-37500iXZU710,720..GEN201107-202005

T=14.600

main41231-37510iXZU710..CBU201107-202005

T=14.625

main41231-37520iXZU710,720..GEN201107-202005

T=14.650

main41231-37530iXZU710..CBU201107-202005

T=14.675

main41231-37540iXZU710..CBU201107-202005

T=14.700

main41231-37550iXZU710,720..GEN201107-202005

T=14.725

main41231-37560iWU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC201107-202005

T=14.750

main41231-37570iXZU710,720..GEN201107-202005

T=14.775

main41231-37580iWU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC201107-202005

T=14.800

main41231-37590iWU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC201107-202005

T=14.825

main41231-37600iXZU710..CBU201107-202005

T=14.850

main41231-37610iWU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC201107-202005

T=14.875

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

mainS373411560iXZU710..CBU201107-202005

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90033-66039iWU710,720,XZU710,720..85T201107-202005

main90366-55054iXZU710..CBU201107-201906

main90366-55089iWU710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC201906-202005

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-37020iWU710,720..85T201107-201412

sub41301-37021

main41301-37021iWU710,720,XZU710,720..85T201412-202005

main41301-37040iWU700,710,720,XZU710,720..MTM..(65T,75T)..(GCC,GEN)201107-201905

main41301-37090iWU710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC201905-202005

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-37010iWU710,720,XZU710,720..85T201107-202005

main41315-37020iXZU710..CBU201107-202005

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-37010iXZU710..CBU201107-202005

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-37021iWU710,720,XZU710,720..85T201107-202005

main41331-37040iXZU710..CBU201107-202005

41341PINION, REAR DIFFERENTIAL

main41341-37021iWU710,720,XZU710,720..85T201107-202005

main41341-37030iXZU710..CBU201107-202005

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-37010iWU710,720,XZU710,720..85T201107-202005

main41351-37020iXZU710..CBU201107-202005

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-37020iWU710,720,XZU710,720..85T201107-202005

T=2.0

main41361-37030iXZU710,720,730..EUR201107-202005

T=2.0

41371SPIDER, REAR DIFFERENTIAL

main41371-37010iWU710,720,XZU710,720..85T201107-202005

main41371-37030iXZU710,720,730..EUR201107-202005

41991CCAUTION PLATE, REAR DIFFERENTIAL

main41991-37010iWU700,710,720..65T..GCC201107-201709

main41991-37020iWU710,720,XZU710,720..85T201107-201709

main41991-37070iXZU710,720,730..EUR201306-201512

main41991-37080iXZU710,720..MTM..(65T,75T)..GCC201108-201709

main41991-37090iXZU710..CBU201107-201505

main41991-37100iWU720..75T;WU710..LHD..GEN;WU710..RHD..65T201107-201709

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.833

main41991-37110iWU710..RHD..75T201107-201709

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =6.167

mainS765531430iXZU710,720..85T201709-202005

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571

mainS765531430iWU710..65T..GCC201709-202005

REAR DIFFERENTIAL-13 INCH, FINAL GEAR RATIO =5.571

mainS765531450iWU720..75T;WU710..LHD..GEN;WU710..RHD..65T201709-202005

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.833

mainS765531460iWU710,720,XZU710,720..85T201709-202005

mainS765531510iWU710..RHD..75T201709-202005

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =6.167

mainS765534020iXZU710,720..MTM..(65T,75T)..GCC201709-202005

mainS765535620iXZU710,720..GEN201911

9003101165

main90031-01165

9003101192

main90031-01192

9003105098

main90031-05098

9003119102

main90031-19102

9003170110

main90031-70110

9003201155

main90032-01155

9003301069

main90033-01069

9003365002

main90033-65002

9003366040

main90033-66040

9003520024

main90035-20024

9017930003

main90179-30003

34 parts on this diagram · 4 diagrams in section
