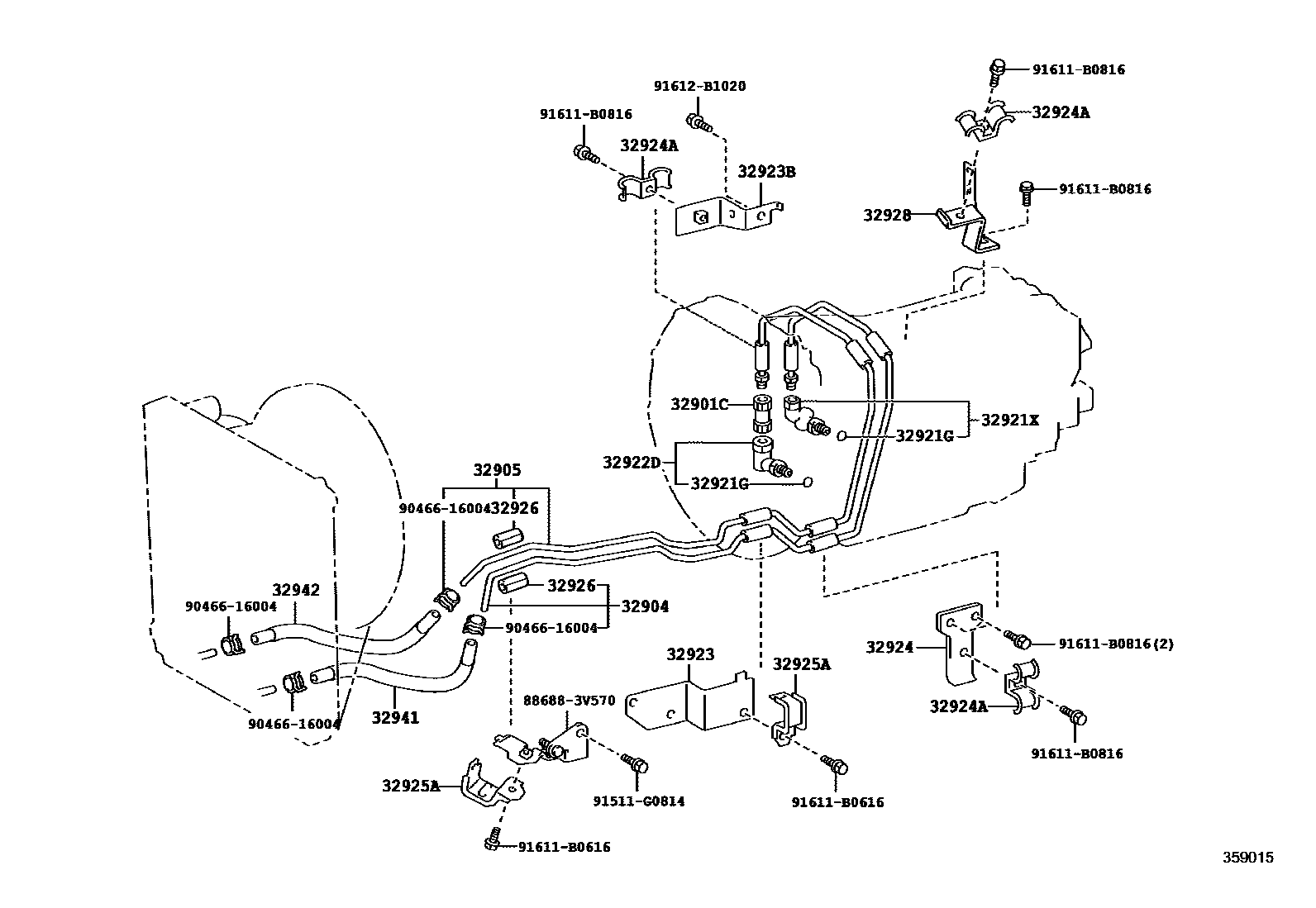

OIL COOLER & TUBE (ATM)

32901CUNION SUB-ASSY, OIL COOLER

main32901-37030iXZU710..CBU201107-201505

32904TUBE SUB-ASSY, OIL COOLER INLET, NO.1

main32904-37161iXZU710..CBU201107-201505

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

main32905-37162iXZU710..CBU201107-201505

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iXZU710..CBU201107-201505

32921XUNION OR ELBOW, OIL COOLER INLET

main90407-20010iXZU710..CBU201107-201505

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90407-20009iXZU710..CBU201107-201505

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32927-37021iXZU710..CBU201107-201505

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-37011iXZU710..CBU201107-201505

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-37010iXZU710..CBU201107-201505

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-12076×3iXZU710..CBU201107-201505

32925ACLAMP, FLEXIBLE HOSE, NO.2

main32929-25020×2iXZU710..CBU201107-201505

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-60010×10iXZU710..CBU201107-201505

L=45,ID=12

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-37041iXZU710..CBU201107-201505

32941HOSE, OIL COOLER INLET, NO.1

main32941-37140iXZU710..CBU201107-201505

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-37020iXZU710..CBU201107-201505

886883V570BRACKET, COOLER DIAPHRAGM

main88688-3V570

9046616004

main90466-16004

91511G0814

main91511-G0814

91611B0616

main91611-B0616

91611B0816

main91611-B0816

91612B1020

main91612-B1020

21 parts on this diagram · 1 diagram in section
