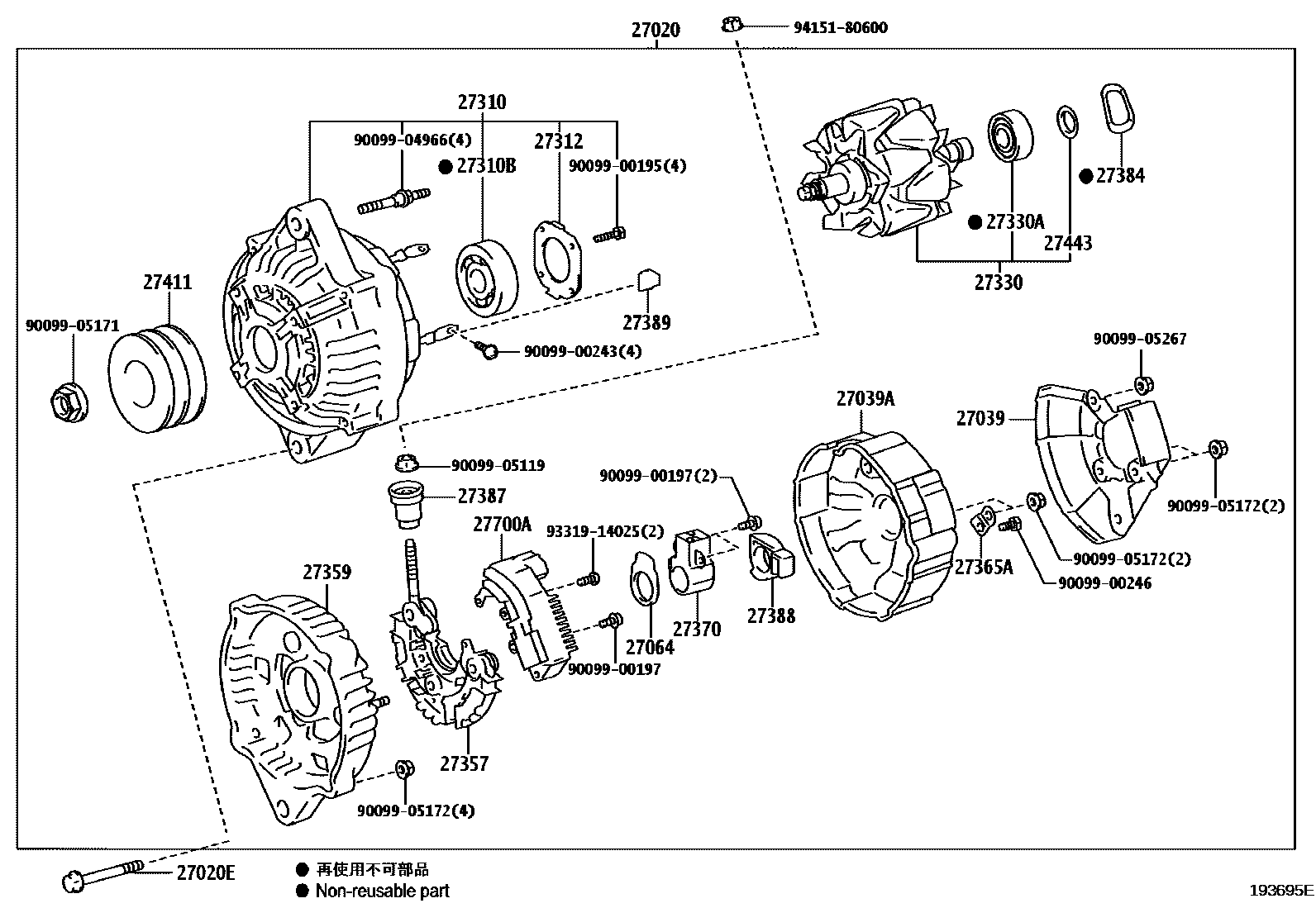

ALTERNATOR

0001 124V 60A 0004 124V 80A 0006 124V 30A 0010 124V 60A 0011 124V 80A

27020ALTERNATOR ASSY

main27040-E0030iW04D..WU700,710,720201305-202005

24V 30A

sub27040-E0031

subSH691-10610

main27060-78210iN04C..XZU710,720..MTM..GCC201107-202005

24V 60A

main27060-78300iN04C..XZU710,720..GEN201911

24V 60A

mainS270501112iW04D..WU700,710,720201107-201305

24V 30A

sub27040-E0030

27020EBOLT(FOR ALTERNATOR)

mainSZ10510067iN04C..XZU710..CBU201107-202005

27039COVER, ALTERNATOR REAR END

main27039-20160iN04C..XZU710,720..MTM..GCC201107-202005

27039ACOVER, ALTERNATOR REAR END, NO.2

main27039-58330iN04C..XZU710..CBU201107-202005

27064SEAL, ALTERNATOR PLATE

main27064-42010iN04C..XZU710..CBU201107-202005

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-EV010iN04C..XZU710,720..GEN201107-202005

mainS273101451iW04D..WU700,710,720201107-202005

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10219iN04C..XZU710,720,730201107-201505

main90099-10226iN04C..XZU710,720..GEN201505-202005

mainS282521830iW04D..WU700,710,720201107-201305

subSZ371-20003

mainSZ37120003iW04D..WU700,710,720201305-202005

27312PLATE, RETAINER

main27312-42010iN04C..XZU710,720..GEN201107-202005

mainS273121500iW04D..WU700,710,720201107-202005

27330ROTOR ASSY, ALTERNATOR

main27330-17240iN04C..XZU710..CBU201107-202005

mainS273301990iW04D..WU700,710,720201107-202005

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140iN04C..XZU710..CBU201107-202005

mainS282521530iW04D..WU700,710,720201107-202005

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-17080iN04C..XZU710,720,730..EUR201107-202005

27359FRAME, ALTERNATOR RECTIFIER END

main27359-58050iN04C..XZU710,720,730..EUR201107-202005

mainS273592441iW04D..WU700,710,720201107-202005

27365APLATE, RECTIFIER

main27365-55080iN04C..XZU710,720,730..EUR201107-202005

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060iN04C..XZU710..CBU201107-202005

mainS273701360iW04D..WU700,710,720201107-202005

27384WASHER

main27384-50030iN04C..XZU710,720,730..EUR201107-202005

27387INSULATOR, TERMINAL

main27387-42021iN04C..XZU710..CBU201107-202005

mainS273891310iW04D..WU700,710,720201107-202005

27388COVER, ALTERNATOR BRUSH

main27388-46220iN04C..XZU710..CBU201107-202005

mainS273881280iW04D..WU700,710,720201107-202005

27389INSULATOR, TERMINAL

main27389-42010iN04C..XZU710..CBU201107-202005

mainS273891320iW04D..WU700,710,720201107-202005

27411PULLEY, ALTERNATOR

main27411-32020iN04C..XZU710,720..GEN201911

mainS274311350iW04D..WU700,710,720201107-202005

mainS274311800iN04C..XZU710..CBU201107-202005

27443COVER, ALTERNATOR BEARING

main27443-63020iN04C..XZU710..CBU201107-202005

mainS271331070iW04D..WU700,710,720201107-202005

27700AREGULATOR ASSY, GENERATOR

main27700-78210iN04C..XZU710..CBU201107-201904

sub27702-78300

main27702-78300iN04C..XZU710,720..MTM..GCC201904-202005

mainS277001450iW04D..WU700,710,720201107-202005

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9009905267

main90099-05267

9331914025

main93319-14025

9415180600

main94151-80600

32 parts on this diagram · 5 diagrams in section
