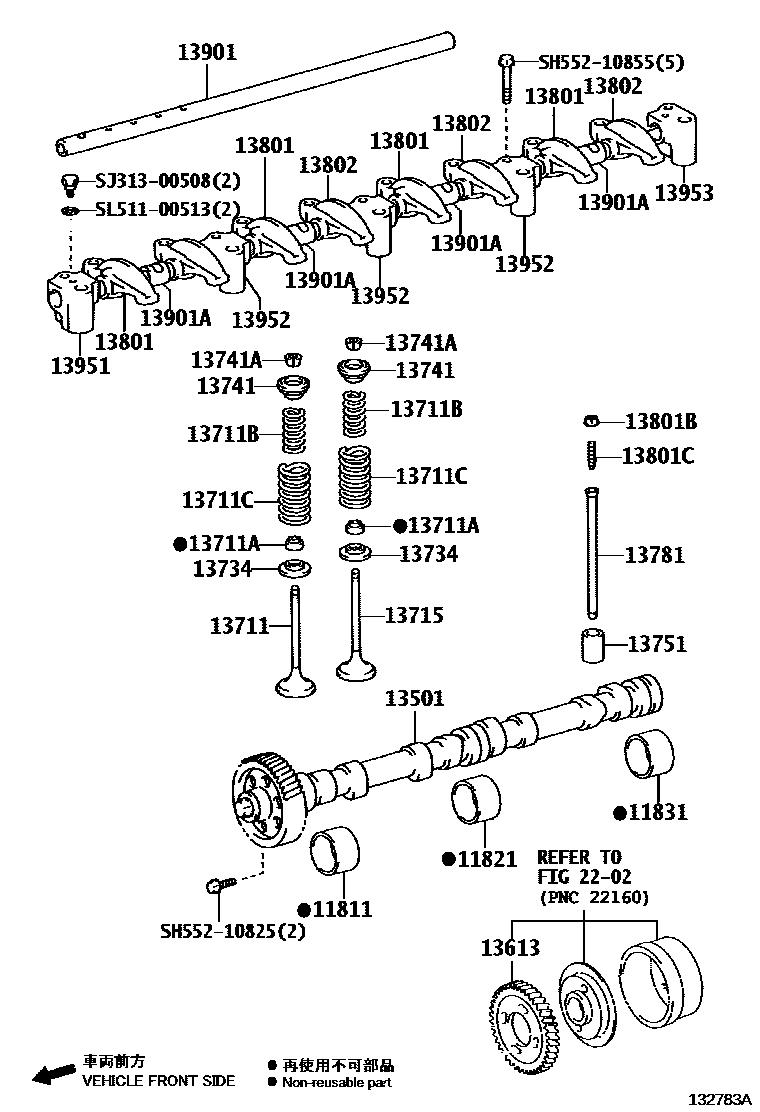

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

11811BEARING, CAMSHAFT, NO.1

main11811-E0030iN04C..XZU710,720,730..EUR201107-202005

11821BEARING, CAMSHAFT, NO.2

main11821-E0020iN04C..XZU710..CBU201107-202005

11831BEARING, CAMSHAFT, NO.3

main11831-E0020iN04C..XZU710,720..MTM..GCC201107-202005

13501CAMSHAFT SUB-ASSY

main13501-E0030iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-201108

sub13501-E0480

main13501-E0410iW04D..WU710,720..LHD..(75T,85T)201107-201108

sub13501-E0520

main13501-E0480iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201108-202005

main13501-E0520iW04D..WU710,720..LHD..(75T,85T)201108-201608

13613GEAR, INJECTION PUMP DRIVE

main13613-78152iN04C..XZU710,720..GEN201911

main13613-E0150iW04D..WU710,720..LHD..(75T,85T)201107-202005

main13613-E0170iN04C..XZU710..CBU201107-201901

main13613-E0220iN04C..XZU710,720..MTM..GCC201901-201908

sub13613-E0222

main13613-E0222iN04C..XZU710,720..MTM..GCC201908-202005

mainS136132180iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

13711VALVE, INTAKE

mainS137111443iW04D..WU700,710,720201107-202005

mainS137111800iN04C..XZU710,720,730..EUR201107-202005

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

mainS137191510iW04D..WU700,710,720201107-202005

13711BSPRING, COMPRESSION(FOR INNER)

mainS137311690iN04C..XZU710,720..GEN201107-202005

mainS137321570iW04D..WU700,710,720201107-202005

13711CSPRING, COMPRESSION(FOR OUTER)

mainS137311670iW04D..WU700,710,720201107-202005

13715VALVE, EXHAUST

mainS137151251iW04D..WU700,710,720201107-202005

mainS137151870iN04C..XZU710,720,730..EUR201107-202005

13734SEAT, VALVE SPRING

main13734-E0050iW04D..WU710,720201912-202005

mainS137341140iW04D..WU700,710,720201107-201911

sub13734-E0050

mainS137351460iN04C..XZU710,720,730..EUR201107-202005

13741RETAINER, VALVE SPRING

mainS137351440iW04D..WU700,710,720201107-202005

13741ALOCK, VALVE SPRING RETAINER

mainSZ91026010iW04D..WU700,710,720201107-202005

mainSZ91026013iN04C..XZU710..CBU201107-202005

13751LIFTER, VALVE

main13751-E0040iW04D..WU700,710,720201107-202005

13781ROD, VALVE PUSH

mainS137811350iW04D..WU700,710,720201107-202005

mainS137811500iN04C..XZU710..CBU201107-202005

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13811-78030iN04C..XZU710,720..MTM..GCC201905-202005

main13811-E0090iW04D..WU700,710,720201107-202005

main13811-E0190iN04C..XZU710..CBU201107-201905

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

mainS137881030iN04C..XZU710..CBU201107-202005

13801CSCREW, VALVE ADJUSTING

mainS137871161iW04D..WU700,710,720201107-202005

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13811-78060iN04C..XZU710,720..MTM..GCC201905-202005

main13811-E0100iW04D..WU700,710,720201107-202005

main13811-E0200iN04C..XZU710..CBU201107-201905

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-78030iN04C..XZU710,720..GEN201905-202005

main13901-E0030iN04C..XZU710..CBU201107-201905

sub13901-78030

mainS139011190iW04D..WU700,710,720201107-202005

13901ABUSH(FOR VALVE ROCKER SHAFT)

mainSZ91029043iW04D..WU700,710,720201107-202005

13951SUPPORT, VALVE ROCKER, NO.1

main13951-78070iN04C..XZU710,720..MTM..GCC201905-202005

NO.2:REFER ILLUST.

main13951-78100iN04C..XZU710,720..MTM..GCC201905-202005

NO.1:REFER ILLUST.

main13951-78110iN04C..XZU710,720..MTM..GCC201905-202005

NO.3:REFER ILLUST.

main13951-E0040iN04C..XZU710..CBU201107-201905

NO.2

sub13951-78070

main13951-E0050iN04C..XZU710,720..MTM..GCC201107-201905

NO.1

sub13951-78110

main13951-E0060iW04D..WU700,710,720201107-202005

13952SUPPORT, VALVE ROCKER, NO.2

main13951-E0070iW04D..WU700,710,720201107-202005

13953SUPPORT, VALVE ROCKER, NO.3

main13951-E0080iW04D..WU700,710,720201107-202005

2202

SH55210825

mainSH552-10825

SH55210855

mainSH552-10855

SJ31300508

mainSJ313-00508

SL51100513

mainSL511-00513

29 parts on this diagram · 3 diagrams in section
