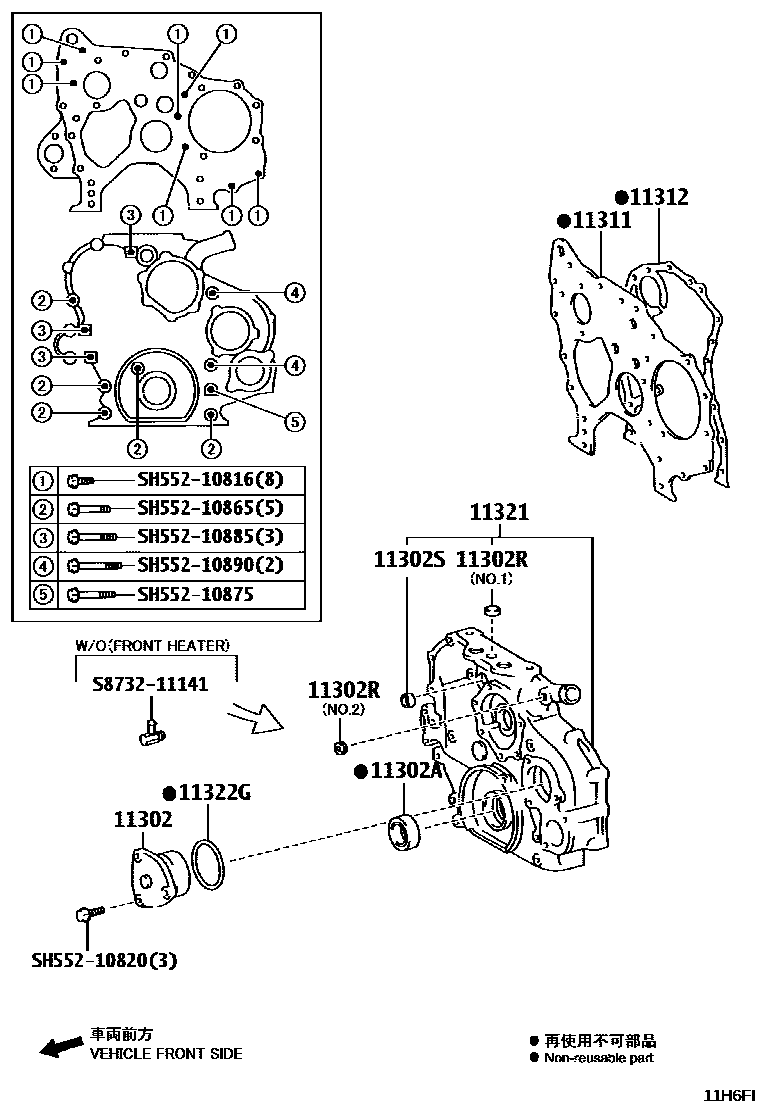

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

mainS136901210iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

mainS136901220iW04D..WU710,720..LHD..(75T,85T)201107-202005

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

mainSZ31358001iW04D..WU700,710,720201107-201403

mainSZ31358002iN04C..XZU710..CBU201404-202005

11302RPLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)

mainSN49002611iW04D..WU710..GEN;W04D..WU700,720..5F;W04D..WU710..85T..CBU201107-202005

NO.2

mainSZ33122003iW04D..WU700,710,720201107-202005

NO.1

11302SPLUG, TIGHT, NO.2(FOR TIMING GEAR COVER)

mainSZ33132002iW04D..WU700,710,720201107-202005

11311PLATE, FRONT END

main11301-E0101iN04C..XZU710,720..GEN201902-202005

mainS113111261iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

mainS113111591iW04D..WU710,720..LHD..(75T,85T)201107-202005

mainS114051090iN04C..XZU710,720..MTM..GCC201107-201902

sub11301-E0110

11312GASKET, FRONT END PLATE

mainS113121170iN04C..XZU710,720..MTM..GCC201107-202005

11321CASE, TIMING GEAR

main11310-78110iN04C..XZU710,720..GEN201911-202408

sub11310-78111

main11310-78111iN04C..XZU710,720..GEN202409

main11310-E0050iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-201210

sub11310-E0051

main11310-E0051iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201210-202005

main11310-E0060iW04D..WU710,720..LHD..(75T,85T)201107-201210

sub11310-E0061

main11310-E0061iW04D..WU710,720..LHD..(75T,85T)201210-202005

main11310-E0141iN04C..XZU710201107-201208

sub11310-E0150

main11310-E0150iN04C..XZU710,720,730201208-201312

sub11310-E0151

main11310-E0151iN04C..XZU710,720..MTM..GCC201312-201904

sub11310-E0152

main11310-E0152iN04C..XZU710,720..MTM..GCC201905-201907

sub11310-E0153

main11310-E0153iN04C..XZU710,720..MTM..GCC201908-202005

sub11310-78080

sub12511-E0021

subSH552-11035

11322GRING, O(FOR TIMING GEAR COVER)

mainSZ30181002iW04D..WU700,710,720201107-202005

S873211141

mainS8732-11141

SH55210816

mainSH552-10816

SH55210820

mainSH552-10820

SH55210865

mainSH552-10865

SH55210875

mainSH552-10875

SH55210885

mainSH552-10885

SH55210890

mainSH552-10890

15 parts on this diagram · 4 diagrams in section
