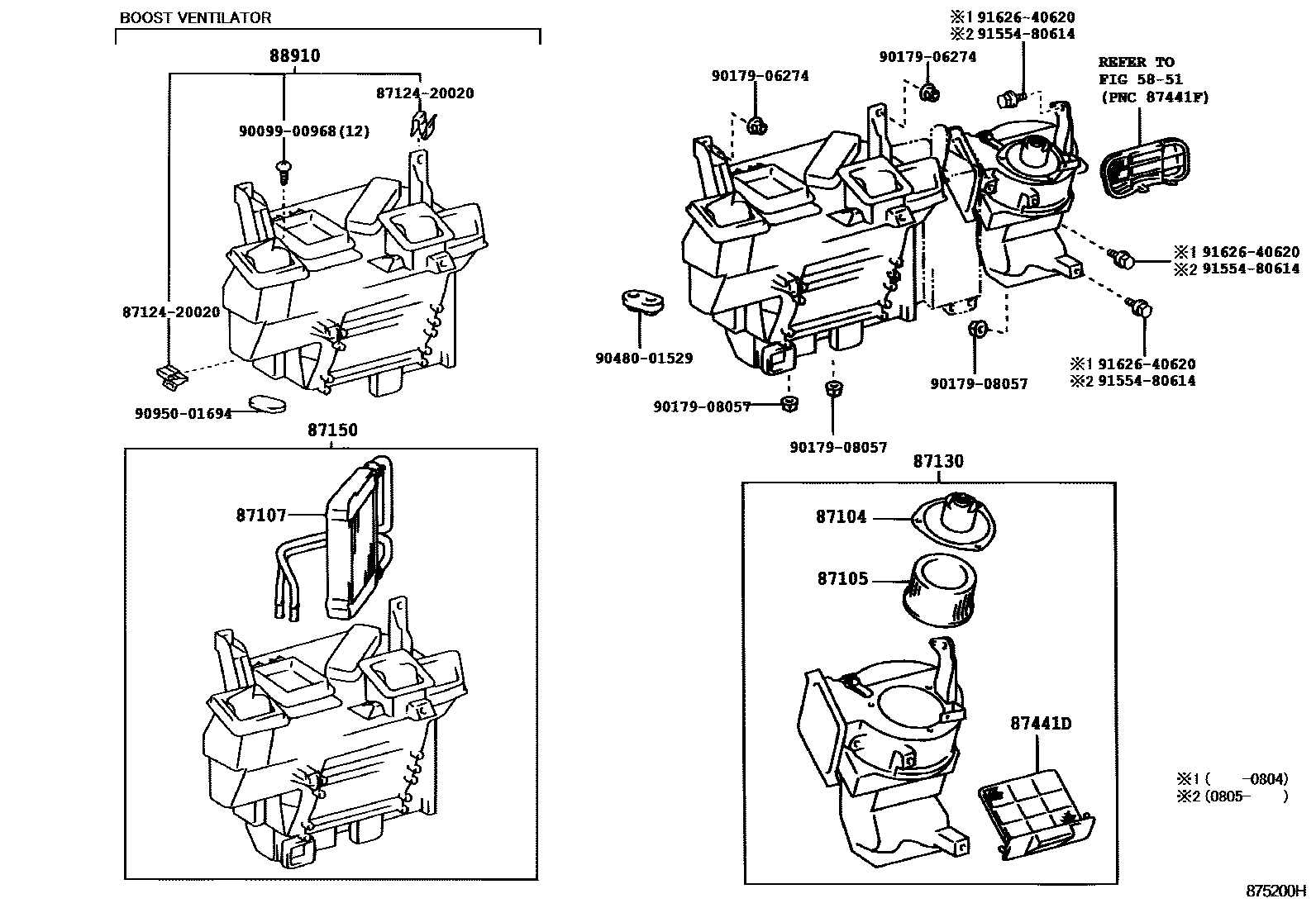

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-37140iWU410,420,XZU404,412,414,420,422,424,430,434..RHD200110-200802

main87104-37150iBU410,420,WU410,XZU412,414,415,422,424,425,434,435..LHD..(DCR,DSL,TD)200110-200802

87105FAN SUB-ASSY, HEATER BLOWER

main87105-37010iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200610-201208

main87105-37030iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-25050iWU410,420,XZU420,430..SA200610-200802

main87107-25060iWU41#,422,XZU41#,42#,435,439..LHD200803-201208

main87107-37040iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200610

main87107-37061iXZU413,423..6F..GEN200610-200803

87130BLOWER ASSY, HEATER, FRONT

main87130-37100iWU410,420,XZU404,412,414,420,422,424,430,434..RHD200110-200802

main87130-37101iWU410..RHD201008-201106

main87130-37110iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200610-201208

87150RADIATOR ASSY, HEATER

main87150-37170iXZU413,423..6F..GEN200610-200803

main87150-37230iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200610

main87150-37310iWU410..65T..SA;WU420,XZU423,433..SA200610-200812

main87150-37330iWU410..RHD..GEN200801-201106

main87150-37340iXZU412,422200801-200802

87441DFILTER, HEATER AIR, NO.2

main87441-37031iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208

88910VENTILATOR ASSY, BOOST

main88910-37030iWU410,XZU412,422..RHD..GEN200212-200610

main88910-37040iWU410,XZU412,414,422,424..LHD..5F200212-200610

8712420020CLAMP, HEATER

main87124-20020

9009900968

main90099-00968

9017906274

main90179-06274

9017908057

main90179-08057

9048001529

main90480-01529

9095001694

main90950-01694

9155480614

main91554-80614

9162640620

main91626-40620

16 parts on this diagram · 2 diagrams in section
