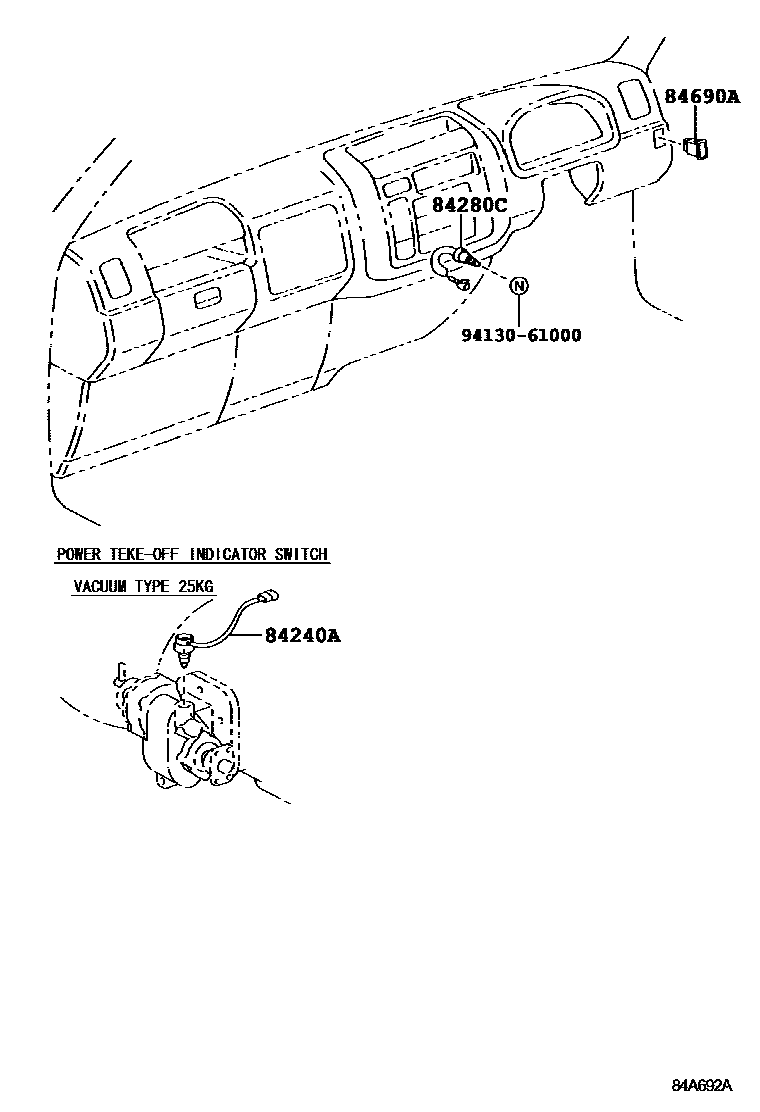

POWER TAKE-OFF CONTROL

0001 1 0002 1 0003 1 0004 1 0006 1

84240ASWITCH ASSY, POWER TAKE-OFF INDICATOR

main84240-37020iBU410,420200110-200701

VACUUM TYPE 25KG

main84240-37021iWU410,420..SA; XZU412,420,422,430200703-200802

VACUUM TYPE 15KG; VACUUM TYPE 25KG

main84240-37022iWU410201012-201106

VACUUM TYPE 15KG

main84240-93100iWU410,420..SA200212-200702

VACUUM TYPE 15KG

mainSU00200790iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

ELECTRIC TYPE, 20KG

84280CSWITCH ASSY, POWER TAKE-OFF CLUTCH

main88280-37010iXZU404,414,424,434..RHD200110-200610

main88280-37020iXZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)200212-200610

84690ASWITCH ASSY, POWER TAKE-OFF INDICATOR

main84690-37010iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

9413061000

main94130-61000

4 parts on this diagram · 5 diagrams in section
