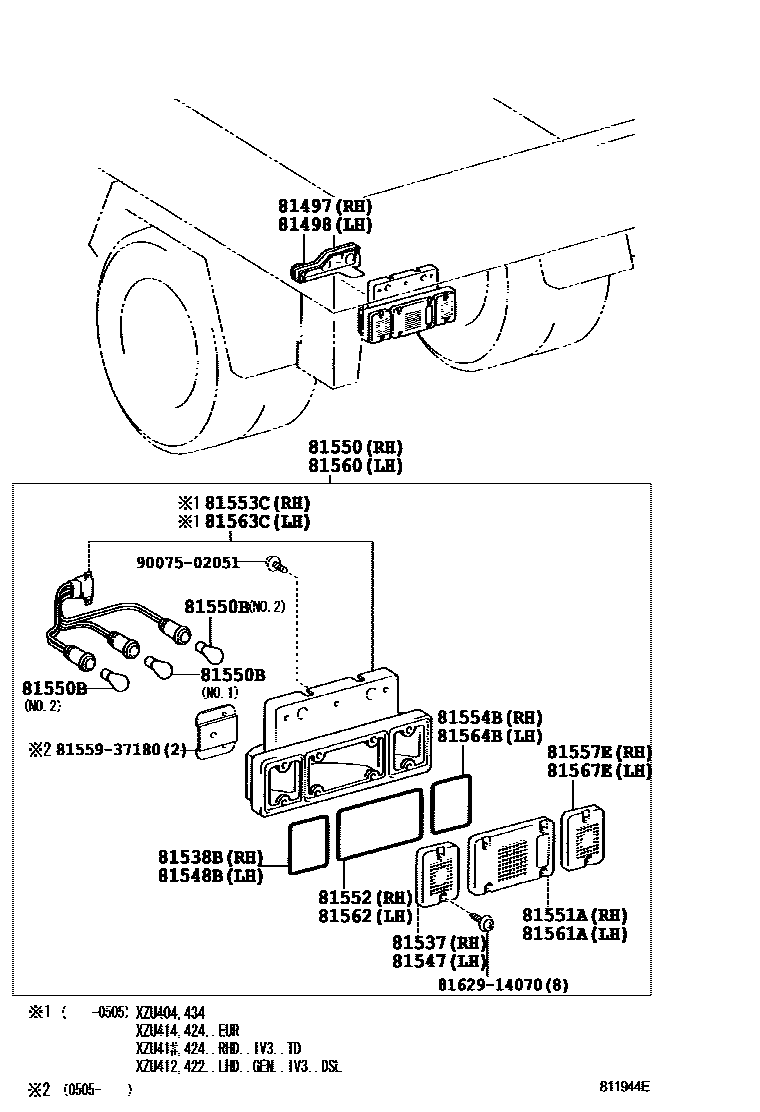

REAR COMBINATION LAMP

0001 1TYPE A 0002 1TYPE B 0003 1TYPE B

81497COVER, REAR COMBINATION LAMP, RH

main81497-37010iWU410,XZU404,41#,422,424,434..(ARL,EUR,GCC,GEN)..IV3200110-200307

sub81497-37011

main81497-37011iXZU412,422..5F..IV3;WU410,XZU404,414,424,434..(ARL,GCC,GEN)..IV3200307-200708

81498COVER, REAR COMBINATION LAMP, LH

main81498-37010iWU410,XZU404,41#,422,424,434..(ARL,EUR,GCC,GEN)..IV3200110-200307

sub81498-37011

main81498-37011iXZU415,425,435200307-200708

81537LENS, REAR COMBINATION LAMP, NO.3 RH

main81537-37120iXZU414,424,434..EUR200110-200708

81538BGASKET, REAR COMBINATION LAMP, NO.3 RH

main81538-37120iXZU424..LHD..GEN;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU41#,422..LHD..(55T,65T,85T)..IV3;BU410,420,WU410..(GCC,GEN,TAIW)..IV200110-200708

81547LENS, REAR COMBINATION LAMP, NO.3 LH

main81547-37130iXZU415,425,435200110-200708

81548BGASKET, REAR COMBINATION LAMP, NO.3 LH

main81538-37120iXZU414,424,434..EUR200110-200708

81550LAMP ASSY, REAR COMBINATION, RH

main81550-37050iXZU422..CBU;XZU422..GEN..IV3;WU410,XZU412..GEN;XZU414,424..LHD..GEN;WU410,XZU412..GCC..CBU200212-200505

TYPE B:REFER ILLUST.

main81550-37110iXZU412..RHD..IV3..TD200212-200505

ALGERIA SPEC,TYPE A:REFER ILLUST.

main81550-37110iXZU412..RHD..IV3..TD200212-200505

SINGAPORE SPEC,TYPE A:REFER ILLUST.

main81550-37110iXZU404,434;XZU414,424..RHD;XZU414,424..EUR200110-200505

TYPE A:REFER ILLUST.

main81550-37120iXZU412,422..5F..IV3;XZU414,424..LHD..GEN;BU410,420,WU410..(GCC,GEN,TAIW)..IV3200212-200505

TYPE A:REFER ILLUST.

main81550-37140iXZU412,422..LHD..GEN..CBU200212-200505

ALGERIA SPEC,TYPE B:REFER ILLUST.

main81550-37140iXZU412,422..LHD..GEN..CBU200212-200505

SINGAPORE SPEC,TYPE B:REFER ILLUST.

main81550-37140iWU410,420,XZU420,430..SA200304-200505

TYPE B:REFER ILLUST.

main81550-37180iXZU412..LHD..GEN..IV3..DSL200505-200610

SINGAPORE SPEC,TYPE A:REFER ILLUST.

main81550-37180iXZU414,424,434..EUR200505-200708

TYPE A:REFER ILLUST.

main81550-37180iXZU404,414,424,434..RHD200505-200610

ALGERIA SPEC,TYPE A:REFER ILLUST.

main81550-37220iXZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU200505-201106

TYPE B:REFER ILLUST.

main81550-37230iXZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3200505-200701

TYPE A:REFER ILLUST.

main81550-37240iXZU412,422..LHD..GEN..CBU200505-200610

SINGAPORE SPEC,TYPE B:REFER ILLUST.

main81550-37240iXZU412..CBU..TD200505-201106

ALGERIA SPEC,TYPE B:REFER ILLUST.

main81550-37240iWU410,420,XZU420,430..SA200505-200802

TYPE B:REFER ILLUST.

main81550-37260iWU410..65T..SA;WU420,XZU415,417,419,423,425,427,429,433,435,439..(EUR,SA,TAIW)..(DCRTK,DSL)200707-201208

TYPE B:REFER ILLUST.

main81550-37260iWU412,422..75T..GEN..IV3200707-201106

ALGERIA SPEC,TYPE B:REFER ILLUST.

main81550-37270iWU41#,422,XZU413,423..(GCC,GEN)..IV3200707-201106

TYPE B:REFER ILLUST.

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014iXZU414,424,434..EUR200110-201208

24V 21W,NO.2

main90981-16015iXZU423..SA;WU410..65T..SA;WU412..75T..GEN;WU42#,XZU415,417,419,425,427,429,433,435,439..(EUR,GEN,SA,TAIW)..(DCRTJ,DCRTK,DSL)200110-201208

24V 21/5W,NO.1

main90981-16027iWU41#,422,XZU413,423..GCC,GEN200212-201106

24V 25/10W,NO.1

main99134-11250iXZU412,422..6F200212-200802

24V 25W,TYPE B:REFER TO ILLUSTRATION,NO.2

main99134-11250iWU41#,422,XZU413,423..GCC,GEN200610-201106

24V 25W,NO.2

main99134-12250iBU410,420200212-200701

24V 25W,TYPE A:REFER TO ILLUSTRATION,NO.2

sub99134-11250

81551LENS, REAR COMBINATION LAMP, RH

main81551-60442iWU410..65T..SA;WU420,XZU415,417,419,423,425,427,429,433,435,439..(EUR,SA,TAIW)..(DCRTK,DSL)200304-201208

main81551-60442iXZU412,422..LHD..GEN..CBU200212-201106

ALGERIA SPEC

main81551-60442iXZU412,422..LHD..GEN..CBU200212-200610

SINGAPORE SPEC

main81551-60451iXZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU200212-201106

81551ALENS, REAR COMBINATION LAMP, RH

main81551-37110iXZU415,425,435200110-200708

main81551-37110iXZU412,422..LHD..GEN..IV3..DSL200212-200610

ALGERIA SPEC

main81551-37110iXZU412,422..LHD..GEN..IV3..DSL200212-200610

SINGAPORE SPEC

main81551-37120iXZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3200212-200701

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-37120iXZU412,422..LHD..GEN..IV3..DSL;XZU404,412,414,424,434..RHD..IV3..TD200110-200708

TYPE A:REFER ILLUST.

main81552-95400iXZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU200212-201208

TYPE B:REFER ILLUST.

81553CBODY, REAR COMBINATION LAMP, RH

main81553-37110iXZU404,434;XZU414,424..EUR;XZU41#,424..RHD..IV3..TD;XZU412,422..LHD..GEN..IV3..DSL200110-200505

81554BGASKET, REAR COMBINATION LAMP BODY, NO.2 RH

main81554-37120iXZU414,424,434..EUR200110-200708

81557ELENS, REAR COMBINATION LAMP, RH NO.2

main81557-37120iXZU415,425,435200110-200708

81560LAMP ASSY, REAR COMBINATION, LH

main81560-37070iXZU422..CBU;XZU422..GEN..IV3;WU410,XZU412..GEN;XZU414,424..LHD..GEN;WU410,XZU412..GCC..CBU200212-200505

TYPE B:REFER ILLUST.

main81560-37120iXZU412,422..LHD..GEN..IV3..DSL200110-200505

ALGERIA SPEC,TYPE A:REFER ILLUST.

main81560-37120iXZU412,422..LHD..GEN..IV3..DSL200110-200505

SINGAPORE SPEC,TYPE A:REFER ILLUST.

main81560-37120iXZU412..RHD..IV3..TD200110-200505

TYPE A:REFER ILLUST.

main81560-37130iXZU412,422..5F..IV3;XZU414,424..LHD..GEN;BU410,420,WU410..(GCC,GEN,TAIW)..IV3200212-200505

TYPE A:REFER ILLUST.

main81560-37150iXZU412,422..LHD..GEN..CBU200212-200505

ALGERIA SPEC,TYPE B:REFER ILLUST.

main81560-37150iXZU412,422..LHD..GEN..CBU200212-200505

SINGAPORE SPEC,TYPE B:REFER ILLUST.

main81560-37150iWU410,420,XZU420,430..SA200304-200505

TYPE B:REFER ILLUST.

main81560-37180iXZU414,424,434..EUR200505-200708

TYPE A:REFER ILLUST.

main81560-37180iXZU404,414,424,434..RHD200505-200610

ALGERIA SPEC,TYPE A:REFER ILLUST.

main81560-37180iXZU404,414,424,434..RHD200505-200610

SINGAPORE SPEC,TYPE A:REFER ILLUST.

main81560-37220iXZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU200505-201106

TYPE B:REFER ILLUST.

main81560-37230iXZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3200505-200701

TYPE A:REFER ILLUST.

main81560-37240iXZU412,422..LHD..GEN..CBU200505-200610

SINGAPORE SPEC,TYPE B:REFER ILLUST.

main81560-37240iXZU412..CBU..TD200505-201106

ALGERIA SPEC,TYPE B:REFER ILLUST.

main81560-37240iWU410,420,XZU420,430..SA200505-200802

TYPE B:REFER ILLUST.

main81560-37270iWU410..65T..SA;WU420,XZU415,417,419,423,425,427,429,433,435,439..(EUR,SA,TAIW)..(DCRTK,DSL)200707-201208

TYPE B:REFER ILLUST.

main81560-37270iWU412,422..75T..GEN..IV3200707-201106

ALGERIA SPEC,TYPE B:REFER ILLUST.

main81560-37280iWU41#,422,XZU413,423..(GCC,GEN)..IV3200707-201106

TYPE B:REFER ILLUST.

81561LENS, REAR COMBINATION LAMP, LH

main81561-60372iXZU412,422..LHD..GEN..CBU200212-201106

ALGERIA SPEC

main81561-60372iXZU412,422..LHD..GEN..CBU200212-200610

SINGAPORE SPEC

main81561-60372iWU410..65T..SA;WU420,XZU415,417,419,423,425,427,429,433,435,439..(EUR,SA,TAIW)..(DCRTK,DSL)200304-201208

main81561-60381iXZU412,422..6F200212-201106

81561ALENS, REAR COMBINATION LAMP, LH

main81561-37120iXZU412..RHD..IV3..TD200212-200610

ALGERIA SPEC

main81561-37120iXZU414,424,434..EUR200110-200708

main81561-37120iXZU412,422..LHD..GEN..IV3..DSL200212-200610

SINGAPORE SPEC

main81561-37130iBU410,420200212-200701

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-37120iXZU414,424,434..EUR200110-200708

TYPE A:REFER ILLUST.

main81552-95400iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200212-201208

TYPE B:REFER ILLUST.

81563CBODY, REAR COMBINATION LAMP, LH

main81563-37120iXZU404,434;XZU414,424..EUR;XZU41#,424..RHD..IV3..TD;XZU412,422..LHD..GEN..IV3..DSL200110-200505

81564BGASKET, REAR COMBINATION LAMP BODY, NO.2 LH

main81554-37120iXZU414,424,434..EUR200110-200708

81567ELENS, REAR COMBINATION LAMP, LH NO.2

main81557-37120iXZU414,424,434..EUR200110-200708

8155937180MOULDING, REAR COMBINATION LAMP, RH

main81559-37180

8162914070

main81629-14070

9007502051

main90075-02051

24 parts on this diagram · 3 diagrams in section
