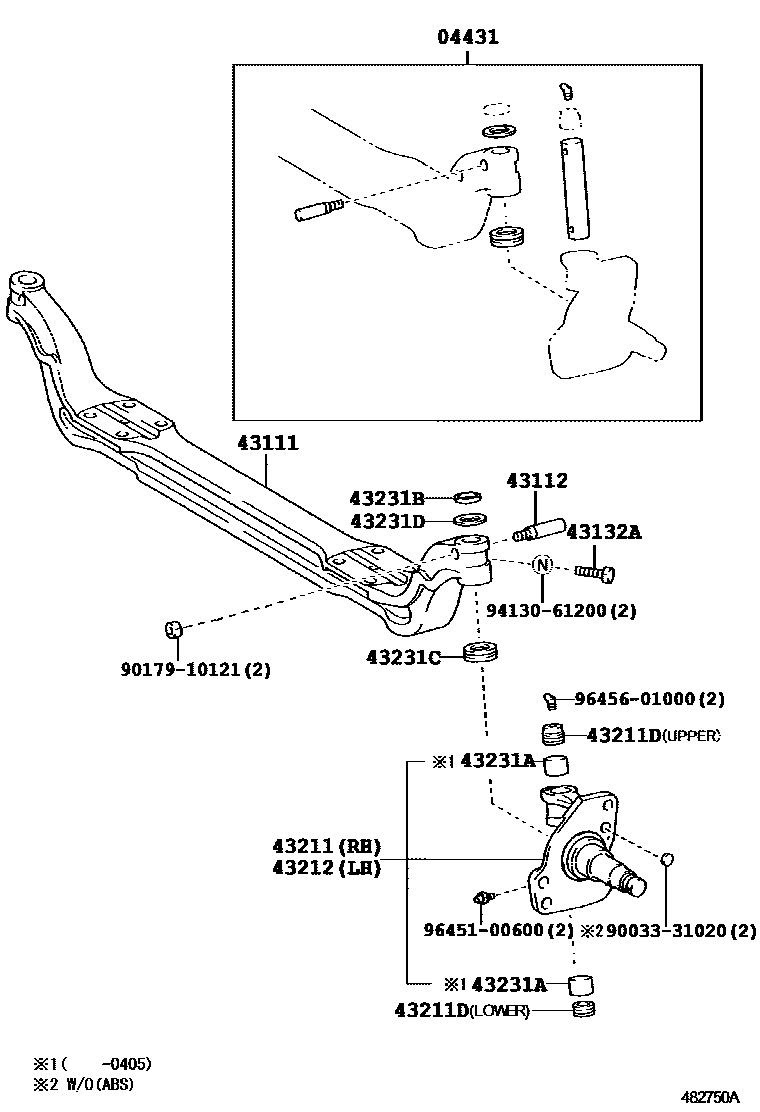

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0005 1 0008 1

04431PIN KIT, STEERING KNUCKLE KING

main04431-36070iXZU404,41#,424..55T200110-200510

sub04431-36071

main04431-36080iXZU414,424..75T..GEN200110-200212

main04431-36180iXZU404,412,414,424..55T200510-200610

main04431-37091iXZU414,424..6F;XZU424..LHD..GEN;BU410,420,WU410,420,XZU412,420,422,43#..65T,75T,85T200110-200606

sub04431-37240

main04431-37210iWU410..GCC;XZU413..55T200610-200801

main04431-37280iXZU415,425,435200608-200708

main04431-37390×2iWU410..GCC;XZU413..55T200801-200904

main04431-37400×2iXZU412,422..6F;WU410,420,XZU420,430..SA200606-200802

main04431-37440×2iWU410..GCC;XZU413..55T200904-201106

sub0443C-37020

main04431-37450×2iWU412,422;WU410,XZU41#,42#,43#..(65T,75T)..(EUR,GEN)200904-201208

sub0443C-37030

43111I BEAM, FRONT AXLE

main43111-37050iXZU404,41#,424..55T200110-200302

main43111-37051iXZU404,412,414,424..55T200302-200610

main43111-37060iXZU424..EUR;XZU424..RHD..75T..GEN;XZU414,434..75T..(EUR,GEN)200110-200310

main43111-37080iXZU412,422..6F200401-200610

43112PIN, KING PIN LOCK

main43112-36020×2iWU410..GCC;XZU413..55T200610-201106

main43112-36030×2iBU410,420200110-200701

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-12001×2iXZU404,412,414,424..55T200110-200610

43211KNUCKLE, STEERING, RH

main43201-37031iXZU404,414,424..RHD..55T200110-200609

main43201-37041iXZU412..55T;XZU414..LHD..GEN200212-200610

main43201-37060iXZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN)200212-200311

main43201-37061iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200610-201106

main43201-37080iWU410,420,XZU420,430..SA200110-200802

main43201-37100iXZU415,425,435200608-200708

main43201-37110iWU410..GCC;XZU413..55T201002-201106

W(DISC BRAKE)

main43201-37120iWU410..GCC;XZU413..55T200610-201106

43211DPLUG (FOR STEERING KNUCKLE)

main90345-33003×2iXZU404,412,414,424..55T200110-200610

LOWER

main90345-33004×2iXZU404,412,414,424..55T200110-200610

UPPER

43212KNUCKLE, STEERING, LH

main43202-37031iXZU404,414,424..RHD..55T200110-200609

main43202-37041iXZU412..55T;XZU414..LHD..GEN200212-200610

main43202-37060iXZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN)200212-200311

main43202-37061iBU410,420200311-200701

main43202-37080iXZU414,424,434..RHD..(65T,75T,85T)200110-200610

main43202-37100iXZU415,425,435200608-200708

main43202-37110iWU410..GCC;XZU413..55T201002-201106

W(DISC BRAKE)

main43202-37120iWU410..GCC;XZU413..55T200610-201106

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90384-35002×2iXZU414,424..75T..GEN200110-200212

UPPER

main90384-35003×2iXZU414,424..75T..GEN200110-200212

LOWER

main90384-35013×2iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..(65T,75T,85T)..(DCRTJ,DCRTK,DSL)200610-201208

UPPER SIDE

main90384-35014×2iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..(65T,75T,85T)..(DCRTJ,DCRTK,DSL)200610-201208

LOWER SIDE

main90999-73086×4iXZU404,412,414,424..55T200110-200610

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main90312-28003×2iXZU404,412,414,424..55T200110-200610

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-28001×2iWU410..GCC;XZU413..55T200610-201106

main90367-35001×2iXZU414,424,434..EUR200110-200608

43231DSHIM (FOR KING PIN)

main90032-09022iBU410,420200110-200701

T=1.9

main90032-09023iBU410,420200110-200701

T=2.0

main90032-09024iXZU414,424,434..EUR200110-200608

T=2.1

main90032-09025iXZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)200110-200610

T=2.2

main90032-09026iXZU415,425,435200110-200708

T=2.3

main90032-09027iXZU415,425,435200110-200708

T=2.4

main90032-09028iXZU412,422..6F;WU410,420,XZU420,430..SA200110-200802

T=2.5

main90032-09029iXZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)200110-200610

T=2.6

main90564-28001×2iXZU404,412,414,424..55T200110-200610

T=1.9

main90564-28002×2iXZU404,412,414,424..55T200110-200610

T=2.0

main90564-28003×2iXZU404,412,414,424..55T200110-200610

T=2.1

main90564-28004iWU410..GCC;XZU413..55T200610-201106

T=2.2

main90564-28005iWU410..GCC;XZU413..55T200610-201106

T=2.3

main90564-28006iWU410..GCC;XZU413..55T200610-201106

T=2.4

main90564-28007iWU410..GCC;XZU413..55T200610-201106

T=1.7

main90564-28008×2iXZU404,412,414,424..55T200110-200610

T=1.8

9003331020

main90033-31020

9017910121

main90179-10121

9413061200

main94130-61200

9645100600

main96451-00600

9645601000

main96456-01000

16 parts on this diagram · 4 diagrams in section
