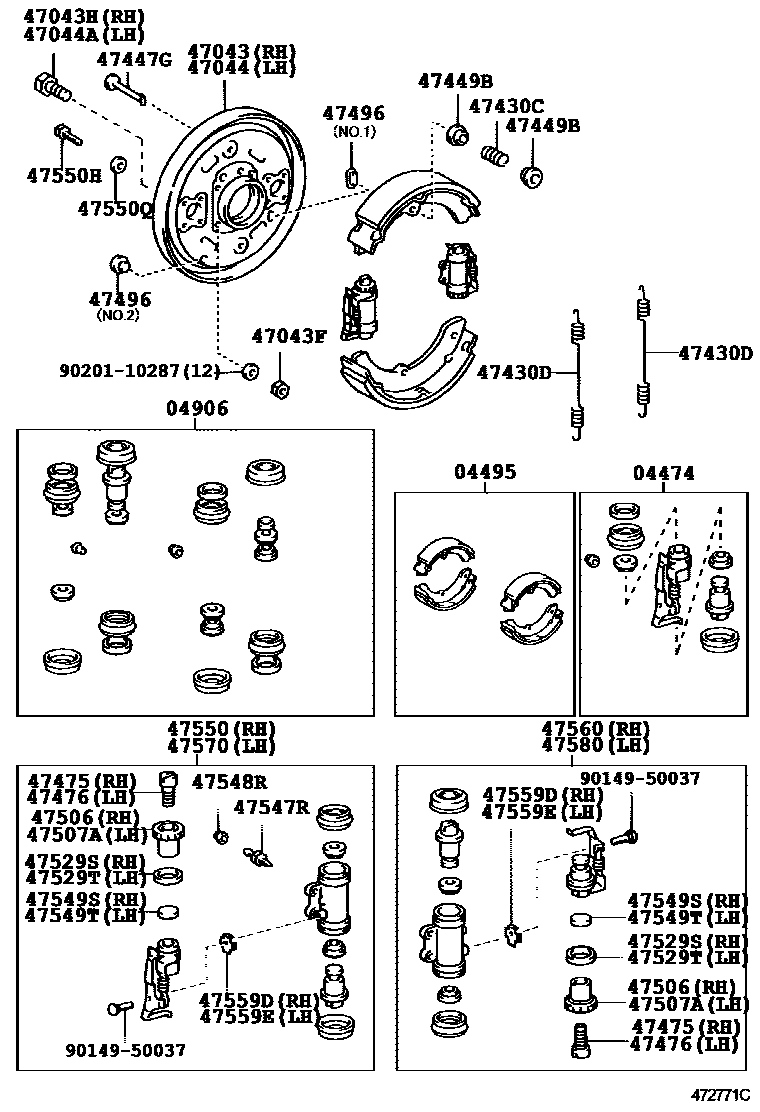

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0004 1MANUAL ADJUSTER 0006 1 0009 1AUTO ADJUSTER 0011 1W/O(ABS)

04474CYLINDER KIT, REAR WHEEL

main04468-37180iBU410,420..75T;XZU412,422,424..5F..85T200212-200701

LH

main04468-37200iXZU414..65T,75T;XZU424..RHD..(75T,85T);WU410,420,XZU420,430,434..ARL,SA200212-200802

LH

main04474-36020iXZU412..55T;XZU414..LHD..GEN200212-200610

RH

main04474-36030iXZU412..55T;XZU414..LHD..GEN200212-200610

LH

main04474-36040iXZU404,414,424..55T200110-200212

RH

main04474-36041iWU410..GCC;XZU413..55T200212-201106

RH

main04474-36050iXZU404,414,424..55T200110-200212

LH

main04474-36051iWU410..GCC;XZU413..55T200212-201106

LH

main04474-37150iXZU414,424,434..EUR200110-200212

RH

main04474-37160iXZU414,424..75T..GEN200110-200212

LH

main04474-37170iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200212-201106

RH

main04474-37180iBU410,420..65T;XZU424..LHD..75T..GEN;WU410,XZU412,422..(65T,75T)..(GCC,GEN)200212-201106

LH

main04474-37330iBU410,420..75T;XZU412,422,424..5F..85T200212-200701

RH

main04474-37350iXZU414..65T,75T;XZU424..RHD..(75T,85T);WU410,420,XZU420,430,434..ARL,SA200212-200802

RH

04495SHOE KIT, REAR BRAKE

main04494-36290iXZU412..55T;XZU414..LHD..GEN200110-201106

MARK NBK LN519

main04495-37021iXZU414,424..75T..GEN200110-200305

MARK NBK D2160

main04495-37032iBU410,420200212-201106

MARK NBK D2177

main04495-37040iWU410..GCC;XZU413..55T200212-201106

MARK NBK D9227

main04495-37060iWU410,XZU420,430..(75T,85T)..SA200406-200812

MARK NBK D2177

main04495-37160iXZU414..65T,75T;XZU424..RHD..(75T,85T);WU410,420,XZU420,43#..ARL,SA200212-200406

MARK AK LA514

04906CUP KIT, REAR WHEEL CYLINDER

main04906-36170iWU410..GCC;XZU413..55T200610-201106

main04906-36180iXZU404,414,424..55T200110-200212

main04906-36250iXZU412..55T;XZU414..LHD..GEN200212-200610

main04906-37080iXZU414,424,434..EUR200110-200212

MANUAL ADJUSTER

main04906-37090iBU410,420..65T;XZU424..LHD..75T..GEN;WU410,XZU412,422..(65T,75T)..(GCC,GEN)200212-200802

main04906-37101iWU410,420,XZU423,433..SA200802-200812

main04906-37210iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200610-201106

main04906-37220iBU410,420..75T;XZU412,422,424..5F..85T200212-200701

main04906-37240iWU410,420,XZU420,430..SA200305-200807

main04906-37240iXZU414..65T,75T;XZU424,434..RHD..(75T,85T)200212-200610

AUTO ADJUSTER

main04906-37250iXZU404,414,424..RHD..55T200212-200610

main04906-37420iWU410..GCC;XZU413..55T201002-201106

W/O(ABS)

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-36160iWU410..GCC;XZU413..55T200212-201106

main47043-37060iXZU404,414,424..RHD..55T200110-200610

main47043-37060iWU410..GCC;XZU413..55T201002-201106

W/O(ABS)

main47043-37091iWU410,420,XZU423,433..SA200110-200812

main47043-37101iBU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)200212-201106

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94130-01002iWU410..GCC;XZU413..55T200110-201106

main94130-01441iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T200110-201106

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90101-14032iXZU412,422..6F;WU410,420,XZU420,430..SA200110-201106

main90114-10063iWU410..GCC;XZU413..55T200110-201106

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-36160iXZU412..55T;XZU414..LHD..GEN200212-201106

main47044-37060iXZU404,414,424..RHD..55T200110-200610

main47044-37060iWU410..GCC;XZU413..55T201002-201106

W/O(ABS)

main47044-37091iWU410,420,XZU423,433..SA200110-200812

main47044-37101iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200212-201106

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90101-14032iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T200110-201106

main90114-10063iXZU404,414,424..55T200110-201106

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iXZU404,412,414,424..55T200110-201106

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12085iWU410,XZU420,430..(75T,85T)..SA200212-200812

main90507-29006iWU410..GCC;XZU413..55T200110-201106

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-60010iXZU404,412,414,424..55T200110-201106

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iXZU404,412,414,424..55T200110-201106

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36060iWU410..GCC;XZU413..55T200212-201106

main47553-36070iXZU404,414,424..55T200110-200610

main47553-36070iWU410..GCC;XZU413..55T201002-201106

W/O(ABS)

main47553-37050iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

main47553-37070iBU410,420..65T200212-201003

main47553-37110iXZU414,424,434..EUR200212-200812

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36060iWU410..GCC;XZU413..55T200212-201106

main47554-36070iXZU404,414,424..55T200110-200610

main47554-36070iWU410..GCC;XZU413..55T201002-201106

W/O(ABS)

main47554-37030iXZU412,422..6F200212-201003

main47554-37050iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

main47554-37110iWU410,420,XZU423,433..SA200212-200812

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010iXZU404,414,424..55T200110-200212

NO.1

main47491-36020iWU410..GCC;XZU413..55T200212-201106

NO.1

main47491-37090iXZU414,424,434..RHD..(65T,75T,85T)200110-201106

NO.1

main47491-37090iXZU412,422..6F200212-200802

main47492-28010iXZU404,412,414,424..55T200110-201106

NO.2

main47496-37020iWU410,420,XZU423,433..SA200110-200812

NO.2

47506NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47506-36020iXZU404,414..55T..ARL200110-201106

main47506-37110iWU410,XZU420,430..(75T,85T)..SA200212-200812

47507ANUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47507-36020iXZU404,414,424..55T200110-201106

main47507-37110iXZU414,424,434..RHD..(65T,75T,85T)200212-200812

47529SSEAL, REAR BRAKE ADJUST NUT DUST, RH

main47529-36010iXZU404,414,424..55T200110-201106

47529TSEAL, REAR BRAKE ADJUST NUT DUST, LH

main47529-36010iXZU404,414,424..55T200110-201106

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27020iWU410..GCC;XZU413..55T200110-201106

main47547-37130iXZU414,424..RHD..75T..GEN200110-201106

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iBU410,420200110-201106

47549SSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH

main47549-37091iXZU404,414..55T..ARL200110-201106

main47549-37110iXZU414,424,434..RHD..(65T,75T,85T)200212-200812

47549TSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH

main47549-37091iXZU404,414,424..55T200110-201106

main47549-37110iXZU414,424,434..EUR200212-200812

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-37111iXZU404,414,424..55T200110-200209

main47550-37112iXZU404,414,424..RHD..55T200209-200610

main47550-37112iWU410..GCC;XZU413..55T201002-201106

W/O(ABS)

main47550-37120iXZU412..55T;XZU414..LHD..GEN200212-201106

main47550-37130iXZU414,424..75T..GEN200110-200305

main47550-37140iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200212-201002

main47550-37141iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

main47550-37150iWU420;WU410..65T..SA200212-200812

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-10127iXZU404,412,414,424..55T200110-201106

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-10287iXZU404,412,414,424..55T200110-201106

47559DSPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH

main47559-36010iXZU404,414,424..55T200110-201106

47559ESPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH

main47559-36010iXZU404,414,424..55T200110-201106

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-36200iXZU412..55T;XZU414..LHD..GEN200212-201106

main47560-37040iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200212-201002

main47560-37041iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

main47560-37081iXZU404,414,424..55T200110-200209

main47560-37082iXZU404,414,424..RHD..55T200209-200610

main47560-37082iWU410..GCC;XZU413..55T201002-201106

W/O(ABS)

main47560-37100iXZU414,424,434..EUR200110-200305

main47560-37180iWU410,420,XZU423,433..SA200212-200812

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-37071iXZU404,414,424..55T200110-200209

main47570-37072iWU410..GCC;XZU413..55T201002-201106

W/O(ABS)

main47570-37072iXZU404,414,424..RHD..55T200209-200610

main47570-37080iXZU412..55T;XZU414..LHD..GEN200212-201106

main47570-37090iXZU414,424..75T..GEN200110-200305

main47570-37100iXZU412,422..6F200212-201002

main47570-37101iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

main47570-37110iXZU414,424,434..RHD..(65T,75T,85T)200212-200812

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-36200iXZU412..55T;XZU414..LHD..GEN200212-201106

main47580-37030iXZU412,422..6F200212-201002

main47580-37031iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

main47580-37071iXZU404,414,424..55T200110-200209

main47580-37072iXZU404,414,424..RHD..55T200209-200610

main47580-37072iWU410..GCC;XZU413..55T201002-201106

W/O(ABS)

main47580-37090iXZU414,424,434..EUR200110-200305

main47580-37170iWU410,XZU420,430..(75T,85T)..SA200212-200812

9014950037

main90149-50037

9020110287

main90201-10287

33 parts on this diagram · 6 diagrams in section
