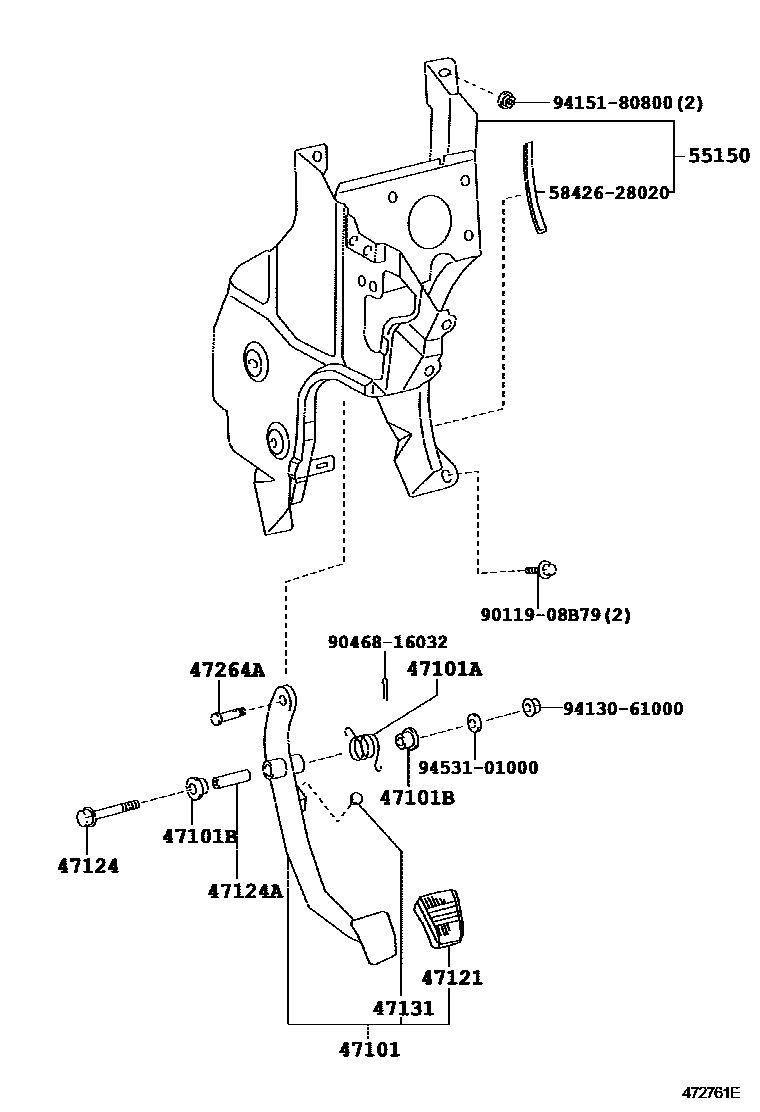

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-37050iWU410,420,XZU420,430..SA200110-200802

main47101-37080iXZU404,414..55T..ARL200212-200610

W/O(ABS)

main47101-37090iXZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)200212-200610

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35039iXZU419,429,439201110-201208

main90508-35324iXZU412,422..6F;WU410,420,XZU420,430..SA200110-200802

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iXZU414,424,434..EUR200110-200608

47121PAD, BRAKE PEDAL

main31321-14020iXZU414,424,434..EUR200110-200608

47124SHAFT, BRAKE PEDAL

main91112-61070iXZU412,422..6F;WU410,420,XZU420,430..SA200110-200802

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iXZU414,424,434..EUR200110-200608

47264APIN(FOR PUSH ROD)

main90240-10037iXZU415,425,435200110-200708

55150BRACKET ASSY, PEDAL

main55150-37052iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200610-201208

main55150-37073iWU410,420,XZU404,41#,42#,43#..RHD200110-200401

main55150-37074iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-200908

main55150-37110iXZU404,414..55T..ARL200212-200401

W/O(ABS)

main55150-37111iXZU404,414..55T..ARL200402-200610

W/O(ABS)

main55150-37230iWU410..RHD200908-201106

5842628020NUT, BATTERY SERVICE HOLE COVER

main58426-28020

9011908B79

main90119-08B79

9046816032

main90468-16032

9413061000

main94130-61000

9415180800

main94151-80800

9453101000

main94531-01000

15 parts on this diagram · 1 diagram in section
