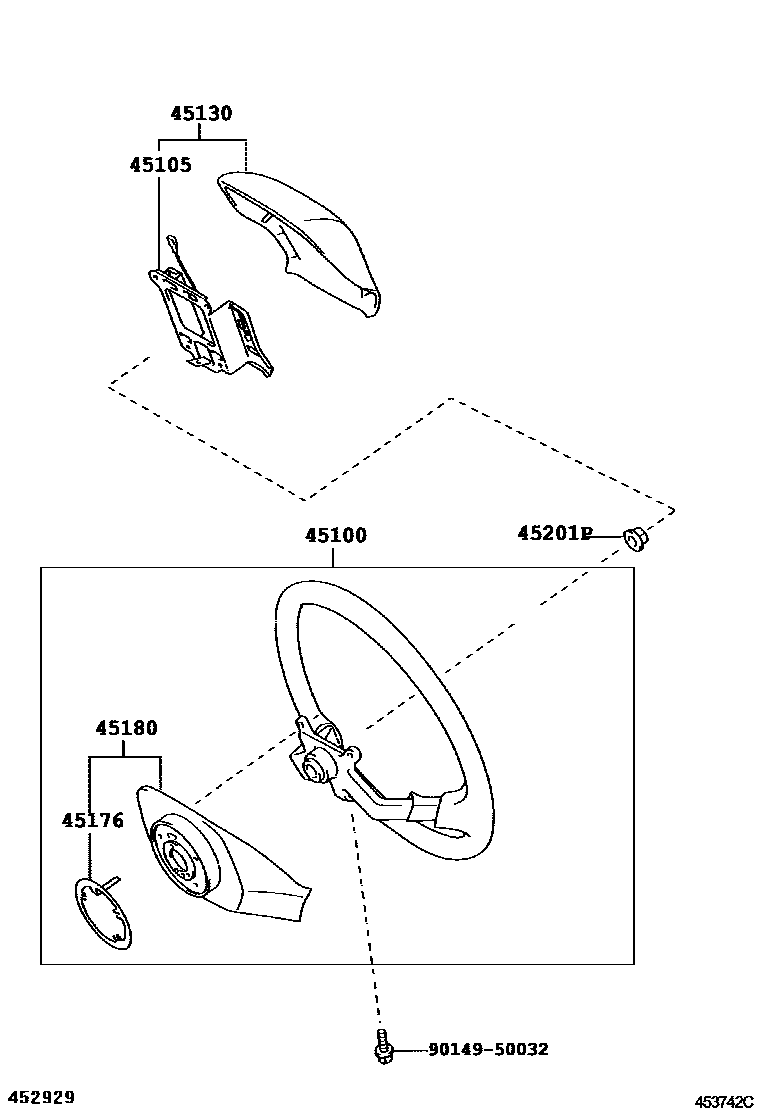

STEERING WHEEL

0001 1W/O(SRS AIR BAG) 0002 1W(SRS AIR BAG)

45100WHEEL ASSY, STEERING

main45100-36140-B0iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

2-SPOKE,URETHANE,MD.CHARCOAL,TRIM1#

main45100-37040-B1iXZU404,414,424,434..ARL200212-200610

2-SPOKE,URETHANE,W(SRS AIR BAG),MD.CHARCOAL,TRIM1#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-36030iXZU414,424,434..EUR200110-200608

45130BUTTON ASSY, HORN

main45130-36120-B0iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208

MD.CHARCOAL,TRIM1#

main45130-37140-B0iXZU404,414,424,434..ARL200212-200610

W(SRS AIR BAG),MD.CHARCOAL,TRIM1#

45176RING, HORN CONTACT

main45176-36020iXZU414,424,434..EUR200110-200608

45180COVER SUB-ASSY, STEERING WHEEL

main45180-36030-B0iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iXZU414,424,434..EUR200110-200608

9014950032

main90149-50032

7 parts on this diagram · 2 diagrams in section
