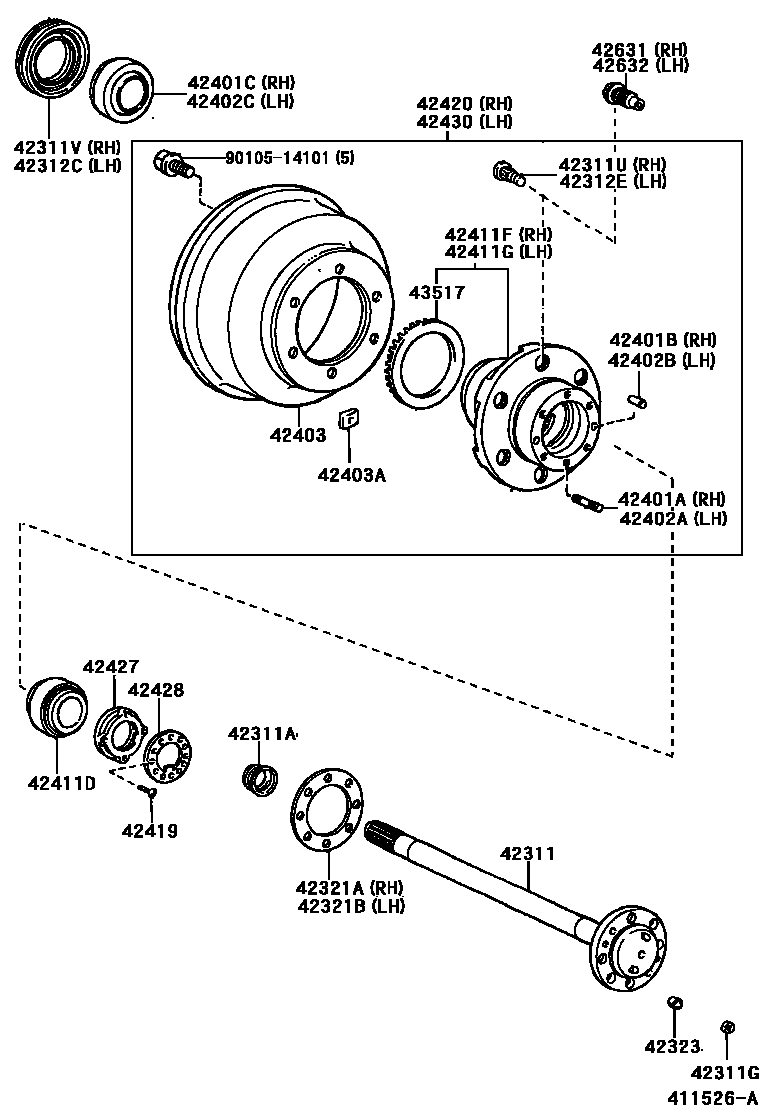

REAR AXLE SHAFT & HUB

0001 1 0002 1W/O(ABS) 0003 1 0005 1 0007 1 0008 1 0009 1

42311SHAFT, REAR AXLE

main42311-37130×2iWU410..GCC;XZU413..55T200610-201106

main42311-37140×2iBU410,420..65T200110-200701

main42311-37150×2iXZU412,422,424,434..85T200212-200610

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90033-11032×2iXZU414,424,434..EUR200110-200608

main90310-40001×2iWU410..GCC;XZU413..55T200610-201106

42311GNUT(FOR REAR AXLE SHAFT)

main90179-10067×16iWU410..GCC;XZU413..55T200610-201106

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02045×6iWU420;WU410..65T..SA200110-200801

main90942-02071×5iWU410..GCC;XZU413..55T200610-201106

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90033-11031iXZU414,424,434..EUR200110-200608

main90311-78001iWU410..GCC;XZU413..55T200610-201106

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90033-11031iXZU415,425,435200110-200708

main90311-78001iWU410..GCC;XZU413..55T200610-201106

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02046×6iXZU414,424,434..EUR200110-200608

main90942-02072×5iXZU404,412,414,424..55T200110-200610

42321AGASKET, REAR AXLE SHAFT, RH

main42321-37020iXZU404,412,414,424..55T200110-200610

42321BGASKET, REAR AXLE SHAFT, LH

main42321-37020iWU410..GCC;XZU413..55T200610-201106

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-36010×16iWU410..GCC;XZU413..55T200610-201106

42401ABOLT, STUD (FOR REAR AXLE HUB RH)

main90031-01163×10iWU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN)200110-200610

main90116-10191×8iXZU404,412,414,424..55T200110-200610

42401BPIN, STRAIGHT (FOR REAR AXLE HUB RH)

main90250-10055×2iXZU404,412,414,424..55T200110-200610

42401CBEARING (FOR REAR AXLE HUB INNER RH)

main90033-66030iWU410..75T..SA;XZU412,420,422,430..6F200110-200802

main90366-60012iWU410..GCC;XZU413..55T200610-201106

42402ABOLT, STUD (FOR REAR AXLE HUB LH)

main90031-01163×10iWU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN)200110-200610

main90116-10191×8iXZU404,412,414,424..55T200110-200610

42402BPIN, STRAIGHT (FOR REAR AXLE HUB LH)

main90250-10055×2iXZU404,412,414,424..55T200110-200610

42402CBEARING (FOR REAR AXLE HUB INNER LH)

main90033-66030iXZU415,425,435200110-200708

main90366-60012iXZU404,412,414,424..55T200110-200610

42403DRUM SUB-ASSY, REAR BRAKE

main42431-37080×2iWU410..GCC;XZU413..55T200610-201106

main42431-37101×2iWU420;WU410..65T..SA200110-200801

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iXZU414,424,434..EUR200110-200608

10G

main90937-01118iXZU414,424,434..EUR200110-200608

20G

main90937-01119iWU420;WU410..65T..SA200110-200801

30G

main90937-01120iXZU404,414..ARL;XZU414..75T..GEN;XZU414..LHD..GEN;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,422,434..ARL,GCC,GEN200110-200610

40G

main90937-01121iWU420;WU410..65T..SA200110-200801

50G

main90937-01122iWU410,XZU420,430..(75T,85T)..SA200110-200802

60G

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90033-66031×2iWU410..75T..SA;XZU412,420,422,430..6F200110-200802

main90366-55054×2iXZU404,412,414,424..55T200110-200610

42411FHUB, REAR AXLE, RH

main42401-37050iXZU415,425,435200608-200708

main42407-37020iXZU404,414,424..55T200110-200202

main42407-37021iXZU404,414,424..RHD..55T200202-200610

main42407-37030iWU410,XZU420,430..(75T,85T)..SA200110-200802

42411GHUB, REAR AXLE, LH

main42402-37050iXZU415,417,419,425,427,429,435,439..DCRTK200701-201208

main42408-37020iXZU404,414,424..55T200110-200202

main42408-37021iXZU404,414,424..RHD..55T200202-200610

main42408-37030iXZU414,424,434..EUR200110-200608

42419SCREW, REAR AXLE BEARING LOCK NUT

main90119-06199×6iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..(65T,75T,85T)..(DCRTJ,DCRTK,DSL)200610-201208

main93311-16012×4iWU410..GCC;XZU413..55T200610-201106

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-39085iXZU404,414,424..55T200110-200202

main42420-39086iXZU404,414,424..RHD..55T200202-200610

main42420-39106iXZU412..55T;XZU414..LHD..GEN;XZU404,414..55T..ARL200212-200610

W/O(ABS)

main42420-39115iXZU414,434..6F..ARL;XZU424..RHD..(75T,85T)200110-200610

main42420-39125iBU410,420200212-200701

main42430-39175iXZU415,417,419,425,427,429,435,439..DCRTK200701-201208

42427NUT, REAR AXLE BEARING LOCK

main42427-37020×2iWU410..GCC;XZU413..55T200610-201106

main42427-37030×2iBU410,420200110-200701

42428PLATE, REAR AXLE LOCK NUT

main42428-36020×2iWU410..GCC;XZU413..55T200610-201106

main42428-37010×2iWU410,XZU420,430..(75T,85T)..SA200110-200802

NO.1

main42428-37030×2iXZU412,422..6F200401-200802

NO.2

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-39085iXZU404,414,424..55T200110-200202

main42430-39086iXZU404,414,424..RHD..55T200202-200610

main42430-39106iXZU412..55T;XZU414..LHD..GEN;XZU404,414..55T..ARL200212-200610

W/O(ABS)

main42430-39115iWU410,420,XZU423,433..SA200802-200812

main42430-39125iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200610-201106

main42430-39185iXZU415,417,419,425,427,429,435,439..DCRTK200701-201208

42631BOLT, DOUBLE WHEEL STOP, RH

main42631-37020×6iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..(65T,75T,85T)..(DCRTJ,DCRTK,DSL)200610-201208

main42631-55031×5iXZU404,412,414,424..55T; XZU414,424,434..(65T,75T,85T)..(ARL,GEN);BU410,420,WU410,420,XZU412,415,420,422,425,430,435..65T,75T,85T200110-200609

42632BOLT, DOUBLE WHEEL STOP, LH

main42632-37020×6iBU410,420200610-200701

main42632-55031×6iXZU404,412,414,424..55T; XZU414,424,434..(65T,75T,85T)..(ARL,GEN);BU410,420,WU410,420,XZU412,415,420,422,425,430,435..65T,75T,85T200110-200609

43517ROTOR, SKID CONTROL, REAR

main43517-37010×2iXZU404,414,424..RHD..55T200110-200610

main43517-37020×2iXZU414,424,434..RHD..(65T,75T,85T)200110-200610

main43517-37030×2iXZU415,425,435200608-200708

9010514101

main90105-14101

30 parts on this diagram · 7 diagrams in section
