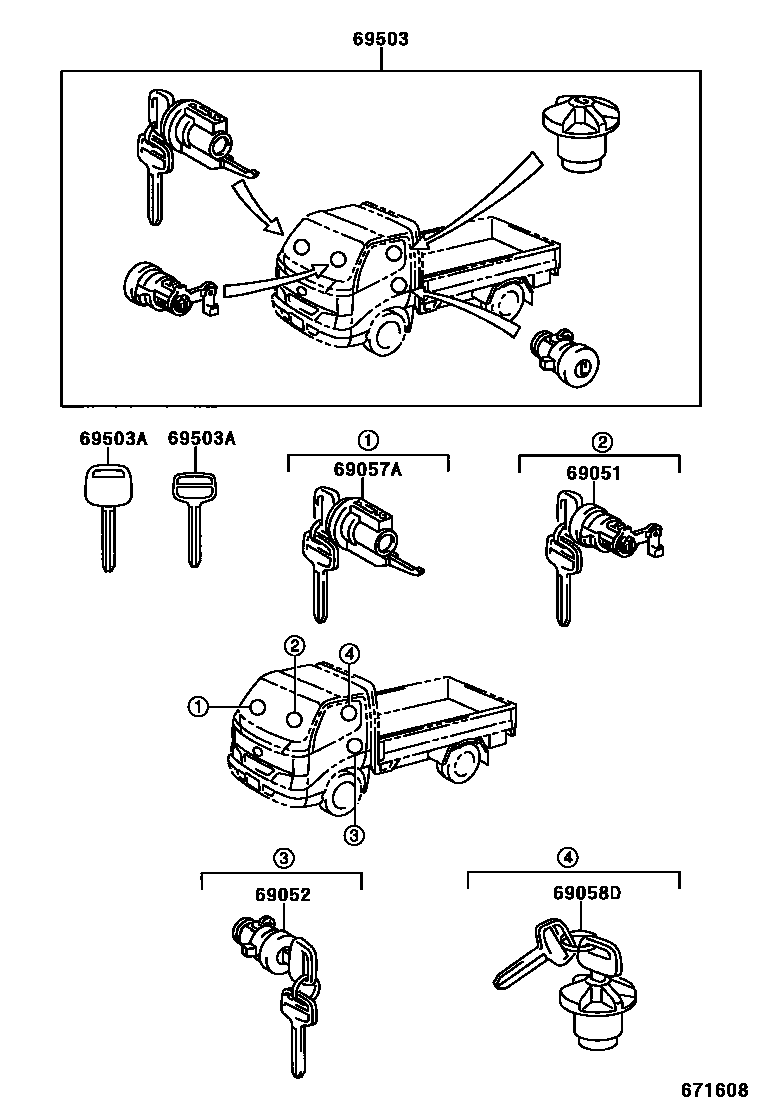

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-37060iXZU402,41#,420,430200010-200206

main69051-37080iXZU402,41#,420,430200010-200206

HINO

main69051-37090iXZU402,41#,420,430200010-200206

DAIHATSU

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-37100iXZU402,41#,420,430200010-200206

main69052-37120iXZU402,41#,420,430200010-200206

HINO

main69052-37130iXZU402,41#,420,430200010-200206

DAIHATSU

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-37110iXZU402,41#,420,430200010-200206

main69057-37120iXZU402,41#,420,430200010-200206

HINO

main69057-37130iXZU402,41#,420,430200010-200206

DAIHATSU

69058DCYLINDER & KEY SET, FUEL TANK FILLER

main69058-37050iXZU402,41#,420,430; XZU410,420,430200010-200206

W(SUB FUEL TANK)

main69058-37080iXZU402,41#,420,430; XZU410,420,430200010-200206

HINO; W(SUB FUEL TANK),HINO

main69058-37090iXZU402,41#,420,430; XZU410,420,430200010-200206

DAIHATSU; W(SUB FUEL TANK),DAIHATSU

69503CYLINDER SET, LOCK

main69005-37010iXZU402,41#,420,430200010-200206

main69005-37080iXZU402,41#,420,430200010-200206

HINO

main69005-37130iXZU402,41#,420,430200010-200206

DAIHATSU

main69005-37280iXZU410,420,430200010-200206

W(SUB FUEL TANK)

main69005-37290iXZU410,420,430200010-200206

W(SUB FUEL TANK),HINO

main69005-37300iXZU410,420,430200010-200206

W(SUB FUEL TANK),DAIHATSU

69503AKEY, BLANK

main90999-00185iXZU402,41#,420,430200010-200206

MASTER KEY,W(*68)

main90999-00186iXZU402,41#,420,430200010-200206

MASTER KEY

main90999-00222iXZU402,41#,420,430200010-200206

MASTER KEY,W(*68),DAIHATSU

main90999-00223iXZU402,41#,420,430200010-200206

MASTER KEY,DAIHATSU

main90999-00224iXZU402,41#,420,430200010-200206

MASTER KEY,W(*68),HINO

main90999-00225iXZU402,41#,420,430200010-200206

MASTER KEY,HINO

6 parts on this diagram · 1 diagram in section
